X79 DUAL Game Motherboard RAM 8G1 E5 2650 V2 CPU DDR3 Computer components PCgamer kit Intel Xeon TPM2.0 PCIE316 LGA2011 office
Hi there, our products work perfectly. Every unit is strictly tested before shipping, and all are 100% brand new.
Reliable Power Supply
Comes with a 24-pin main power connector, ensuring stable power delivery for your system's components.
Robust Memory Support
With dual DDR3 memory slots, this motherboard can handle up to 64GB of RAM, providing ample memory for intensive tasks and gaming.
High Compatibility
Supports Intel Xeon E Series CPU, ensuring seamless compatibility with a wide range of gaming and computing needs.
Advanced Connectivity
Equipped with dual PCI-E 3.0 slots and an M.2 SSD support, offering fast data transfer and expanded storage options.
Enhanced Network Performance
Features a high-speed RJ45 Ethernet port and onboard LAN, ideal for competitive gaming and streaming.
>>Please pay attention to the bundle options before purchasing. Buy a single motherboard. We do not send CPU and memory. Please check careful
Differences Between Packages:
Motherboard: 1*SY-X79 DUAL D3 AX
Motherboard+CPU: 1*SY-X79 DUAL D3 AX+1*E5 2650 V2 CPU
Motherboard+CPU+RAM: 1*SY-X79 D3 DUAL AX+1*E5 2650 V2 CPU+8G*1
Please confirm the differences between the packages before purchasing. If you mind, please do not place an order

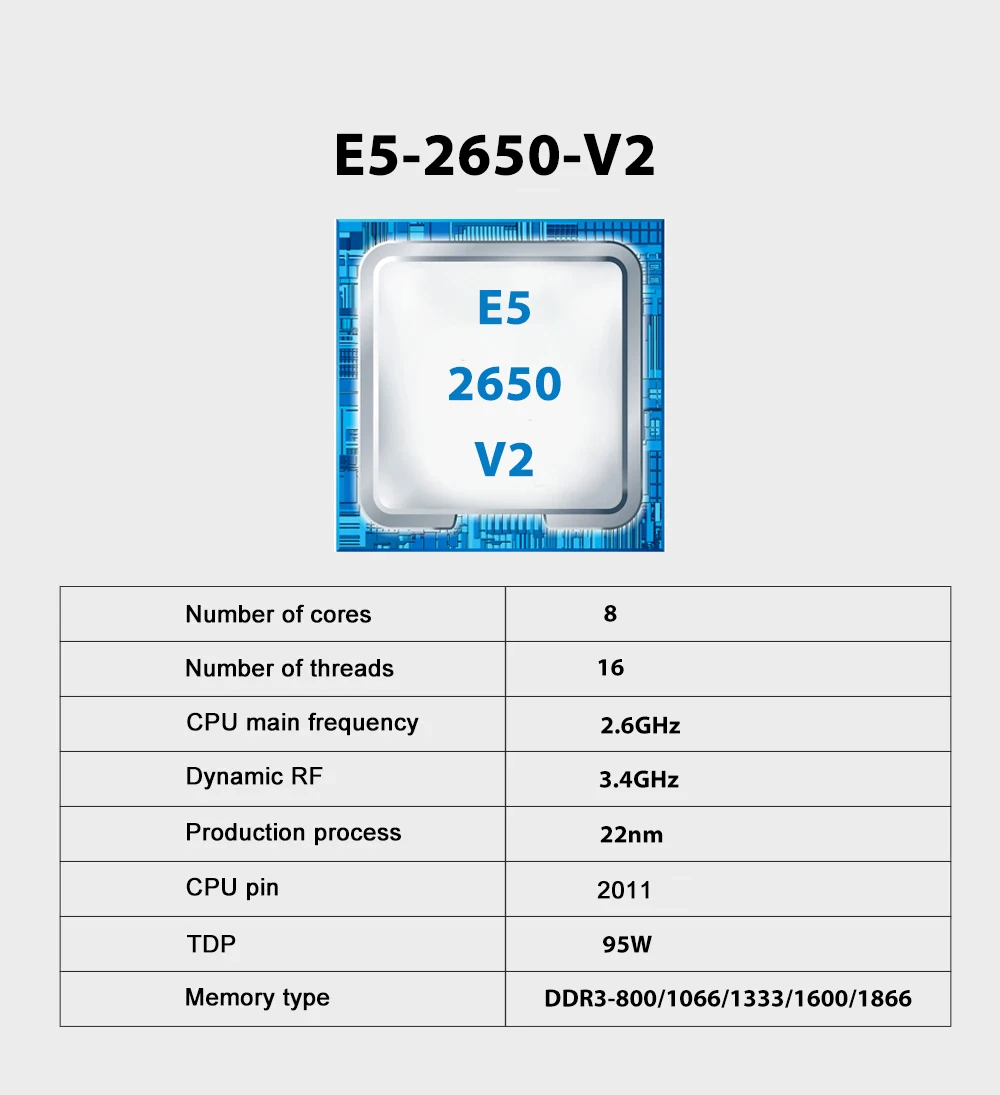

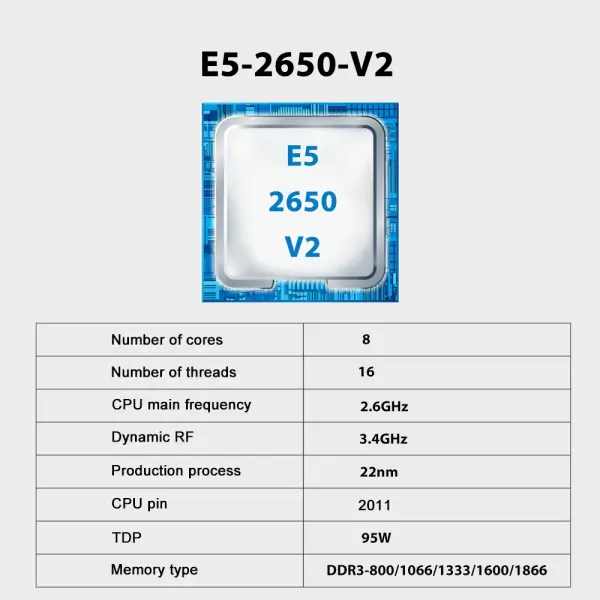

E5 2650 V2 CPU parameters:
* Number of cores: eight cores, sixteen threads
* Production technology: 32 nm
* Main frequency: 2.6GHz
* Maximum Turbo frequency: 3.6GHz
* Level 3 cache: 20M
*TDP power consumption: 115 w
* Interface type: LGA2011
Motherboard Chipset: Intel X79
CPU: Intel LGA2011-0 CPU
Optional CPU Models: E5-1650 / E5-2689 / E5-2696V2, etc.
Memory: 2*DDR3 DIMM slots, max 1866MHz / 64GB total, single slot supports up to 32GB
Storage:
1*M.2 slot (supports PCIE3.0x4 and SATA3.0 modes, requires jumper switch to toggle);
1*SATA 3.0 port, 3*SATA 2.0 ports
Audio Interfaces: 1*Line Out; 1*Mic In; 1*Line In; 1*F_Audio onboard header
Audio Chip: 1*Realtek HD Audio Chip
PCIe Slots:
1*PCIe X16 slot (PCIe 3.0 X16 signal)
1*PCIe X1 slot (PCIe 2.0 X1 signal)
Network Interface: 1*RJ45 Ethernet port
LAN Chip: 1*Realtek Gigabit Ethernet Chip
TPM Interface: 1*14Pin TPM header (TPM 2.0 supported)
USB Interfaces:
Rear I/O: 8*USB2.0 ports
Onboard Headers: 2 groups of FUSB headers (expandable to 4 additional USB2.0 ports)
Functional Headers: 1*FPANEL front panel header; 1*4Pin CPU fan header; 1*3Pin SYS fan header
Power Input: 24Pin + 8Pin ATX power connector
Product Dimensions: 172.03 x 215mm, 4-layer PCB
Power Consumption:
Standby: 20~40W
Full Load: 300~350W (for reference only)
Other Features: 1*JBAT jumper cap; 2*5Pin debug card interfaces
1*TPM header
SUPPORT Windows 7、Windows 10、Windows 11
Note:
(1) This planform needs powerful power supply. Please make sure your power supply can enough to supports this planform.(at least 500w brand power supply).
(2) The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.
(3) All motherboard memory processors are strictly tested before shipment.

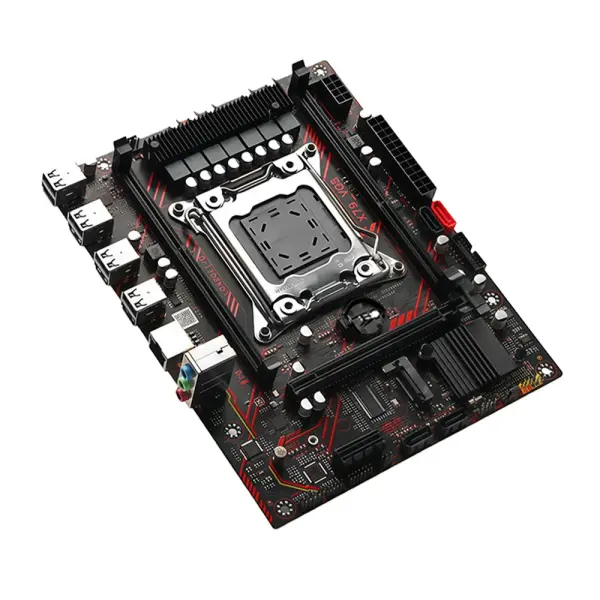

ETERNAL SY-X79 D3 DUAL-AX
High Specification, Strong Expandability, Premium Product
Robust Power Module
7-phase power configuration
2-slot, dual-channel DDR3 memory for stable operation
Max support 1066/1333/1600/1866MHz
Dual-channel DDR3 slot design
2 DIMM DDR3 memory slots
Supports up to 64GB total capacity
Supports dual-channel memory technology
Supports dual-channel DDR3 1066/1333/1600/1866MHz
Rare among products in the same class,it offers expandability that exceeds conventional specifications.
1xM.2 port Supports PCIe 3.0 x4 and SATA 3.0 modes
1xPCIe 3.0 x16 slot
Supports AMD and Nvidia discrete graphics cards
1xPCIe x1 slotSupports multi-device expansion
Super Performance Verified Smooth High-Frame-Rate Operation
Hi there, our products work perfectly. Every unit is strictly tested before shipping, and all are 100% brand new.
| Brand Name | SOYO |
|---|---|
| Chipset | Intel X79 |
| Onboard LAN | 1x RJ45 |
| Maximum Ram Capacity | 64 GB |
| Battery Included | no |
| Processor compatibility | Intel Xeon E Series |
| With CPU | Yes |
| Support Memory Type | DDR3 |
| Number of PCI | 2 |
| Special Features | NONE |
| Storage Interface Type | SATA 2 |
| Storage Interface Type | SATA 3 |
| Storage Interface Type | M.2 (NVMe) |
| Package | Yes |
| RAID Supported | no |
| Application | Desktop |
| Chipset Manufacturer | Intel |
| Back I/O Ports | 1x RJ45 |
| Back I/O Ports | PS/2 |
| PCI - E standards | PCI-E 3.0 |
| Socket Type | LGA 2011 |
| High-concerned chemical | none |
| Usage Scenario | Gaming |
| Usage Scenario | Audio & Video |
| Usage Scenario | Office |
| Origin | Mainland China |
| Number Of Memory Slots | 2 |
| Ports | Ethernet |
| Support USB Type | USB 2.0 |
| Onboard Connectors & Header | 24-pin Main Power Connector |
| Onboard Connectors & Header | CPU Fan Connector(s) |
| Onboard Connectors & Header | System Panel(s) (Chassis intrusion header is inbuilt) |
| Memory channel | Double |
| Number of SATA Ports | 4 |
| Supports M.2 SSD | 2242 |
| Supports M.2 SSD | 2280 |
| Number of M.2 | 1 |
| Choice | yes |
