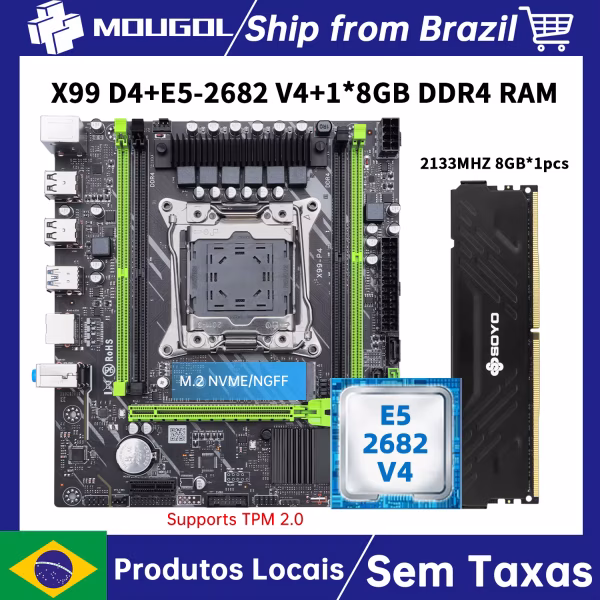

Hello friend, this motherboard can only support MSI TPM2.0 2x7N10 modules

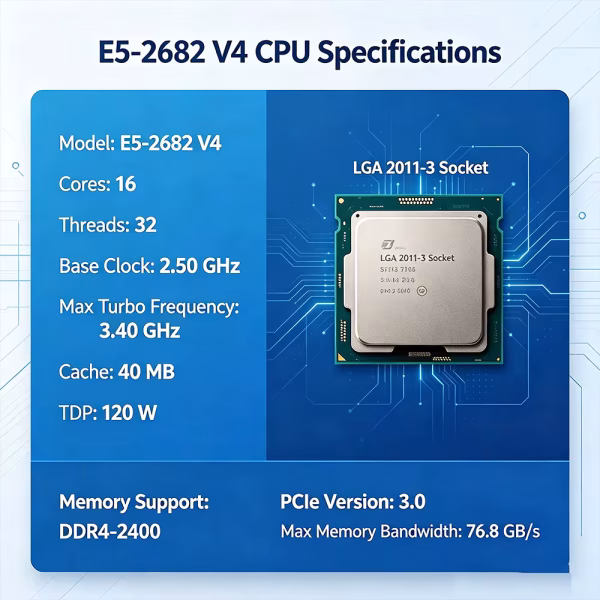

Model: Intel Xeon

Model Number: E5 2682 V4

CPU Frequency: 2.5 GHz

Maximum Core Frequency: 3.0 GHz

Socket Type: LGA2011-3

Manufacturing Process: 14nm

Memory Type: DDR4 1600/1866/2133/2400

Number of CPU Cores: 16

Number of Threads: 32

L3 Cache (MB): 40MB

Power Consumption: 120W

The cpu will be final double tested before shipping

🔥 Key Features

⚡ Processor & Chipset

• Intel C612 chipset – enterprise‑grade stability

• Supports Intel Xeon E5 LGA2011-3 series (V3 and V4): E5 2673V3, 2666V3, 2678V3, 2696V3, 2686V4, and more

• Great for multi‑core workloads: virtualization, rendering, and data processing

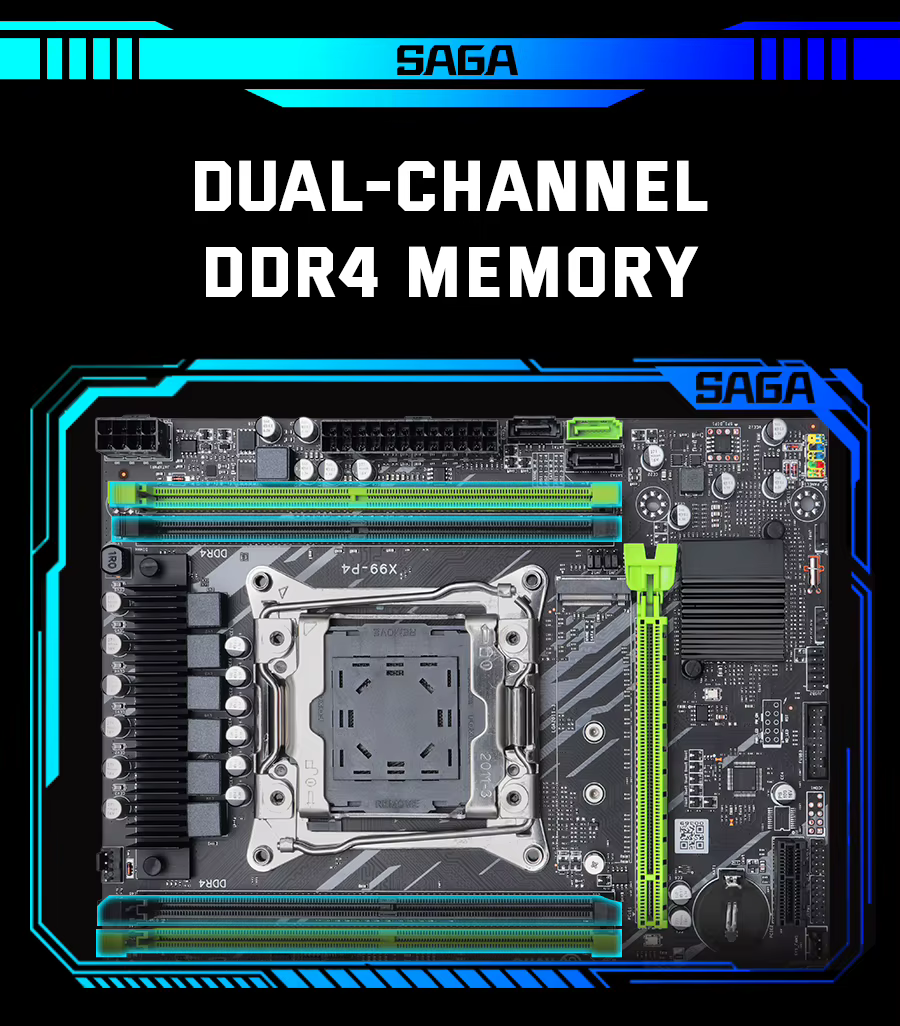

💾 Large DDR4 Memory Capacity

• 4 × DDR4 DIMM slots – dual‑channel support

• Supports 2400MHz and up to 128GB total (green slots are primary channel)

• ECC memory compatible (depending on CPU)

💿 Flexible Storage – Dual M.2 + SATA

• 2 × M.2 slots (2280/2260/2242) – support NVMe and SATA modes (jumper‑selectable per slot)

• 3 × SATA 3.0 ports – for HDDs/SSDs

• Build ultra‑fast boot drives or large storage arrays

🌐 Gigabit Ethernet & Advanced Networking

• Realtek Gigabit LAN – stable and reliable

• Supports PXE network boot and Wake‑on‑LAN (WOL)

• Perfect for diskless workstations, remote management, and server farms

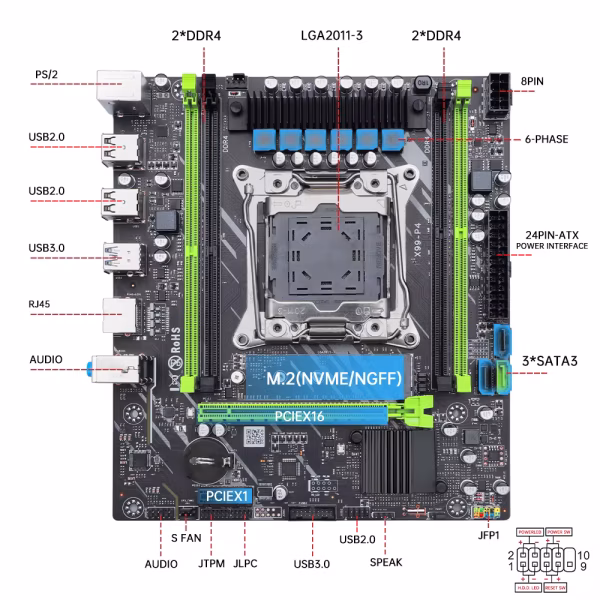

🔌 Comprehensive I/O & Expansion

• Rear I/O: 4× USB2.0, 2× USB3.0, PS/2 keyboard/mouse, 3× audio jacks (Line out, Mic in, Line in), 1× RJ45

• Internal headers: 1× USB2.0 (2 ports), 1× USB3.0 (2 ports), F_Audio, COM (RS232), TPM header

• PCIe slots: 1× PCIe X16, 1× PCIe X1 – for graphics cards, capture cards, or other expansion

• Audio: Realtek ALC887 high‑definition audio

🛠️ Professional Headers & Diagnostics

• 1× FPANEL front panel header

• 1× 4‑pin buzzer, 1× 4‑pin CPU fan, 1× 3‑pin system fan

• 1× TPM header (for security modules)

• 2× 5‑pin diagnostic card headers – easy troubleshooting

• 1× JBAT clear CMOS jumper

💪 Stable Power & Wide Environment Tolerance

• 24‑pin + 8‑pin ATX power connectors – stable power delivery for high‑TDP Xeon CPUs

• Idle power: 50–80W; Full load: 180–290W (with discrete GPU)

• Operating temperature: -10°C to 60°C; Storage: -25°C to 70°C

• Humidity tolerance: 10%–90% non‑condensing – suitable for industrial environments

🖥️ Wide OS Compatibility

• Supports Windows 7, Windows 10, Windows 11, and Linux distributions

• Flexible for legacy and modern systems

📦 Compact M-ATX Form Factor

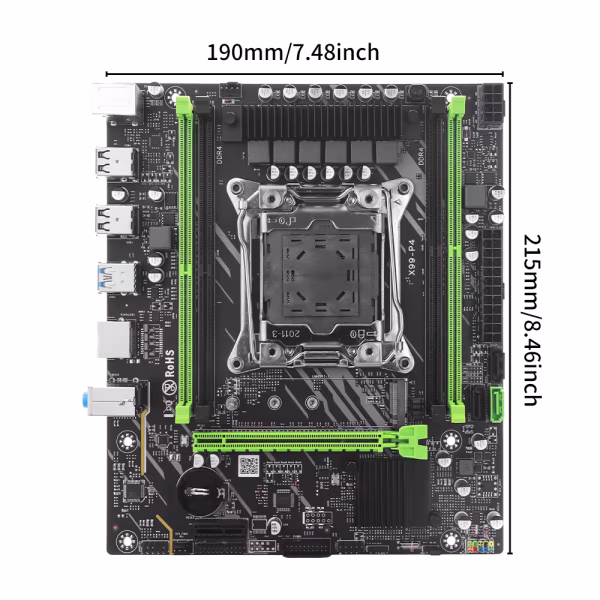

• Dimensions: 190 × 216 mm (4‑layer PCB) – fits most M-ATX cases

• Ideal for space‑constrained builds without sacrificing expansion

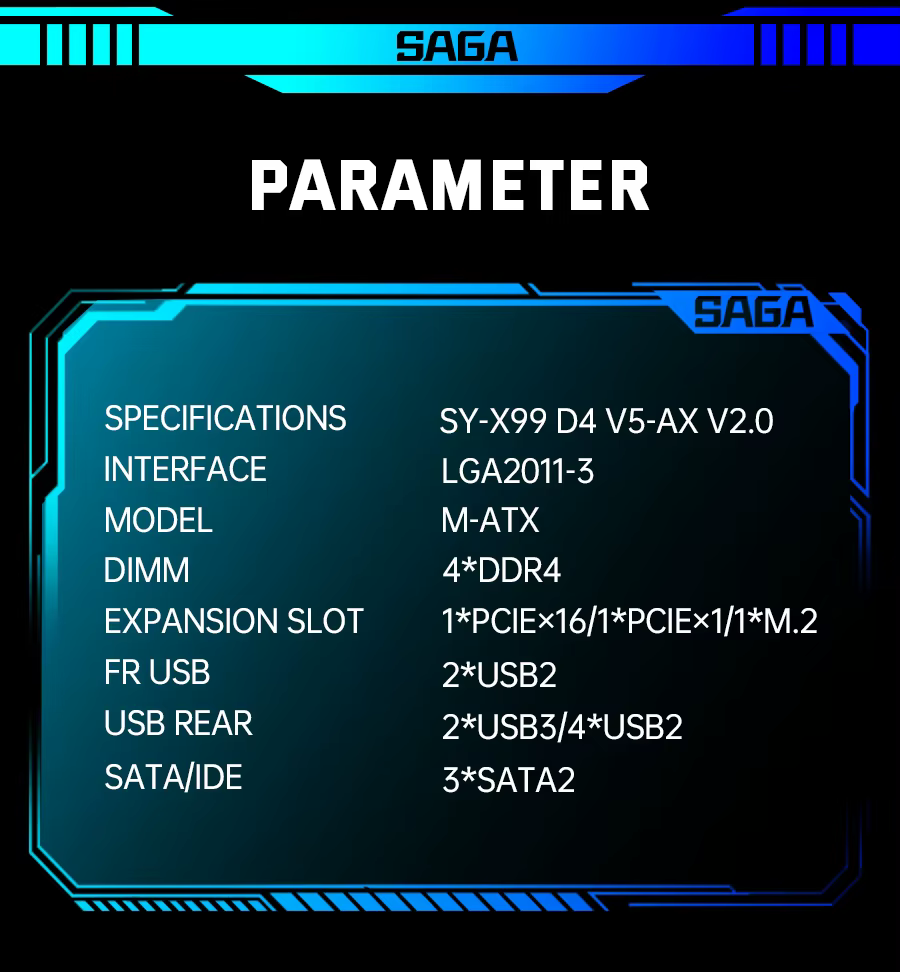

📊 Detailed Specifications

🎯 Ideal Use Cases

• High‑Performance Workstations: 3D rendering, CAD, video editing, scientific computing

• Servers & Virtualization: ESXi, Proxmox, Docker – multi‑core Xeon + large memory support

• Network Attached Storage (NAS): SATA ports + M.2 for cache or boot drive

• Industrial/Embedded Systems: Wide temperature range and reliable components

• Diskless Workstations / Cyber Cafés: PXE boot support for easy network deployment

• Home Lab & Development: TPM, COM, diagnostic headers for debugging and experimentation

✅ Summary

The X99-P4 V5.23 offers a cost‑effective, expandable platform for Intel Xeon E5 LGA2011‑3 processors. With dual M.2 slots (NVMe/SATA), four DDR4 DIMM slots (up to 128GB), gigabit Ethernet with PXE/WOL, and a rich set of USB and expansion options, it's an ideal choice for powerful workstations, home servers, and industrial systems. Its M-ATX form factor and wide environmental tolerance make it versatile for both professional and enthusiast builds.

* Actual performance depends on CPU, memory, graphics card, and other components. A quality power supply is recommended for stable operation. Operating system must be installed separately. M.2 mode selection requires jumper adjustment.
