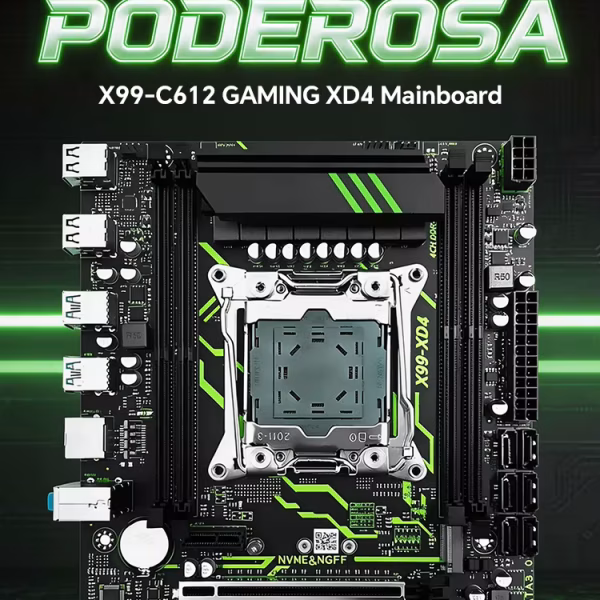

New X99 D4 motherboard with C612 LGA2011-3 Slot Xeon E5 2680 V4 CPU support TPM2.0 M.2 NVME DDR4

Please confirm the specifications of the packaging before buying.

Series of CPU processors: Intel Xeon

Model: E5 2680 V4

Processor Speed: 2.4GHz

Maximum Core Frequency: 3.3GHz

-Slot processor: LGA2011-3

Process: 14nm

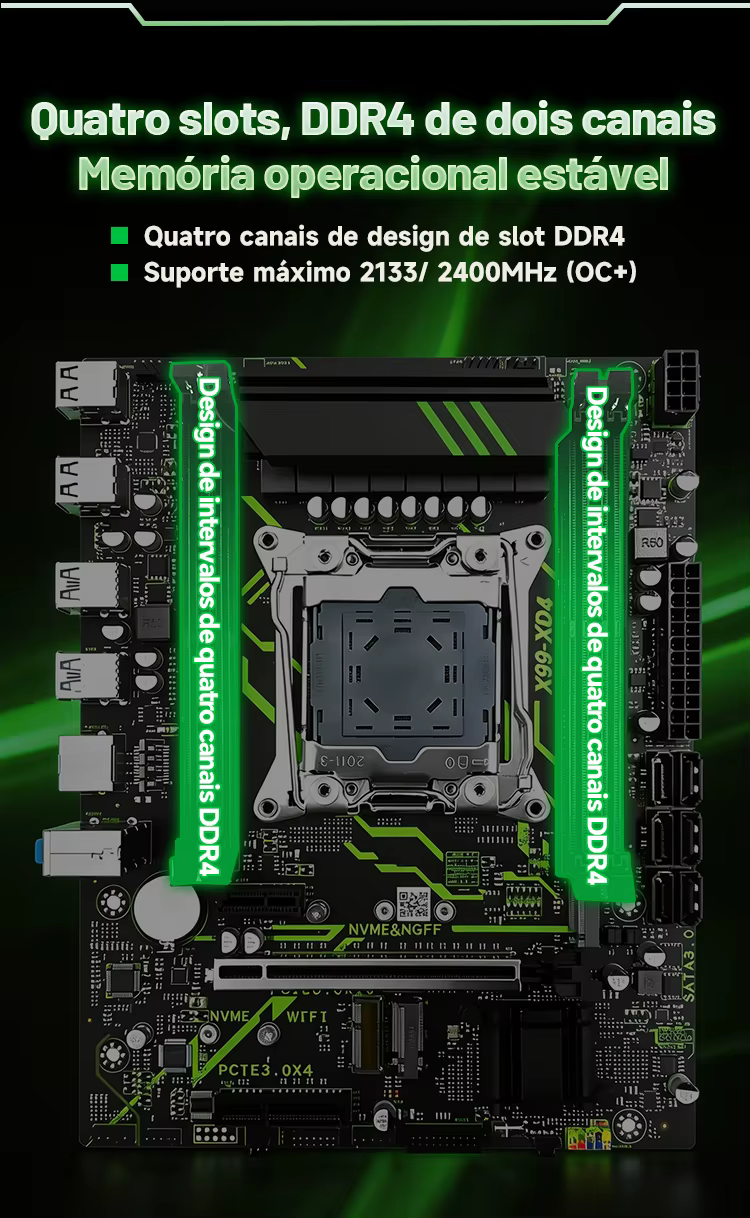

Type of memory: DDR4 1600/1866/2133/2400

Number of CPU Colors: 14

Number of wires: 28

Size of the Level 3 cache (MB): 35 MB

Power: 120 Watts

The CPU will undergo a final double test before shipping.

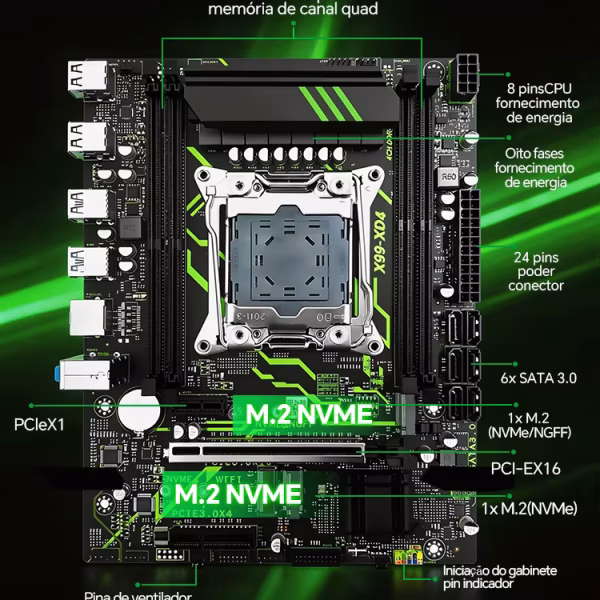

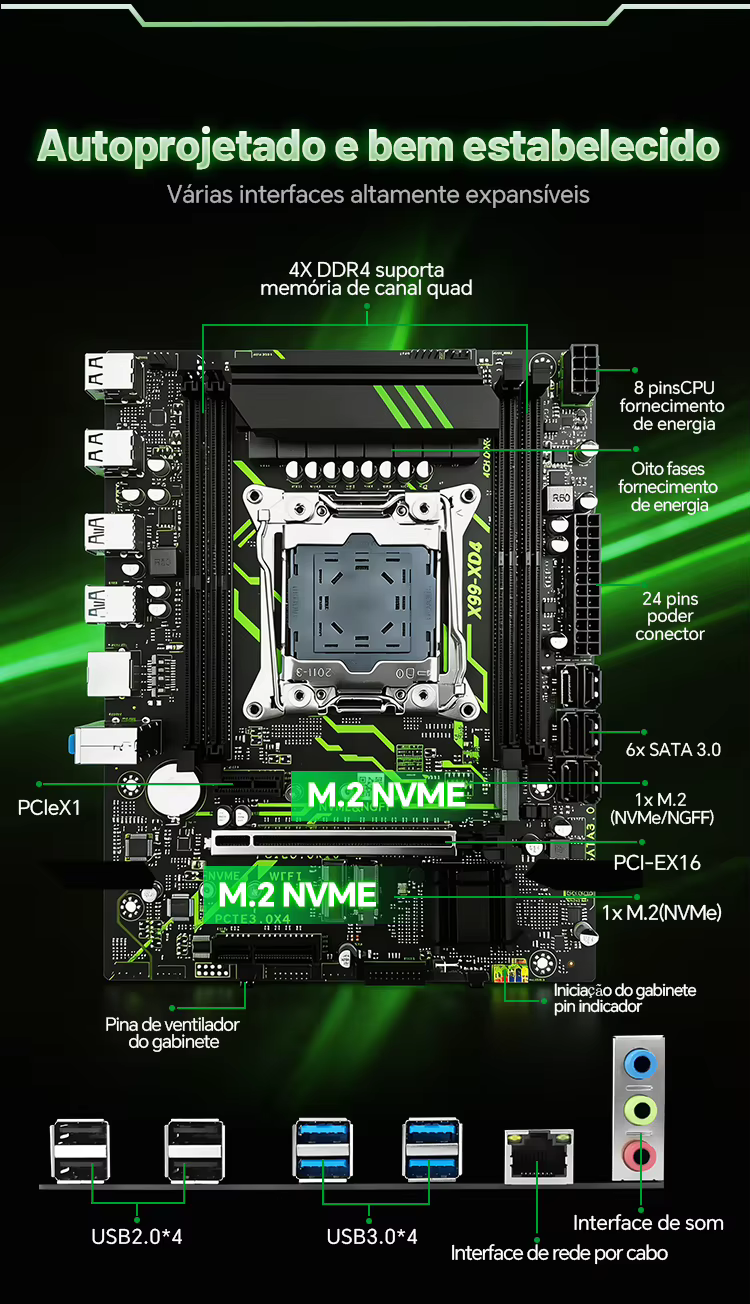

Parameter Specifications:

Chipset: C612 Series

Ethernet: 1 Realtek Gigabit Ethernet card;

Audio: 1 Audio Interface (microphone in, line out, line in, built-in audio pin);

USB interface: 4 USB 2.0 interfaces; 4 USB 3.0 interfaces;

PCIe Slots: 3 (1 PCIe 3.0x16, 1 PCIe 3.0x4, 1 PCIe 2.0x1);

Internal Connector:

SATA interface: 6 SATA interfaces (4 SATA 3.0 interfaces)

PCIE Slots: 3 (1 PCIe 3.0x16, 1 PCIe 3.0x4, 1 PCIe 2.0x1);

Built-in USB pins: 1 set of USB 2.0 pins (expandable to 2 USB 2.0 ports); 1 set of USB 3.0 pins (expandable to 2 SUB3.0 ports);

SATA Interface: 6 SATA 3.0 interfaces

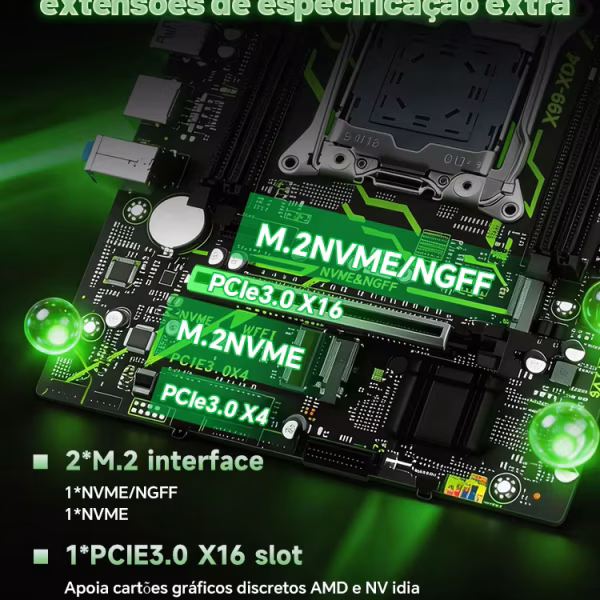

M. 2 Interfaces: 1 M.2 slot (supports NVME protocol only); 1 M.2 slot (NVMe/NGFF jump pin interrupt)

WIFI: 1 M.WIFI slot (supporting 2230 WIFI/BT modules); Supports PCIe protocol

Power Input: 24Pin + 8Pin ATX power outlet

Other: 1 pin JLPC; 1 pin TPM; 1 pin embedded for F_Audio

Product Size: Size: M-ATX 220x190mm

Note:

(1) The color of the slit bottom plate may vary depending on the batch, but it will not affect the use of the product. The product will continue to be optimized and updated.

(2) Due to manual measurement, allow an error of 1-3mm.

(3) Due to differences in monitors and lighting, the pictures may not show the actual color of the product. Thanks for your understanding.

(4) This aircraft requires a high-power power supply. Make sure that your power supply is sufficient to support the operation of this aircraft. (at least 500 watts brand-name power supply)

(5) The battery in the motherboard photo is not included and will be removed before shipping because according to the logistic requirements, this battery is prohibited from transportation.
