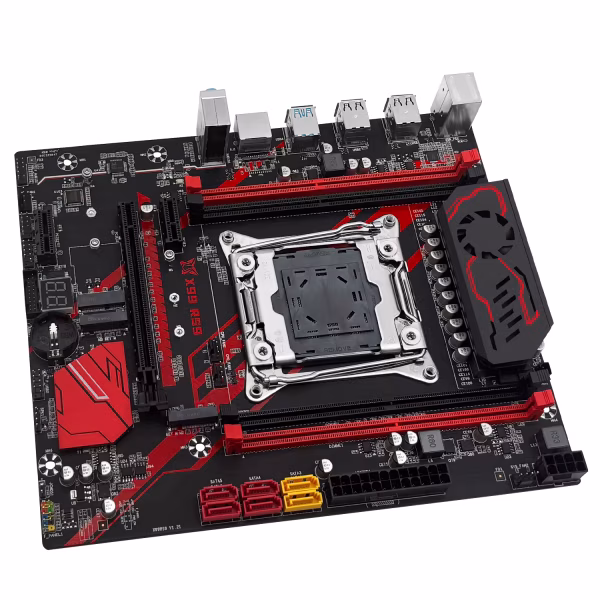

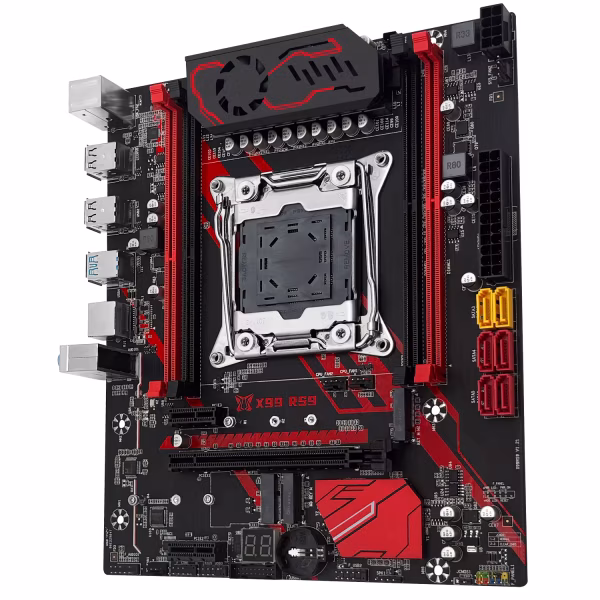

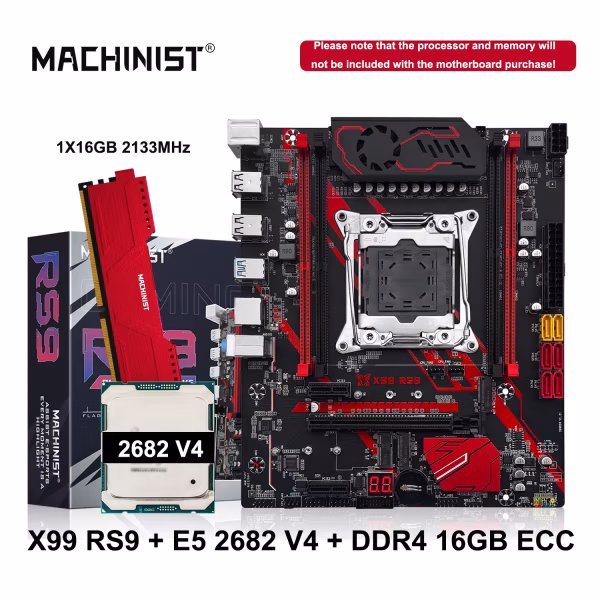

MACHINIST X99 RS9 Motherboard LGA2011-3 Optional Kit Xeon E5 2682 V4 CPU + DDR4 16gb 2133Mhz Memory Four-channel RAM M.2 NVMe
Motherboard: X99 RS9 LGA 2011-3 DDR4 Motherboard + CPU: X99 RS9 + Used E5 2682 V4 Motherboard + CPU + Memory: X99 RS9 + E5 2682 V4 + DDR4 16GB 2133MHz ECC Memory *1 (All packages are manually inspected before shipment. Refunds will not be accepted for any missing free gifts. Thank you for your understanding!)
All kits are thoroughly inspected and tested before shipment. If you encounter any issues after receiving your package, please contact customer service. They will be happy to assist you.

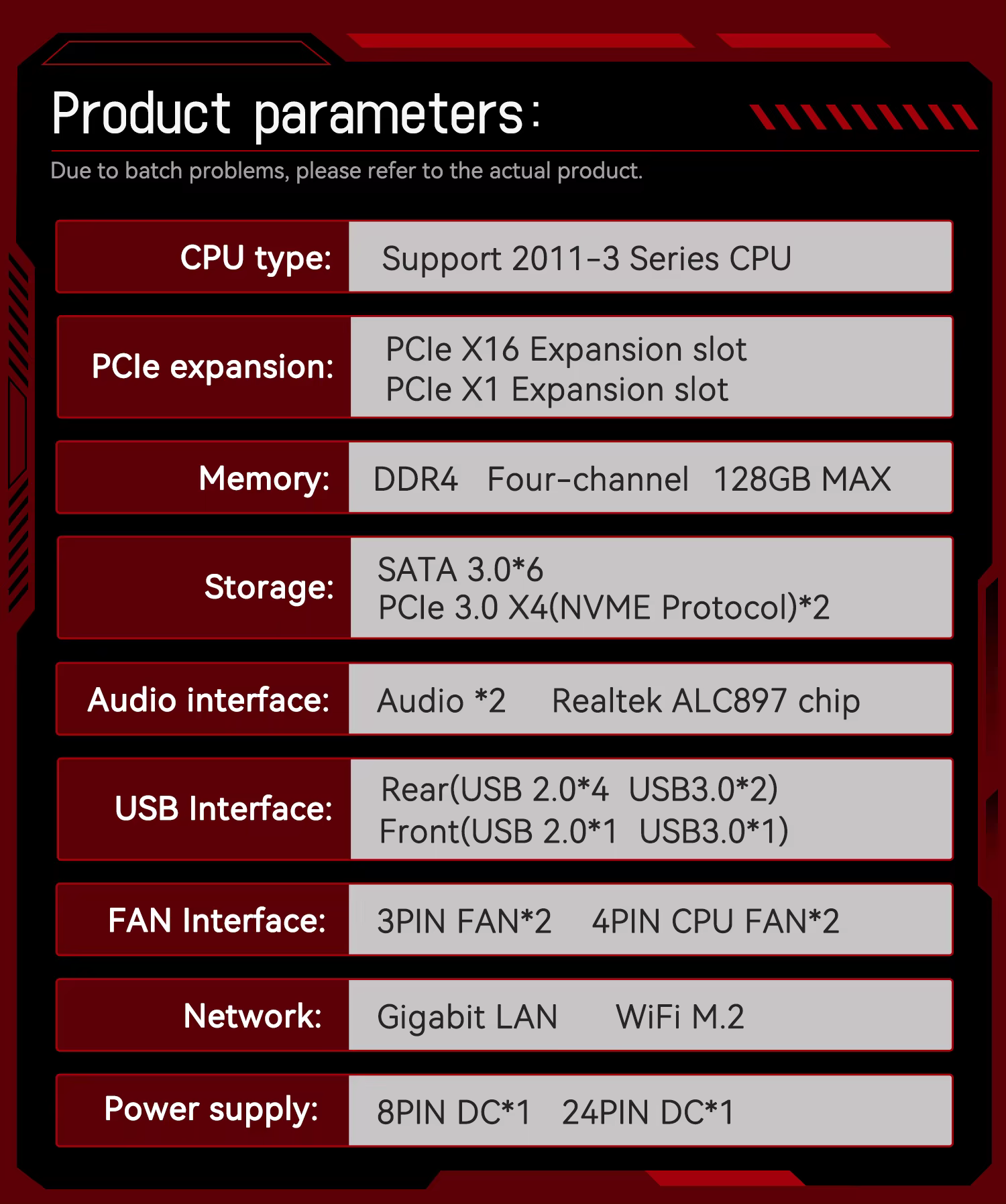

Motherboard Specifications:
Model: Machinist
Model Number: RS9
Chipset: Q87
Condition: New
CPU Socket: LGA 2011-3
Form Factor: Micro-ATX
Supported Processors: Intel LGA 2011-3 series (supports Intel Core i7 or Xeon E5 v3 and v4)
Memory Slots: 4 DDR4, Quad-channel
Maximum Memory Capacity: 4 x 32GB DDR4
Supported Memory Types: 2133/2400/2666/3000/3200/3600 MHz (Server memory and desktop memory are incompatible; compatibility issues may occur)
Supports 2 NVME M.2/1 Wi-Fi M.2
Integrated Graphics: No
The default boot option for the motherboard is UEFI. Please check if your graphics card supports UEFI.

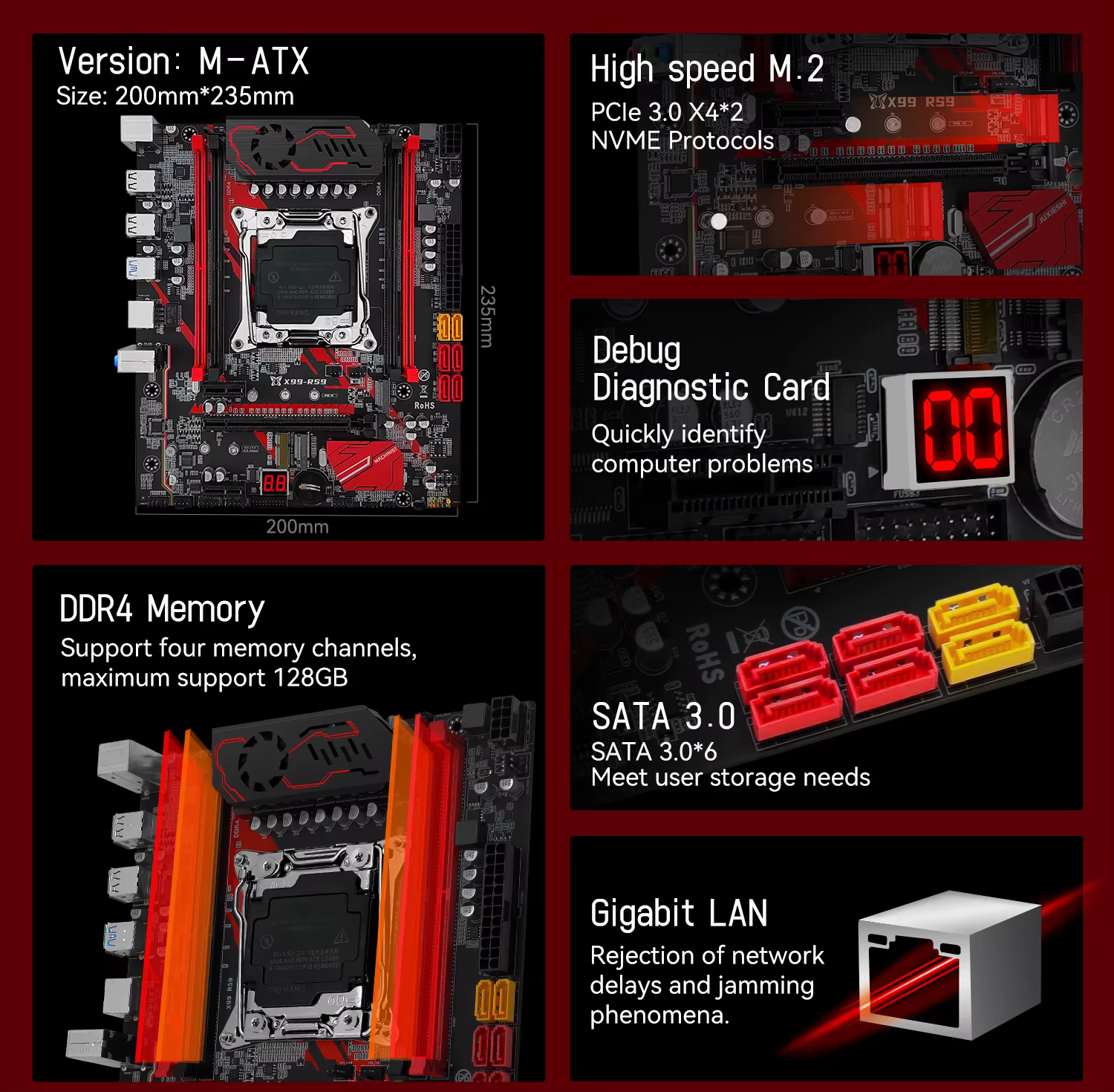

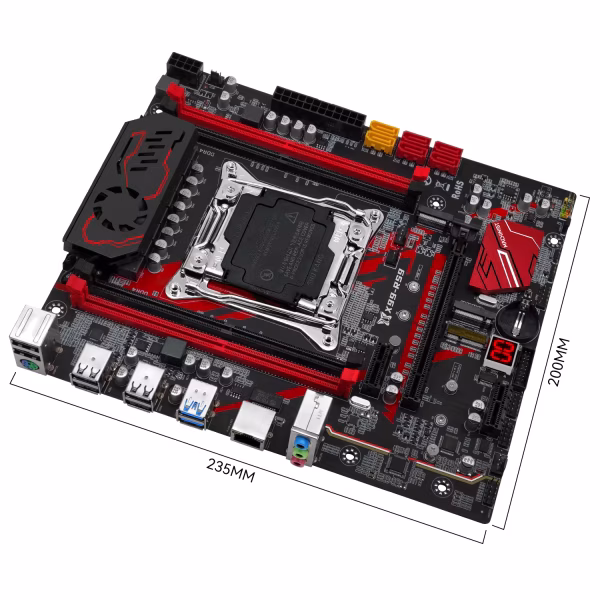

Motherboard Size: 23.5 cm x 18.5 cm
| Brand Name | MACHINIST |
|---|---|
| MACHINIST Model | X99-RS9 |
| Chipset | Q87 |
| Onboard LAN | 1x RJ45 |
| Maximum Ram Capacity | 128 GB |
| Material | others |
| Battery Included | no |
| Processor compatibility | Intel Xeon |
| With CPU | Yes |
| Support Memory Type | DDR4 |
| Number of PCI | 3 |
| Special Features | Support for Overclocking |
| Storage Interface Type | SATA |
| Package | Yes |
| RAID Supported | no |
| Application | Desktop |
| Chipset Manufacturer | Intel |

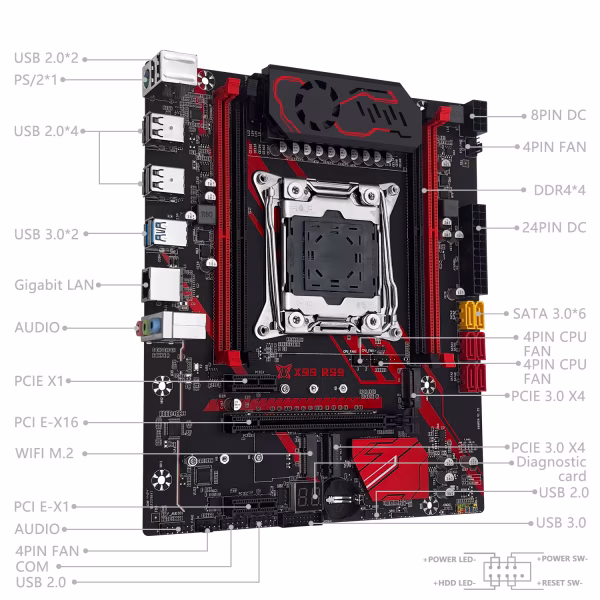

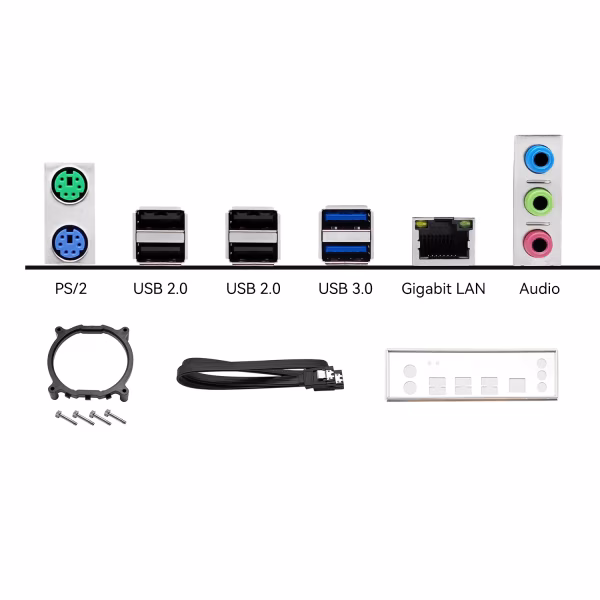

| Back I/O Ports | 1x RJ45 |
| Back I/O Ports | PS/2 |
| PCI - E standards | PCI-E 3.0 |
| Socket Type | LGA 2011-3 |
| High-concerned chemical | none |
| Usage Scenario | Enthusiast & Overclocking |
| Usage Scenario | Gaming |
| Usage Scenario | Audio & Video |
| Usage Scenario | Office |
| Usage Scenario | Video Production |
| Usage Scenario | others |
| Origin | Mainland China |
| Number of PCIe x 8 | 0 |
| Number Of Memory Slots | 4 |
| Ports | USB 3.0 |
| Form Factor | CeB |
| Support USB Type | USB 2.0 |
| Support USB Type | USB 3.0 |
| Number of PCIe x 4 | 0 |

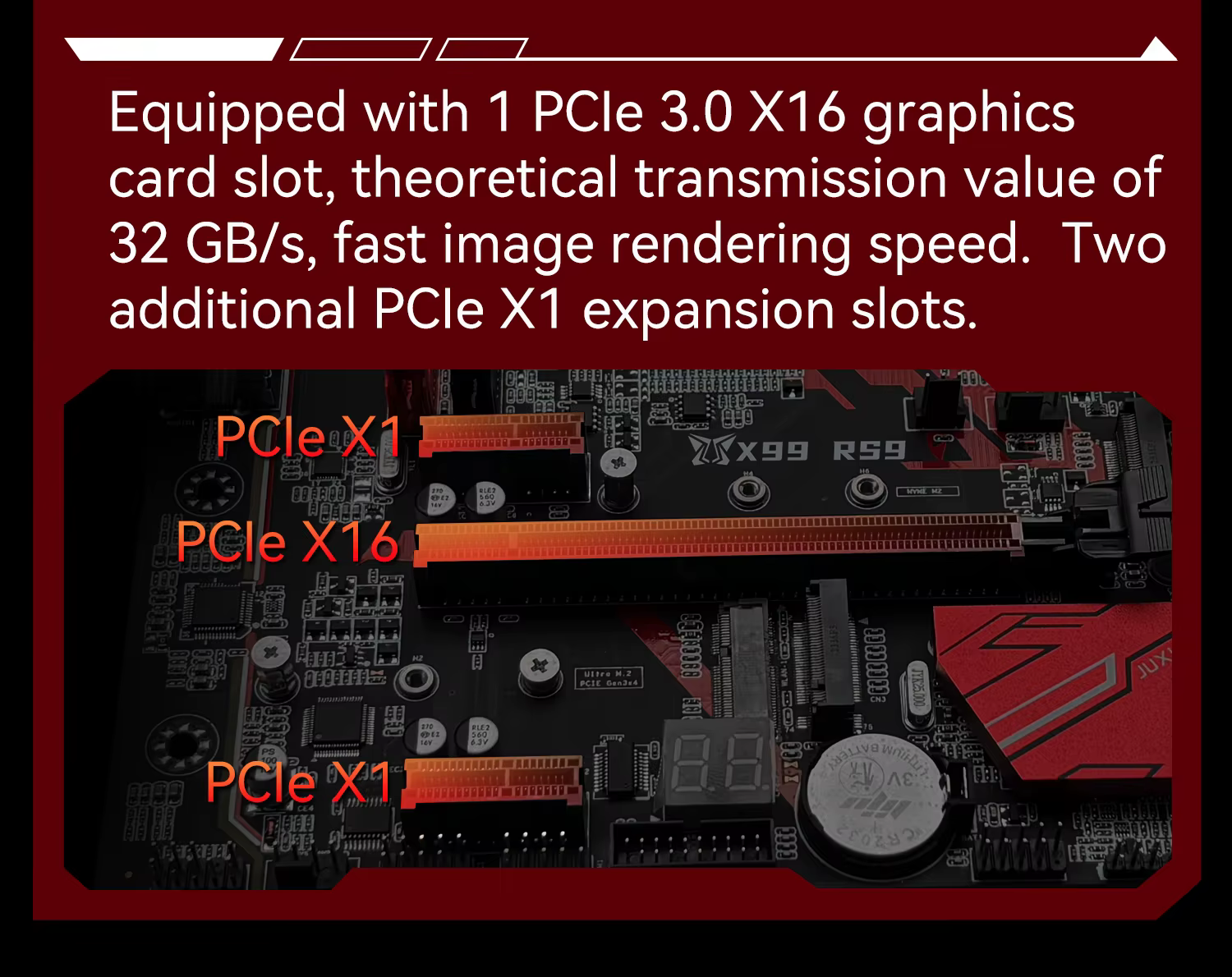

| Number of PCIe x 16 | 1 |
| Onboard Connectors & Header | 24-pin Main Power Connector |
| Onboard Connectors & Header | CPU Fan Connector(s) |
| Memory channel | Four |
| Number of SATA Ports | 6 |
| Audio Channels | 5.1 |
| Max LAN Speed | 1000Mbps |
| Quality Certification | ce |
| Quality Certification | ROHS |
| Number of PCIe x 1 | 1 |
| Certification | RoHS |
| Certification | CE |
| Form Factor | Micro-ATX |
| Supports M.2 SSD | 2280 |
| Number of M.2 | 3 |
| Choice | yes |
