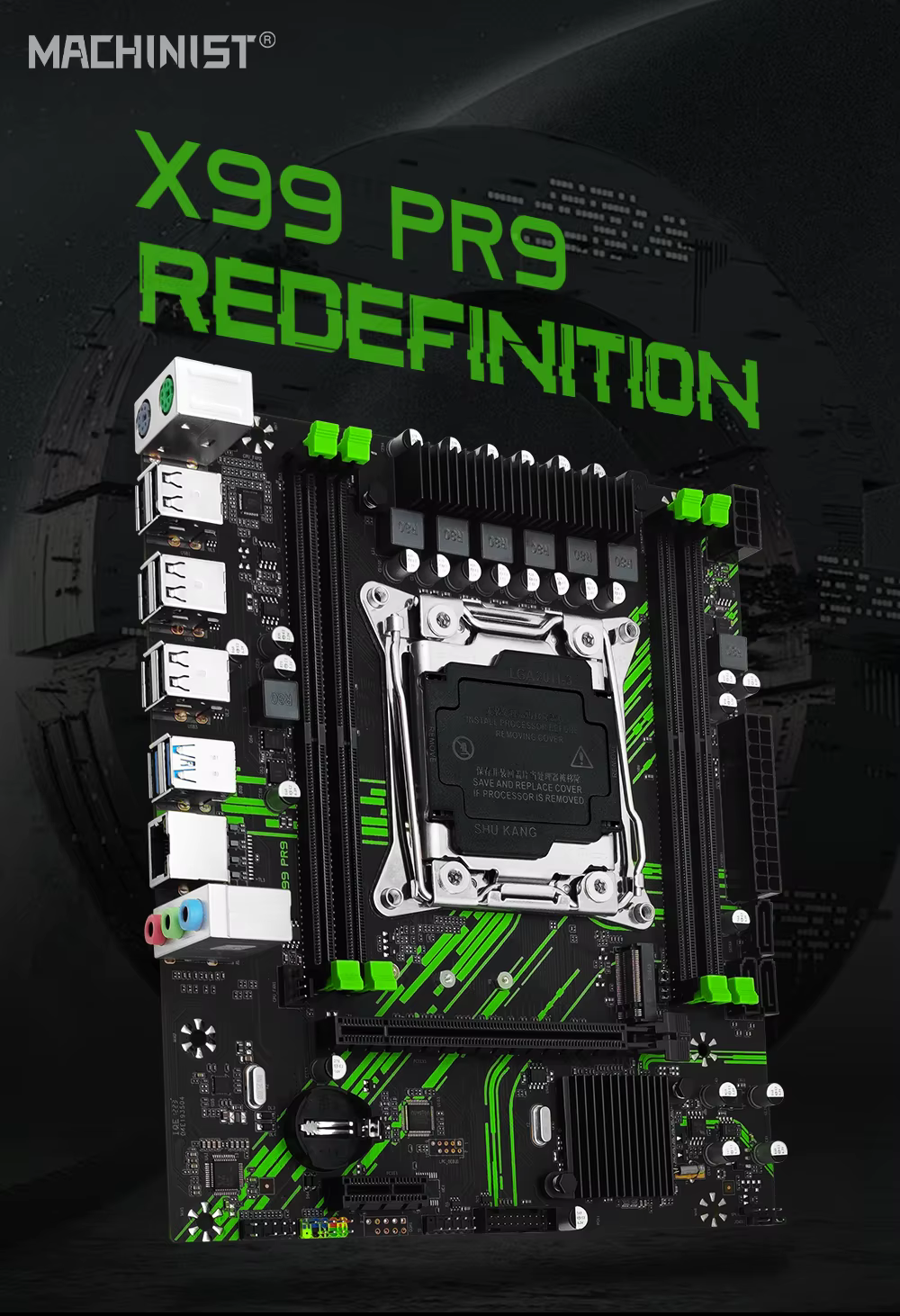

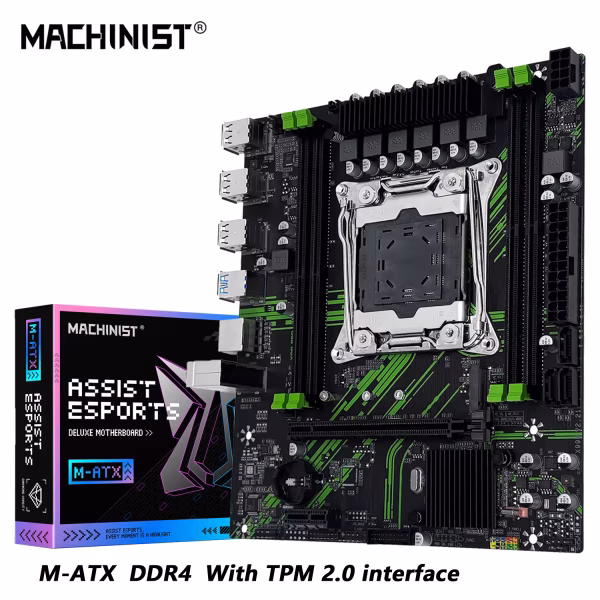

MACHINIST X99 PR9 X99 Motherboard Support LGA 2011-3 Intel Xeon E5 V3&V4 CPU DDR4 RAM SATA/NVME M.2 Slot USB3.0

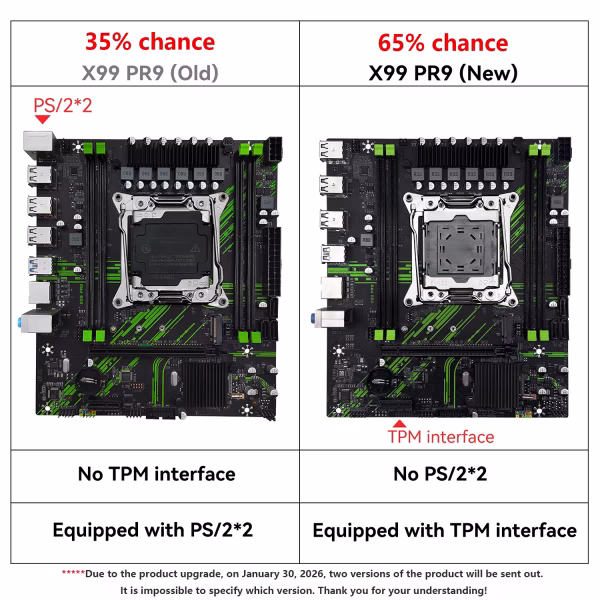

>> Currently, the X99 PR9 is in an upgrade process. The warehouse is sending both the old and new models randomly. 60% of them will be the new model with the TPM version. If you have any specific requirements for the TPM function, please do not purchase.
>> When installing the memory modules, please pay attention to the sequence of the memory slot positions, as shown in Figure 2.
> > Motherboard Information:
Brand: MACHINIST.
Motherboard Model: X99 PR9.
Processor: Supports LGA 2011-3 series.
Chipset: B85/Q87/C226 Chipset.

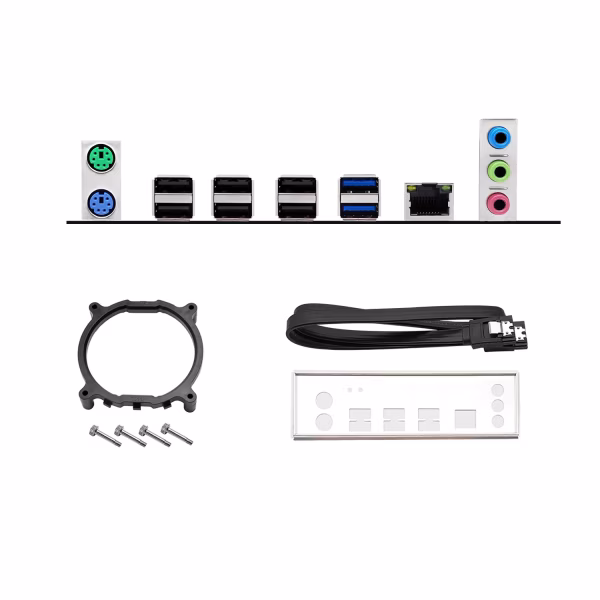

(Additional accessories included: 1 I/O shield, 1 SATA cable, 1 IGA 2011 heat sink. If any of the gifts are lost, it cannot be used as a reason for a refund. Please understand!)
> > Memory:
Technology: Dual-channel DDR4. Supports 2133/2400/2666/3000/3200 MHz.
Maximum capacity: 128GB (32G × 4).
Memory slots: 4 * 288 PIN DDR4.
Note #1: Please use international brands such as Samsung, Kingston, SanDisk, Micron, etc. Other brands may be incompatible.

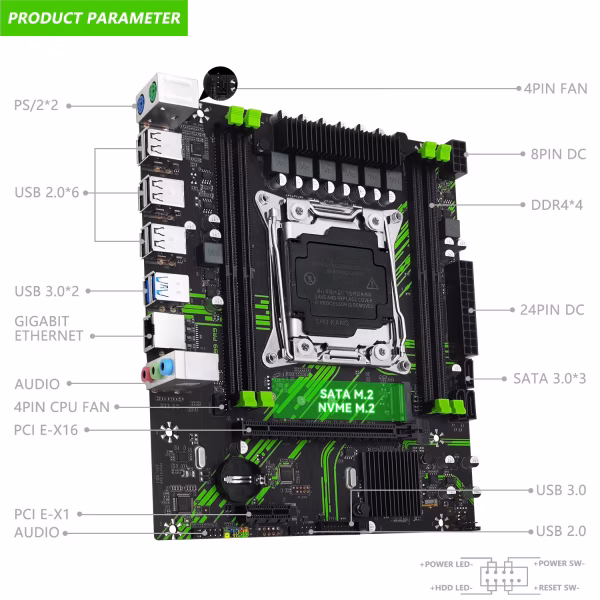

>> Post I/O:
PS/2: 1 KB interface + 1 MS interface.
USB interfaces: 6 USB 2.0; 2 USB 3.0.
Ethernet: 1 Gigabit network card.
Audio: 1 (Mic-in, Line-out, Line-in).
>> Other:
TPM interface: For ASUS LPC-14Pin-2.0
SATA interface: 2 (SATA 2.0), 1 (SATA 3.0).

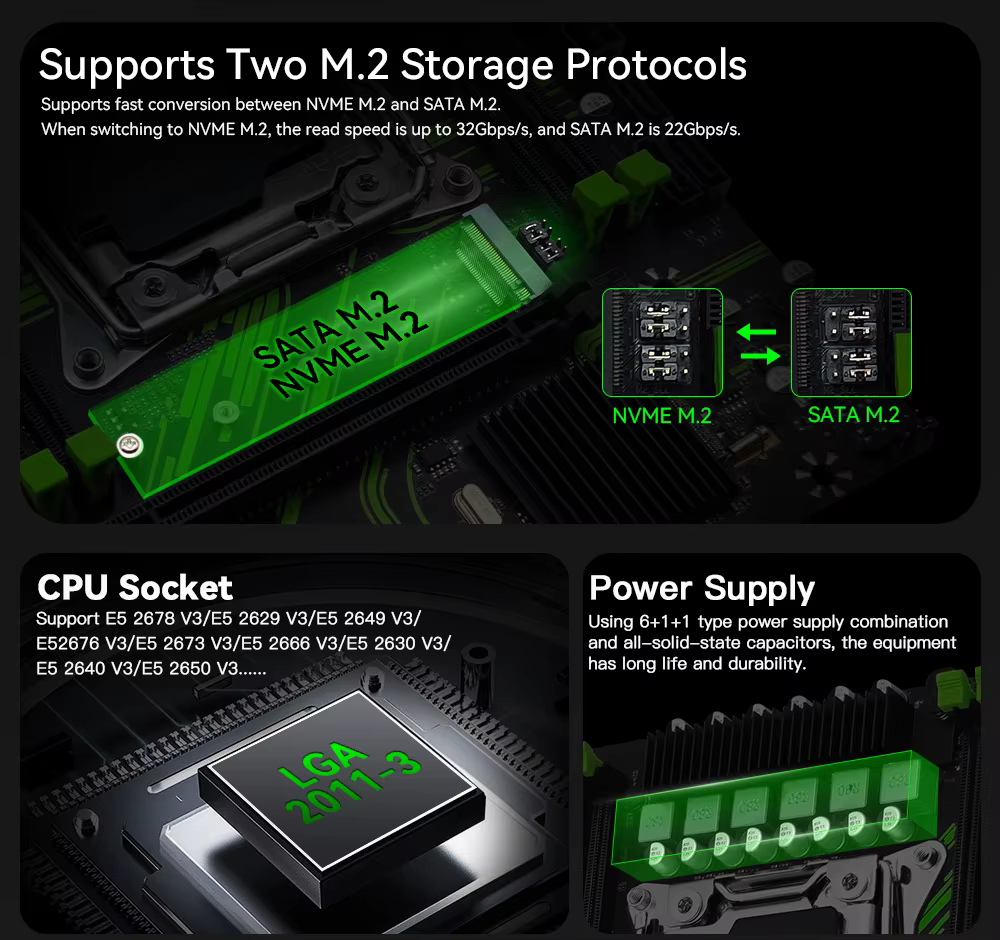

M.2: 1 (NVMe/SATA).
PCIe: 1 (PCIe 16x), 1 (PCIe 1x).

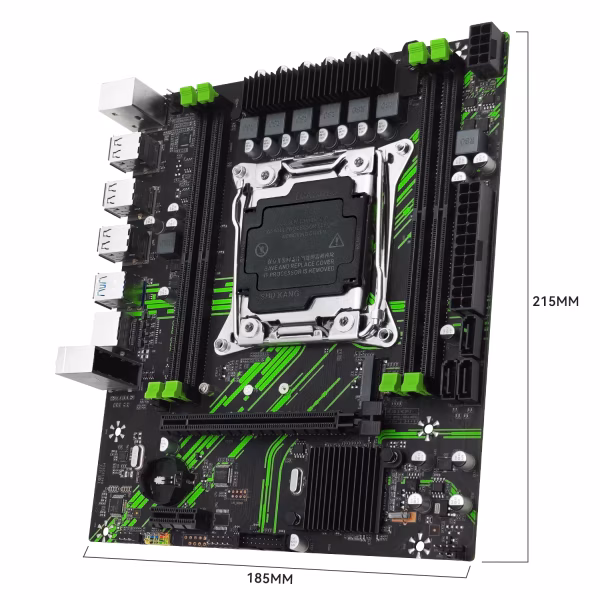

Overall dimensions: 215mm * 185mm.
>>Regarding the tariff issue, please ensure that you can handle the customs clearance by yourself. If you cannot, we do not recommend that you purchase goods in our store. We are not responsible for tariffs. Thank you for your understanding.
>>Note:
(1) The color of the bottom plate of the trough may vary from batch to batch, but it will not affect the use of the product. The products are constantly being optimized and upgraded.
(2) Due to manual measurement, please allow an error of 1 to 3mm.
(3) Due to different displays and lighting conditions, the picture may not show the actual color of the item. Thank you for your understanding.
(4) This platform requires a powerful power supply. Please ensure that your power supply is sufficient to support this platform. (At least 500w brand power supply
(5) The battery in the motherboard photo is not included. It will be removed before shipment because the logistics requirements prohibit the use of this battery.
| Brand Name | MACHINIST |
|---|---|
| Chipset | Intel B85 |
| Onboard LAN | 1x RJ45 |
| Maximum Ram Capacity | 128 GB |
| Battery Included | no |
| Processor compatibility | Intel Xeon |
| With CPU | No |
| Support Memory Type | DDR4 |
| Number of PCI | 2 |
| Special Features | NONE |
| Storage Interface Type | SATA |
| Storage Interface Type | M.2 (NVMe) |
| Package | Yes |
| RAID Supported | no |
| Application | Desktop |
| Chipset Manufacturer | Intel |
| Back I/O Ports | 1x RJ45 |
| PCI - E standards | PCI-E 3.0 |
| Socket Type | LGA 2011-3 |
| High-concerned chemical | none |
| Usage Scenario | Audio & Video |
| Usage Scenario | Office |
| Usage Scenario | Video Production |
| Usage Scenario | others |
| Origin | Mainland China |
| Number of PCIe x 8 | 0 |
| Number Of Memory Slots | 4 |
| Ports | M.2 |
| Support USB Type | USB 2.0 |
| Support USB Type | USB 3.0 |
| Number of PCIe x 4 | 0 |
| Number of PCIe x 16 | 1 |
| Onboard Connectors & Header | 24-pin Main Power Connector |
| Onboard Connectors & Header | CPU Fan Connector(s) |
| Onboard Connectors & Header | AAFP Connector |
| Memory channel | Double |
| SATA RAID | 0 |
| Max LAN Speed | 1000Mbps |
| Quality Certification | ce |
| Quality Certification | ROHS |
| Number of PCIe x 1 | 1 |
| Certification | RoHS |
| Certification | CE |
| Form Factor | Micro-ATX |
| Supports M.2 SSD | 2280 |
| Number of M.2 | 1 |
| Choice | yes |
