MACHINIST White X99 PR9-H Motherboard Combo Intel Xeon E5 2630 V4 LGA 2011-3 CPU DDR4 16GB RAM NVME M.2 Optional Kit Set
###: The motherboard will be shipped with a processor base protective cover. Please feel free to buy.
>>Please pay attention to the bundle options before purchasing. Purchase a single motherboard. We do not send CPU and memory. Please check carefully.
>>SKU 1: Motherboard .
>>SKU 2: Motherboard + E5 2630 V4 .
>>SKU 3: Motherboard + E5 2630 V4 + DDR4 2*8GB 2133MHz Desktop RAM.
>>Motherboard information:
Brand:MACHINIST.
Motherboard model: X99 PR9-H white.
Processor: Support LGA 2011-3 series.
Chipset: HM55/H55 Chipset.
>>Memory:
Technology: Dual Channel DDR4. Support 2133/2400/2666/3000/3200 MHZ.
Maximum capacity :128GB (32Gx4).
Memory slot: 4*288 PIN DDR4
.(Note: Please use international brands such as Samsung, Kingston, SanDisk, and Micron. Other brands may be incompatible.)
>> Post I/O:
PS/2: 1 KB interface + 1 MS interface.
USB interface: 6 USB2.0.
Ethernet: 1 Gigabit network card.
Audio: 1 (Mic-in, Line-out, Line-in).

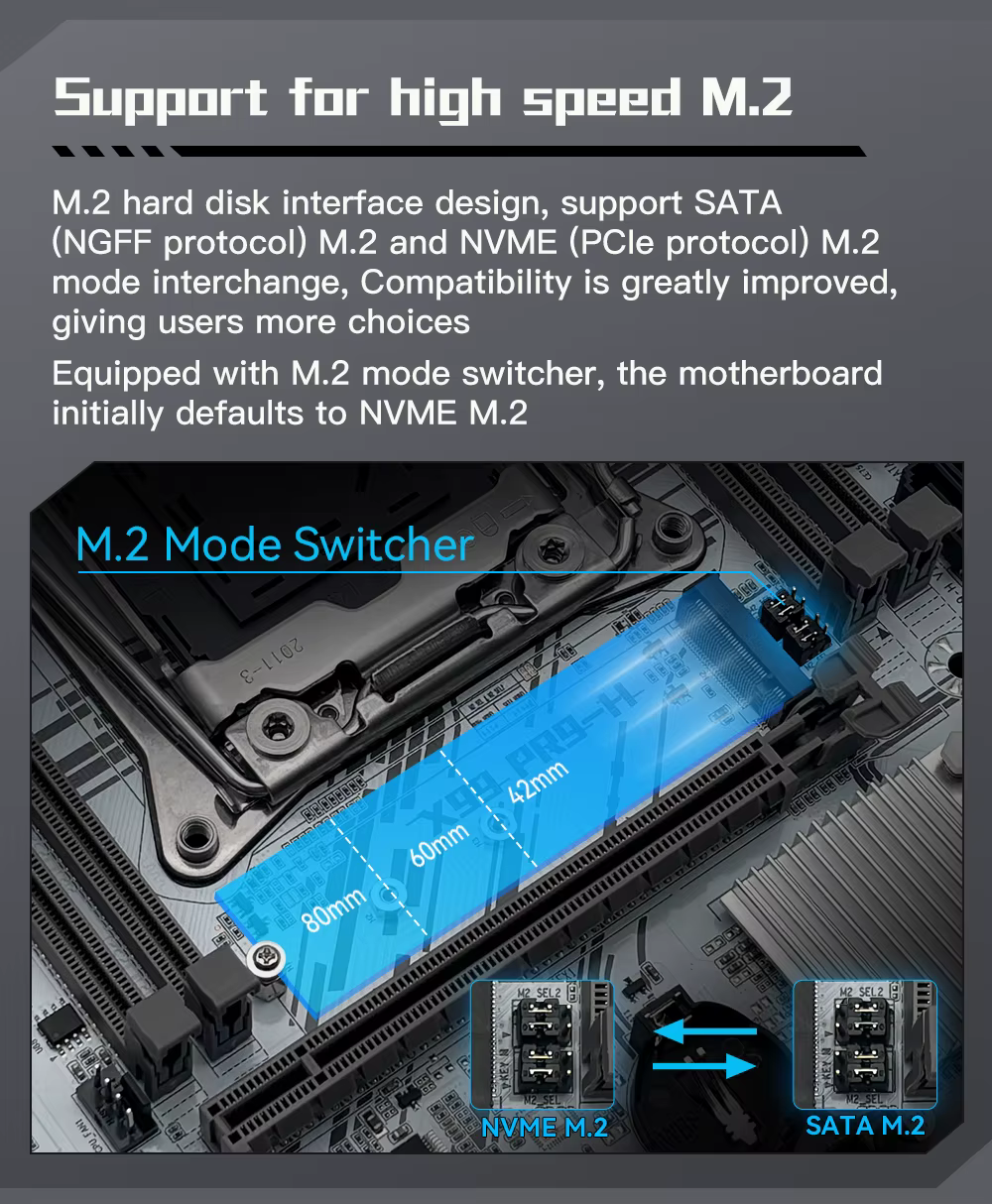

SATA interface: 3 (SATA2.0).M. 2:1 (nvme/sata).
PCIe: 1 PCIe 16x, 1 PCIe 1x.
>>Outline dimensions: 215mm * 185mm.

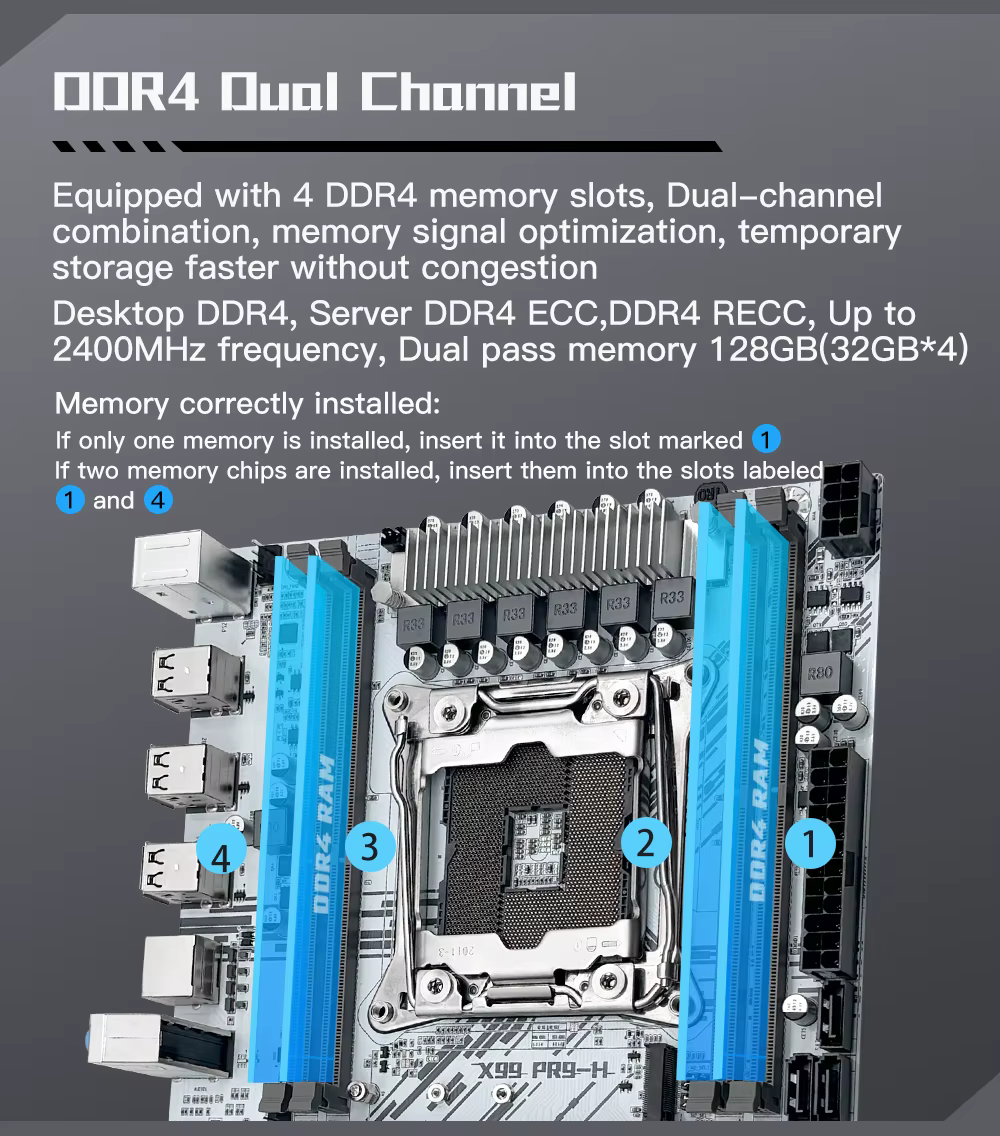

>>For installing memory. All RAM needs to be installed first in slot #1 and slot #4 (the outermost slot). The middle memory slots (#2/#3) of the motherboard cannot work alone.
>>Notice:
(1) The color of the tank bottom plate may vary from batch to batch, but it will not affect the use of the product. Products are continuously optimized and upgraded.
(2) Due to manual measurement, please allow an error of 1-3mm.
(3)Due to different displays and different lights, the pictures may not show the actual color of the item. thank you for understanding.
(4) The platform requires a powerful power supply. Please make sure your power supply is sufficient for this platform. (At least 500w brand power supply)
(5) The battery in the motherboard photo is not included and will be removed before shipment because logistics requirements prohibit the use of this battery.
>> Regarding customs issues, please ensure that you can solve the customs clearance problem by yourself. If you cannot solve it, we do not recommend that you purchase goods in our store. We are not responsible for customs duties. thank you for understanding.
| Brand Name | MACHINIST |
|---|---|
| Chipset | h55 |
| Onboard LAN | 1x RJ45 |
| Maximum Ram Capacity | 128 GB |
| Material | others |
| Battery Included | no |
| Processor compatibility | Intel Xeon |
| With CPU | Yes |
| Support Memory Type | DDR4 |
| Number of PCI | 1 |
| Special Features | NONE |
| Storage Interface Type | SATA |
| Storage Interface Type | M.2 (NVMe) |
| Package | Yes |
| RAID Supported | no |
| Application | Desktop |
| Chipset Manufacturer | Intel |
| Back I/O Ports | 1x RJ45 |
| PCI - E standards | PCI-E 3.0 |
| Socket Type | LGA 2011-3 |
| High-concerned chemical | none |
| Usage Scenario | Gaming |
| Usage Scenario | Audio & Video |
| Usage Scenario | Office |
| Usage Scenario | Video Production |
| Usage Scenario | others |
| Origin | Mainland China |
| Number of PCIe x 8 | 0 |
| Number Of Memory Slots | 4 |
| Ports | PCI-Express X1 |
| Support USB Type | USB 2.0 |
| Number of PCIe x 4 | 0 |
| Number of PCIe x 16 | 1 |
| Onboard Connectors & Header | 24-pin Main Power Connector |
| Onboard Connectors & Header | CPU Fan Connector(s) |
| Onboard Connectors & Header | AAFP Connector |
| Memory channel | Double |
| Audio Channels | 2.1 |
| SATA RAID | 0 |
| Max LAN Speed | 1000Mbps |
| Quality Certification | ce |
| Quality Certification | ROHS |
| Number of PCIe x 1 | 1 |
| Form Factor | Micro-ATX |
| Supports M.2 SSD | 2280 |
| Number of M.2 | 1 |
| Choice | yes |
