MACHINIST H61 Motherboard Intel Core I5 3570 CPU LGA 1155 Processor And DDR3 8GB(2*4GB) RAM Memory (Optional Combo)
>>This link offers multiple options. Before making a purchase, please select the configuration you need to proceed with the purchase. ↓
1. Motherboards;

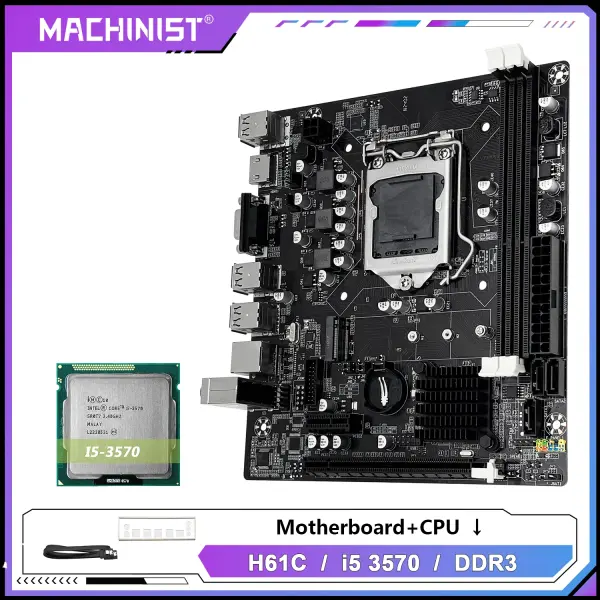

2. Motherboards + CPU;

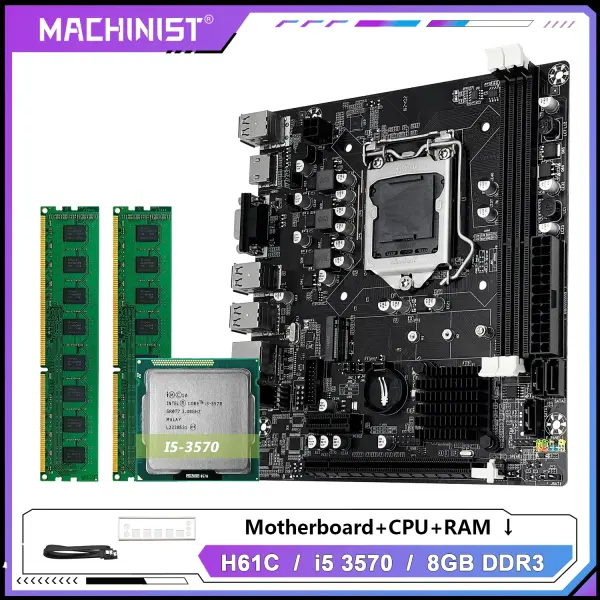

3. Motherboards + CPU + RAM;
>>The package contains:

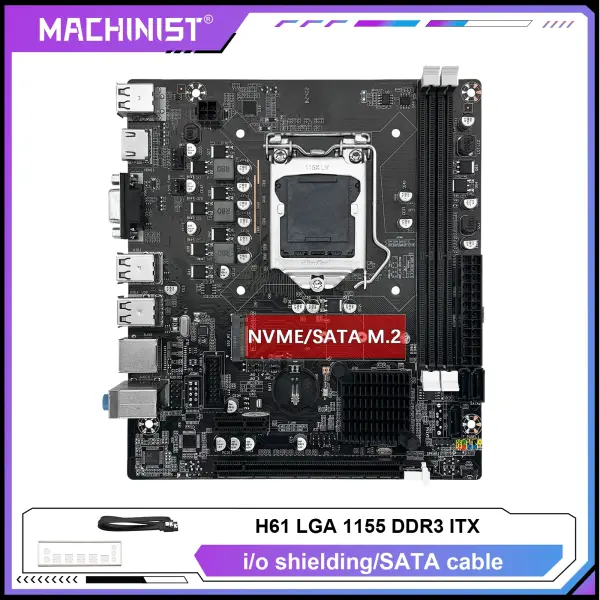

# Main Product: MACHINIST H61C motherboard *1 piece;
Gift accessories: I/O shield, SATA cable.
All samples are manually tested and packaged before sending. If any gifts are missed, please understand!
>>Motherboard information:
Brand: MACHINIST.
Motherboard model: H61C.
Processor: Supports Intel LGA 1155 pin series processors.
Chipset: H61 chipset.
>>Memory:
Technology: Dual-channel DDR3. Supports 1333/1600/1866 MHZ.
Maximum capacity: 32GB (16G x 2).
Memory slot: DDR3.
Supported memory types: Only DDR3 desktop memory is supported.
Please use international brands such as Samsung, Kingston, Sandee, Micron, Hynix, etc. Other brands may not be compatible.
>>Post-i /O:
Display interface: Supports VGA & HDMI display.
USB interface: 6 USB 2.0 ports .
Ethernet: 100M network adapter port.
Audio: 1 (microphone input, line output, line input).
>>Internal connector:
SATA interfaces: 3 (SATA2.0).

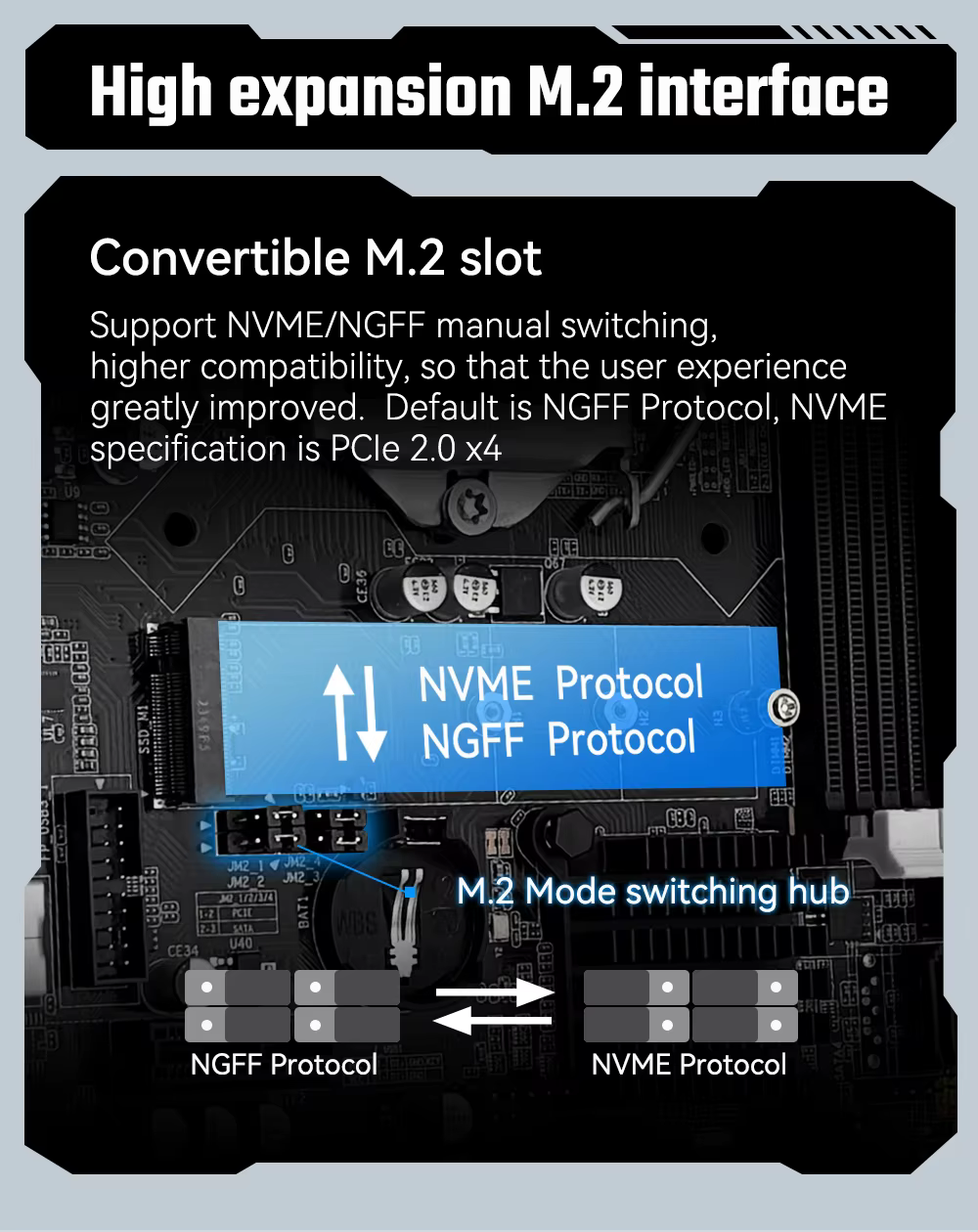

M.2:2 (NVME/SATA, default sata interface).
PCIe: 1 X16 PCIe and 1 X1 PCIe.

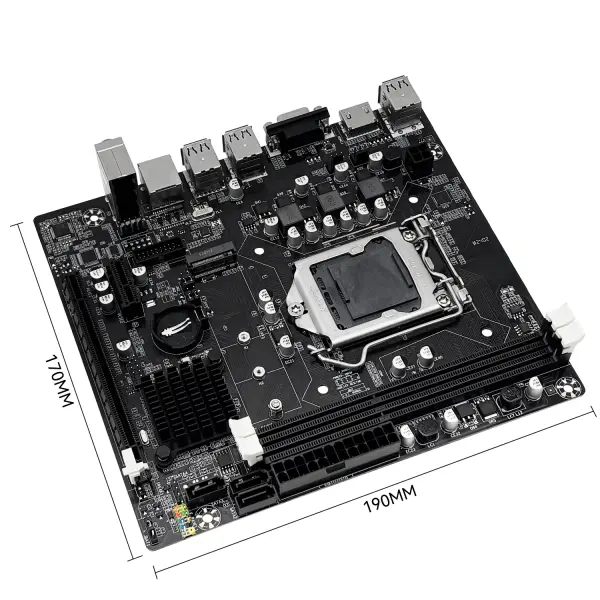

External dimensions
Size: 190mm*170mm.
Motherboard weight (including packaging) : Approximately 0.7 kilograms.
>>Regarding the tariff issue, please ensure that you can solve the customs clearance problem by yourself. If you cannot, we do not recommend that you purchase goods in our store. We are not responsible for tariffs. Thank you for your understanding.
>>The color of the bottom plate of the tank may vary by batch, but it will not affect the use of the product. The product is constantly being optimized and upgraded.
>> Note:
(2) Due to manual measurement, an error of 1-3mm is allowed.
(3) Due to different displays and different lighting conditions, the picture may not show the actual color of the object. Thank you for your understanding.
(4) This platform requires a powerful power supply. Please ensure that your power supply is sufficient to support this platform. (At least 500w brand power supply)
(5) The battery in the motherboard photo is not included. It will be removed before shipment because the logistics department requires that the use of this battery be prohibited.
| Brand Name | MACHINIST |
|---|---|
| Chipset | H61 |
| Onboard LAN | 1x RJ45 |
| Maximum Ram Capacity | 16 GB |
| Material | others |
| Battery Included | no |
| Processor compatibility | Intel Core |
| With CPU | No |
| Support Memory Type | DDR3 |
| Number of PCI | 0 |
| Special Features | NONE |
| Storage Interface Type | M.2 (NVMe) |
| Storage Interface Type | M.2 (SATA) |
| Package | Yes |
| RAID Supported | no |
| Application | Desktop |
| Chipset Manufacturer | Intel |
| Back I/O Ports | 1x RJ45 |
| PCI - E standards | PCI-E 2.0 |
| Socket Type | LGA 1155 |
| High-concerned chemical | none |
| Usage Scenario | Audio & Video |
| Usage Scenario | Office |
| Usage Scenario | Video Production |
| Usage Scenario | others |
| Origin | Mainland China |
| Number of PCIe x 8 | 0 |
| Number Of Memory Slots | 2 |
| Ports | M.2 |
| Support USB Type | USB 2.0 |
| Number of PCIe x 4 | 0 |
| Number of PCIe x 16 | 1 |
| Onboard Connectors & Header | 24-pin Main Power Connector |
| Onboard Connectors & Header | CPU Fan Connector(s) |
| Onboard Connectors & Header | 4-pin +12V Power Connector |
| Audio Channels | 2.1 |
| Max LAN Speed | 100Mbps |
| Quality Certification | ce |
| Quality Certification | ROHS |
| Number of PCIe x 1 | 1 |
| Form Factor | Mini-ITX |
| Supports M.2 SSD | 2280 |
| Number of M.2 | 1 |
| Choice | yes |
