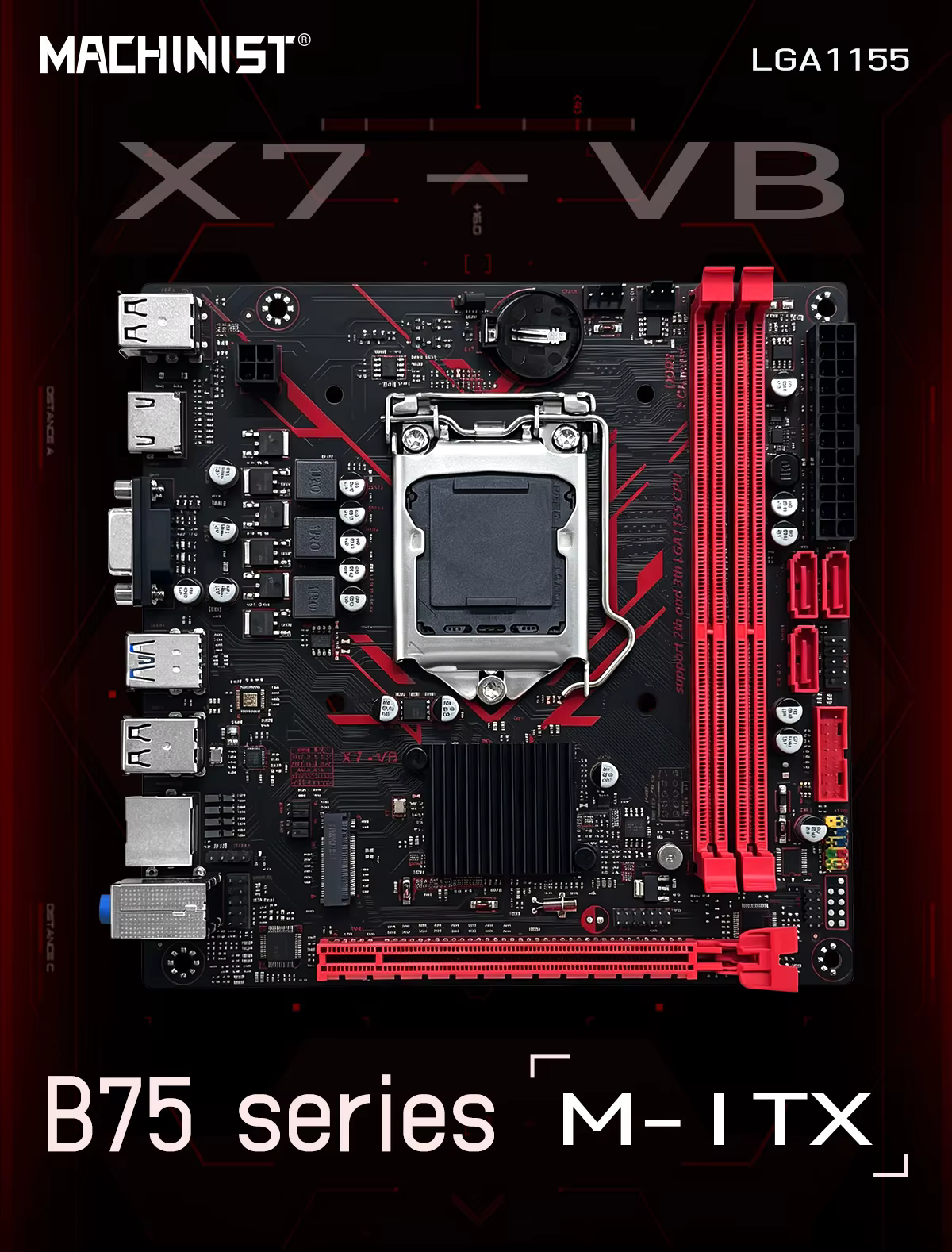

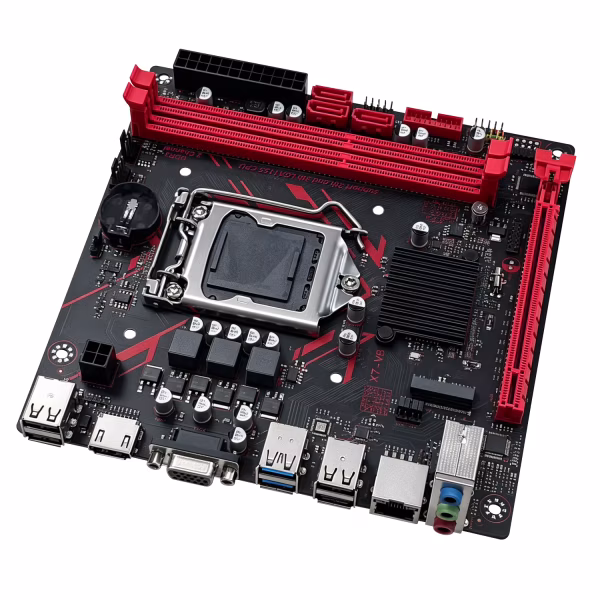

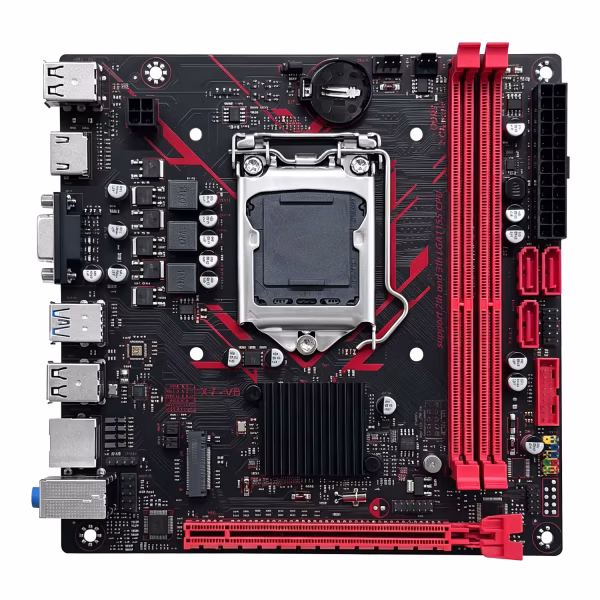

MACHINIST B75 X7 VB Motherboard LGA1155 Support Dualchannel DDR3 RAM CoreI3/I5/I7 2/3Gen CPU for Gaming Computer USB3.0 SATA3.0

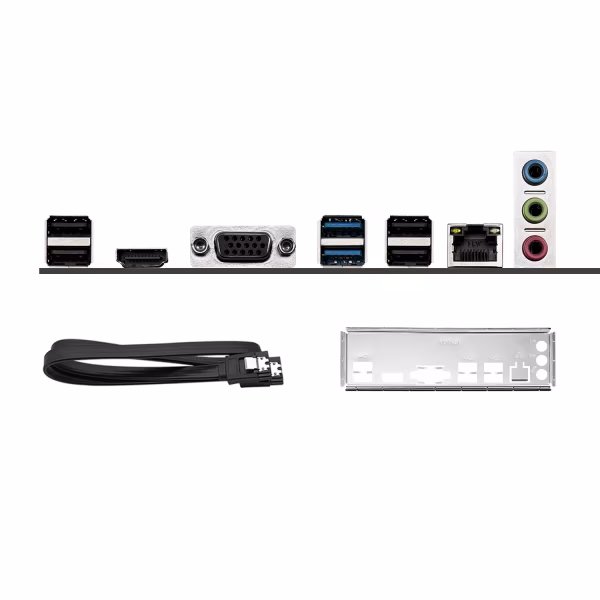

Package Contents: B75 X7 VB Motherboard *1
I/O shield *1
SATA cable *1

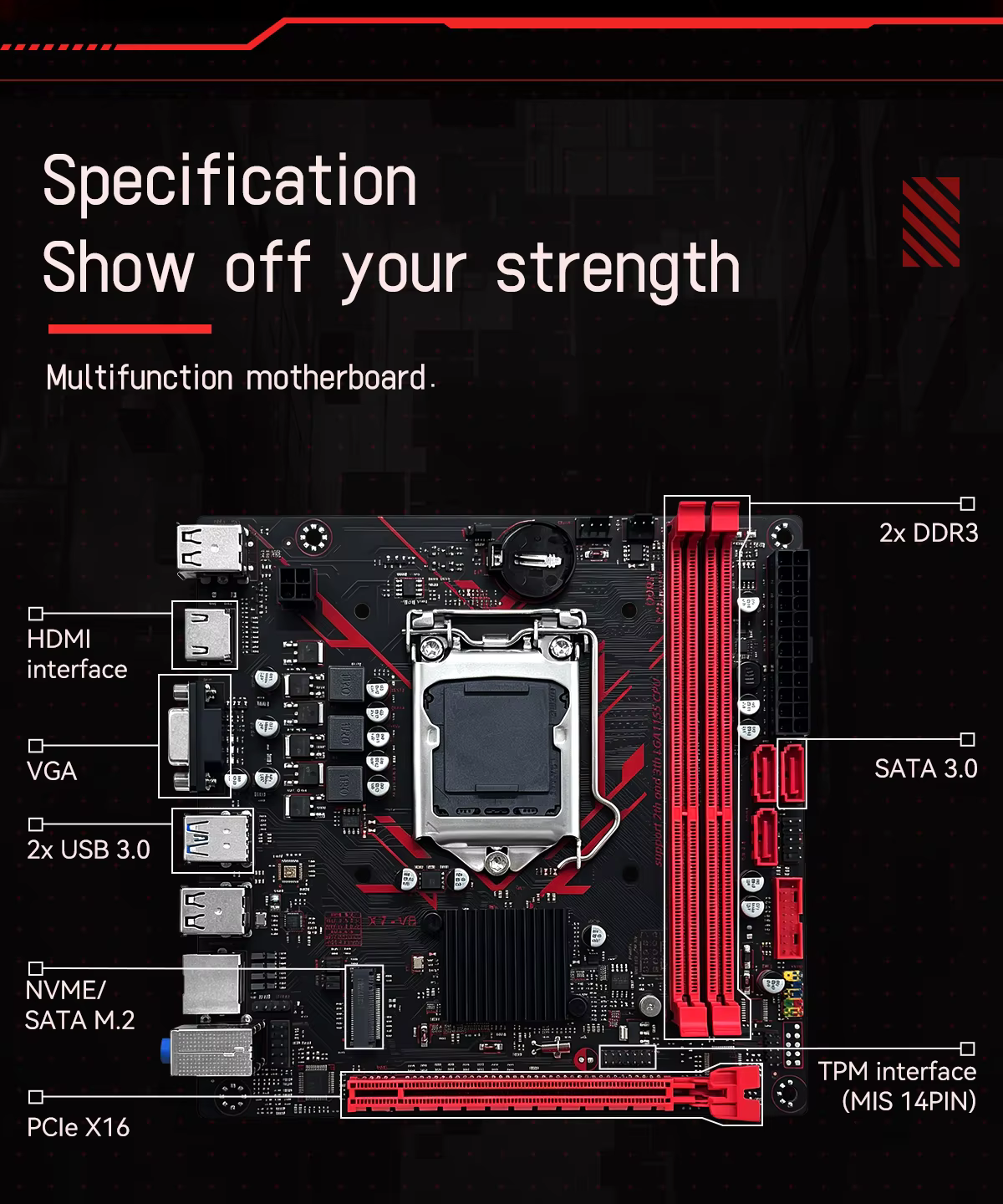

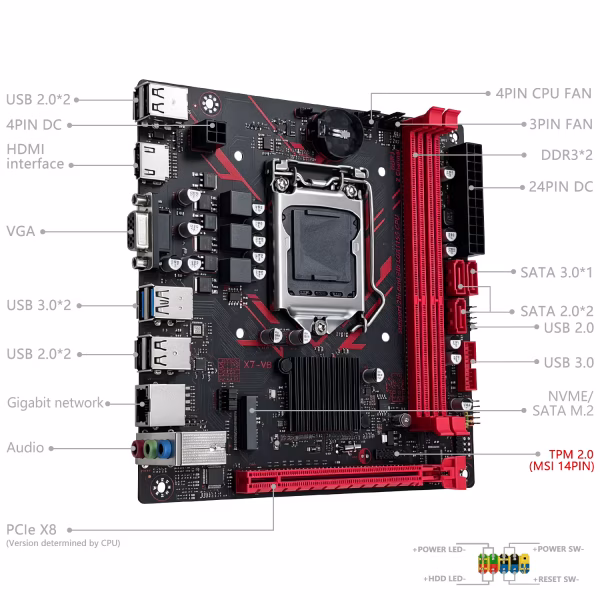

Motherboard Specifications:
Brand: MACHINIST
Model: B75 X7 VB
Chipset: Intel Q77 (not fixed, 7 series chipset, compared to H61, mainly adds USB 3.0 and SATA 3.0)
Supported CPUs: Intel LGA1155 socket, Core 2nd-3rd generation, Xeon E3-1200 series

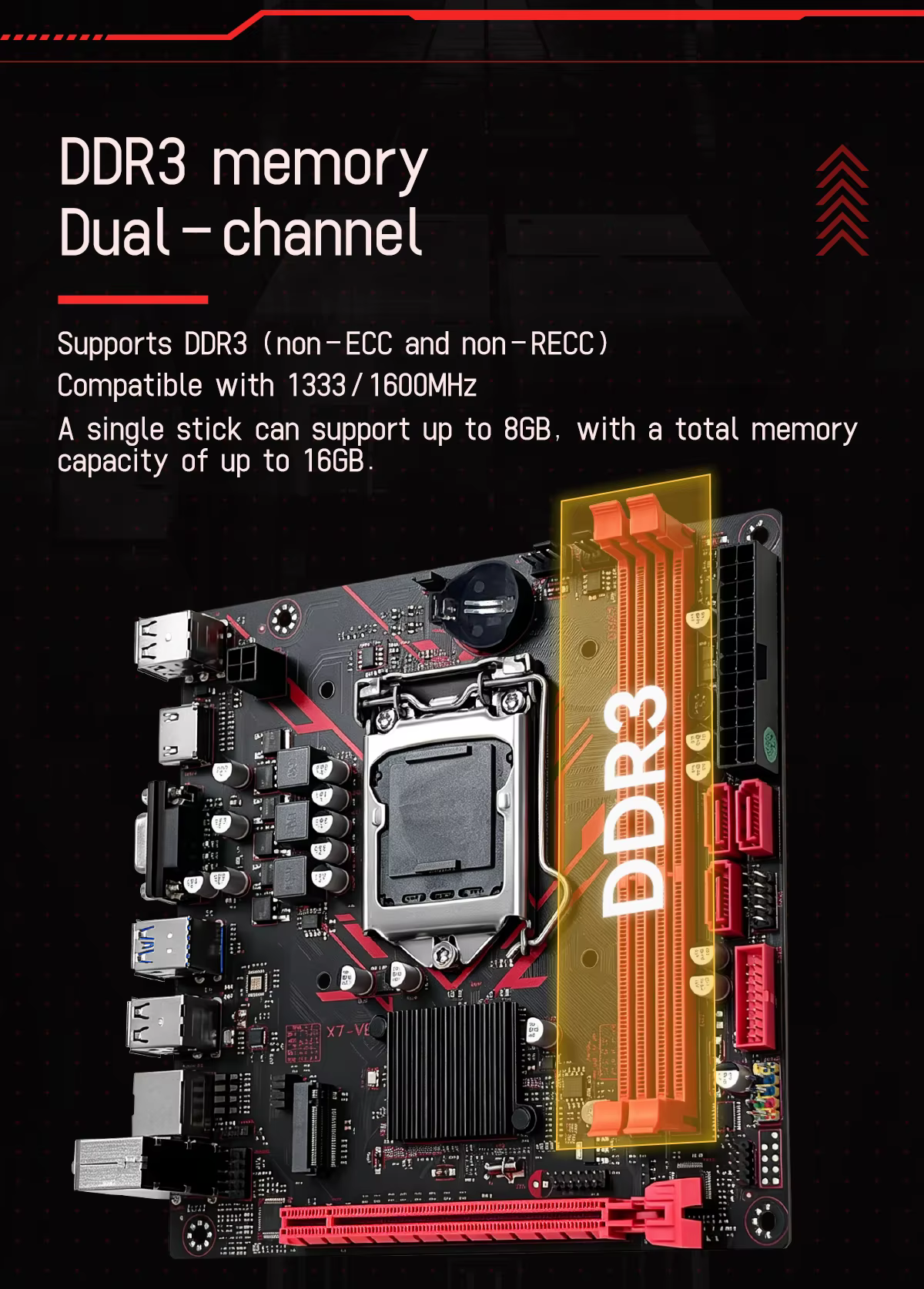

Supported Memory: Desktop DDR3, dual channel, 1333/1600 frequency, maximum supported capacity 8GB*2=16GB

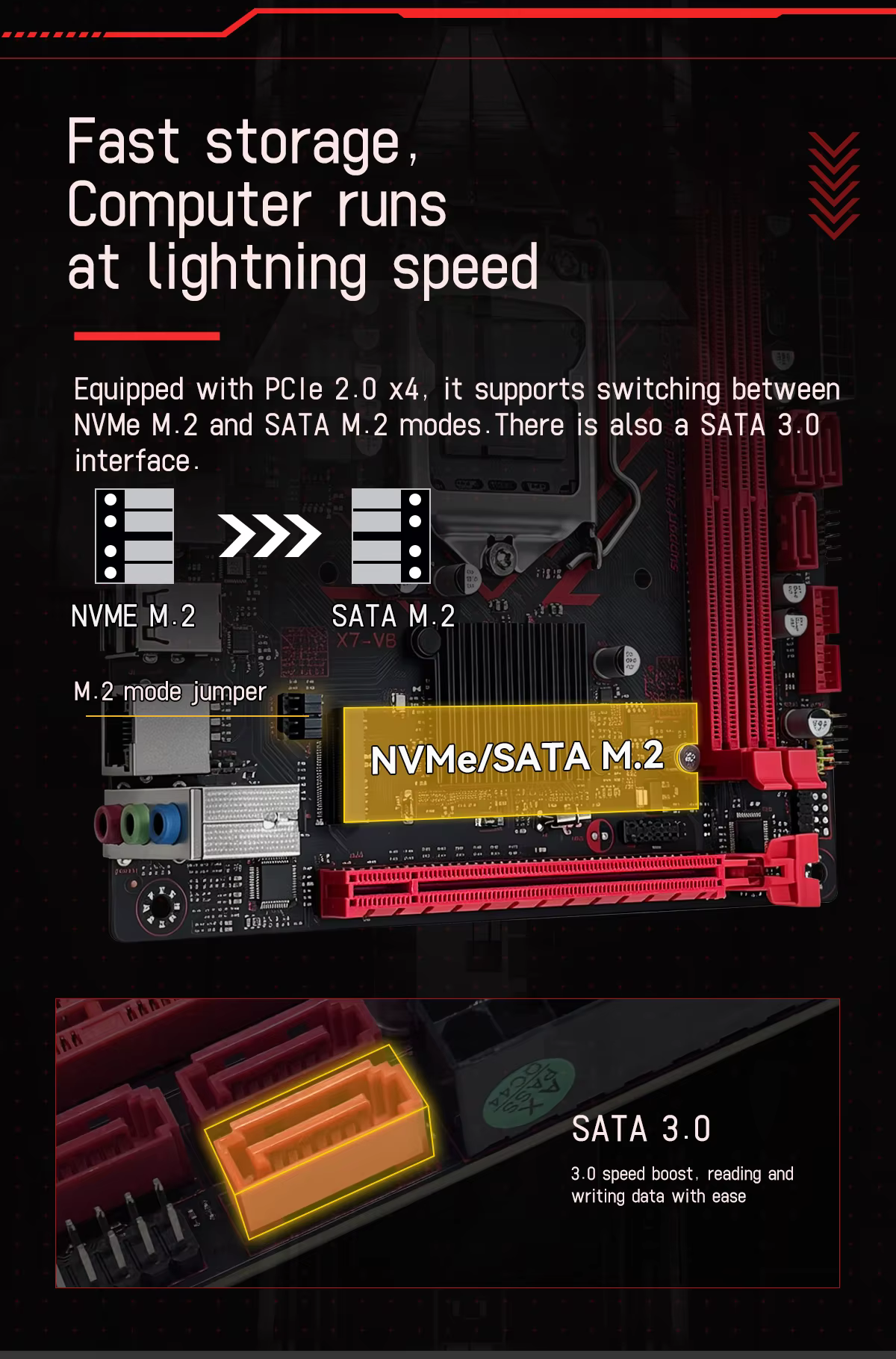

Supported Hard Drives: SATA 2.0*2 (theoretical speed 300MB/s), SATA 3.0*1 (theoretical speed 600MB/s), NVMe M.2*1 (PCIe 0.0x4 specification, theoretical speed 1600MB/s), NGFF M.2 (switchable via jumper cap, theoretical speed 300M/S)
Sound Card Model: Realtek ALC887 High-Fidelity Sound Card

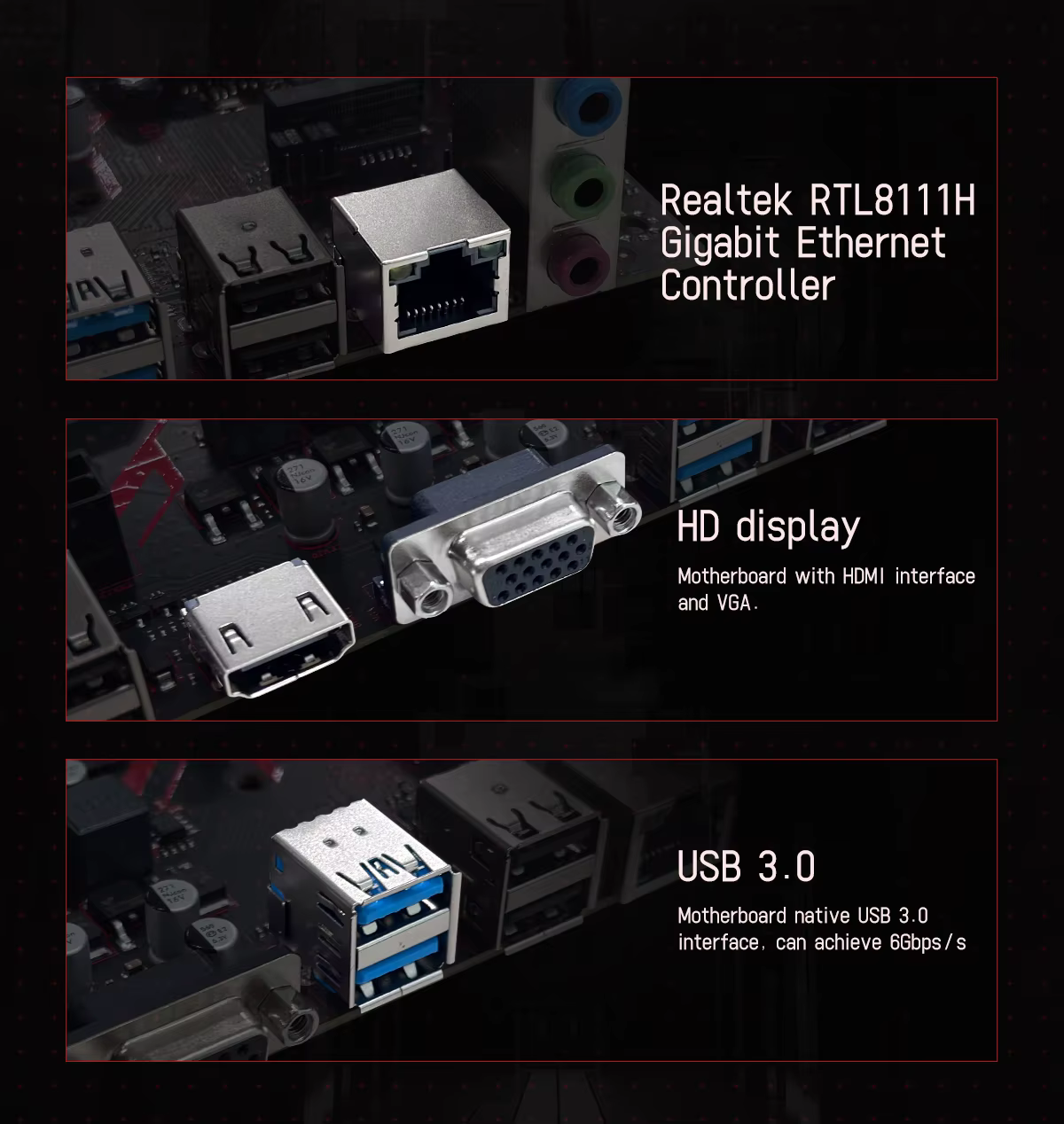

Network Card Model: Realtek 8111H Gigabit Ethernet Adapter

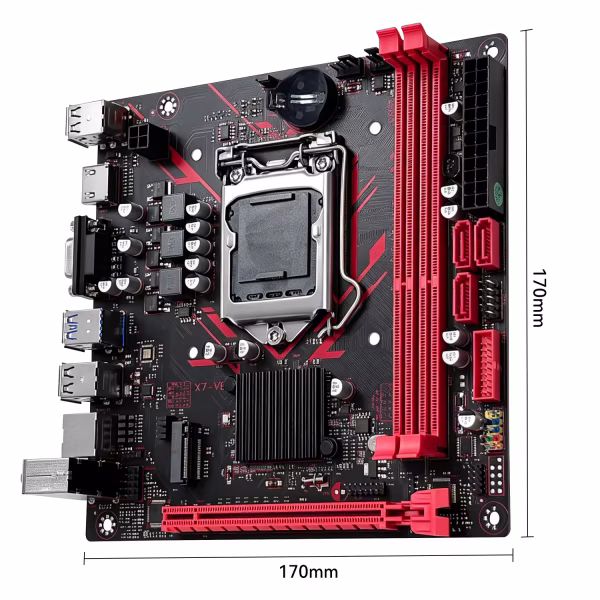

Dimensions: ITX, 17*17 cm
Weight (excluding packaging): 0.55kg
BIOS Boot Shortcut Key: F11
How to enter BIOS: Press the power button and then repeatedly press the DEL key (pressing the DEL key on the numeric keypad will not work)
Supports Secure Boot and TPM
| Brand Name | MACHINIST |
|---|---|
| MACHINIST Model | B75 LGA 1155 |
| Chipset | Intel Others |
| Onboard LAN | 1x RJ45 |
| Maximum Ram Capacity | 128 GB |
| Battery Included | no |
| Processor compatibility | Intel Core i3 |
| Processor compatibility | Intel Core i7 |
| With CPU | No |
| Support Memory Type | DDR3 |
| Number of PCI | 1 |
| Special Features | RGB |
| Storage Interface Type | SATA |
| Storage Interface Type | M.2 (NVMe) |
| Package | Yes |
| RAID Supported | no |
| Application | Desktop |
| Chipset Manufacturer | Intel |
| Back I/O Ports | 1x RJ45 |
| PCI - E standards | PCI-E 3.0 |
| Socket Type | LGA 1155 |
| High-concerned chemical | none |
| Usage Scenario | Gaming |
| Usage Scenario | Audio & Video |
| Usage Scenario | Office |
| Usage Scenario | Video Production |
| Usage Scenario | others |
| Origin | Mainland China |
| Number of PCIe x 8 | 0 |
| Number Of Memory Slots | 2 |
| Ports | HDMI |
| Form Factor | CeB |
| Support USB Type | USB 2.0 |
| Support USB Type | USB 3.0 |
| Number of PCIe x 4 | 0 |
| Number of PCIe x 16 | 1 |
| Onboard Connectors & Header | 24-pin Main Power Connector |
| Onboard Connectors & Header | CPU Fan Connector(s) |
| Memory channel | Double |
| Number of SATA Ports | 2 |
| Audio Channels | 2.1 |
| Max LAN Speed | 1000Mbps |
| Quality Certification | ce |
| Quality Certification | ROHS |
| Number of PCIe x 1 | 0 |
| Certification | RoHS |
| Certification | CE |
| Form Factor | Mini-ITX |
| Supports M.2 SSD | 2280 |
| Number of M.2 | 1 |
| Choice | yes |
