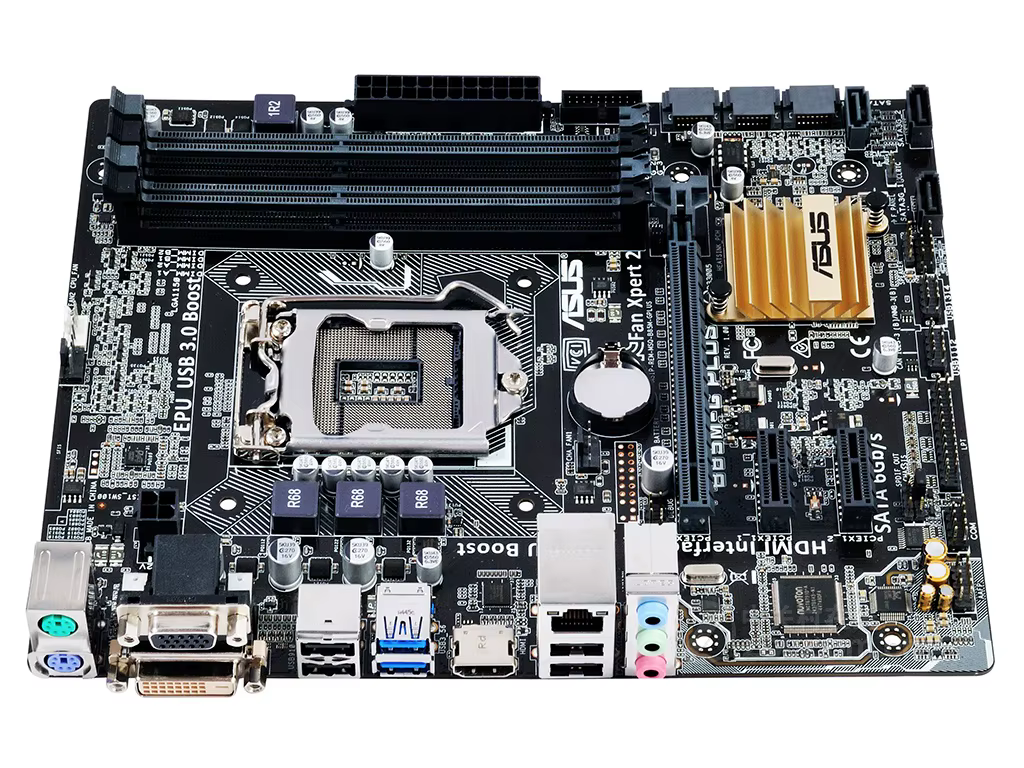

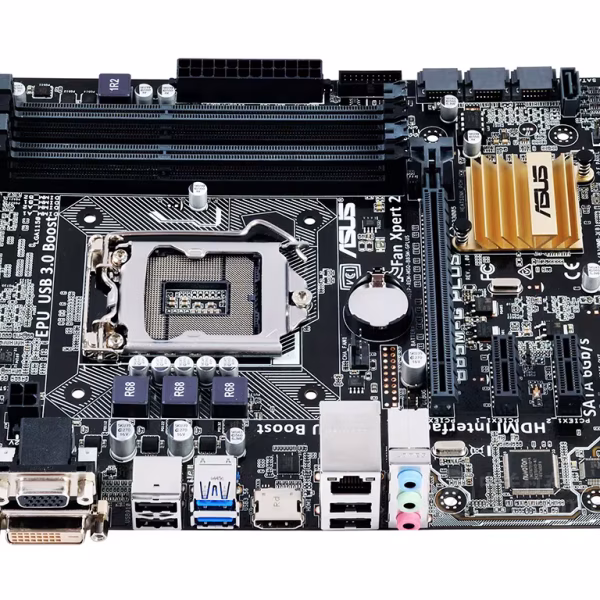

Asus B85M-G PLUS Intel B85 placa base de escritorio Original LGA 1150 Core i7 i5 i3 DDR3 32G usada

NOTE：

1. We sell Used motherboards. Not a new motherboard. The uploaded pictures are reference pictures. Some traces of use and a little rust can not be avoided. But we will try to choose a clean motherboard for you.

2. The motherboard shall be tested at least twice before delivery. The test process will be recorded.

3. If the motherboard is artificially damaged or burned, it does not support after-sales, so it is a novice buyer. If you do not understand installation, please consult a professional.

4. Some models of motherboards have different version numbers, but there is no obvious difference. So we send the same model by default. If you need a special version number, please contact me before purchasing.

5. Due to aviation safety problems, the motherboard cannot carry batteries.

Parameters(for reference only, the detailed parameters shall be subject to the official website):

Motherboard chip

integrated chip Sound card / network card

Main chipset Intel B85

Chipset description Intel B85 chipset

Display chip CPU built-in display chip (CPU support required)

Audio chip Integrated Realtek alc887-vd2 8-channel sound chip

Chip card Onboard Realtek 8111gr gigabit network card

Processor specifications

CPU type Core i7/i5/i3/Pentium/Celeron

CPU slot LGA 1150

CPU description Supports Intel 22nm processors

Memory specification

Memory type four × DDR3 DIMM

Maximum memory capacity 32GB

Memory description Support dual channel DDR3 1600 / 1333 / 1066MHz memory

Storage expansion

PCI-E standard PCI-E 3.0

PCI-E slot one × PCI-E x16 graphics card slot, 2 × PCI-E X1 slot

Storage interface four × SATA III interface, 2 × SATA II interface

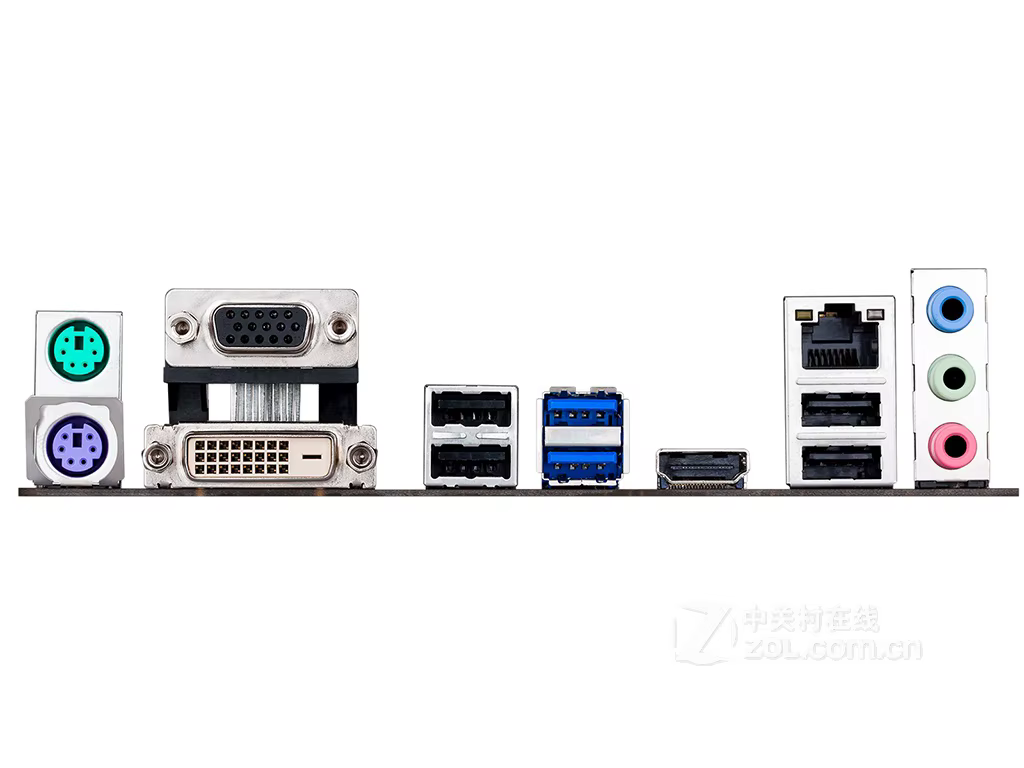

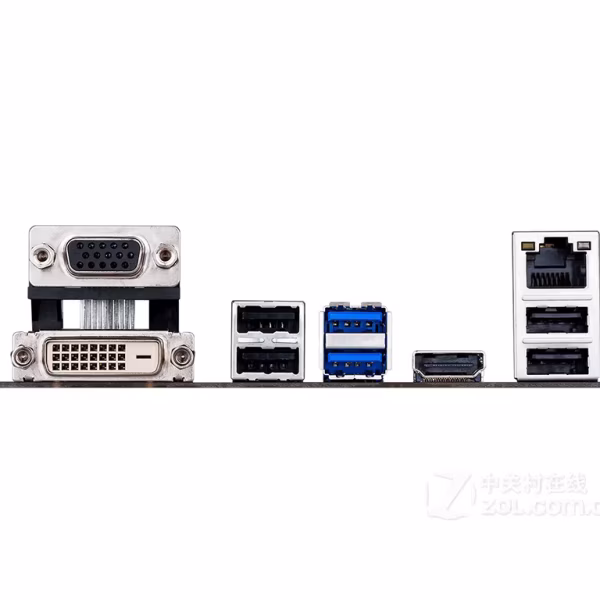

I / O interface

USB interface four × USB3.0 interface (2 built-in + 2 backplane), 8 × USB2.0 interface (4 built-in + 4 backplane)

Video interface one × VGA interface, 1 × DVI interface, 1 × HDMI interface

Power interface One 4-pin, one 24 pin power interface

Other interfaces one × RJ45 network interface, 3 × Audio interface, 1 × PS / 2 mouse, 1 × PS / 2 keyboard interface

Plate type

Main board type Micro ATX board type

Overall dimension: 23.3 × 19.3cm
