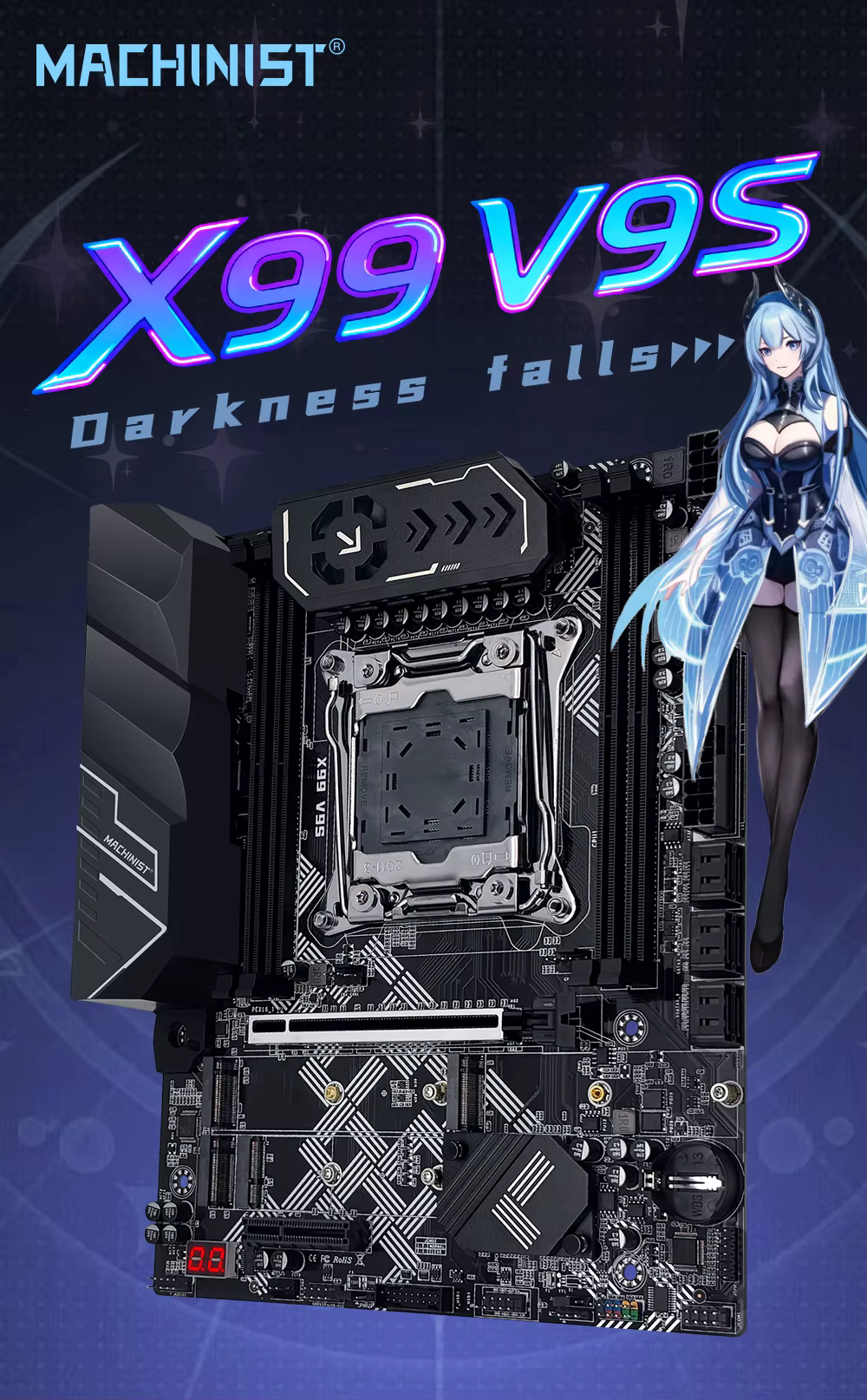

MACHINIST X99 V9S Motherboard LGA2011-3 Support Intel Xeon E5 2680 2690 2650 V4 CPU Processor DDR4 RAM M-ATX 3xNVME M.2 SATA3.0
> > The TPM interfaces of the X99 V9S and X99 U9 models can only be installed using the TPM2.0 accessory suitable for ASUS 14-pin.

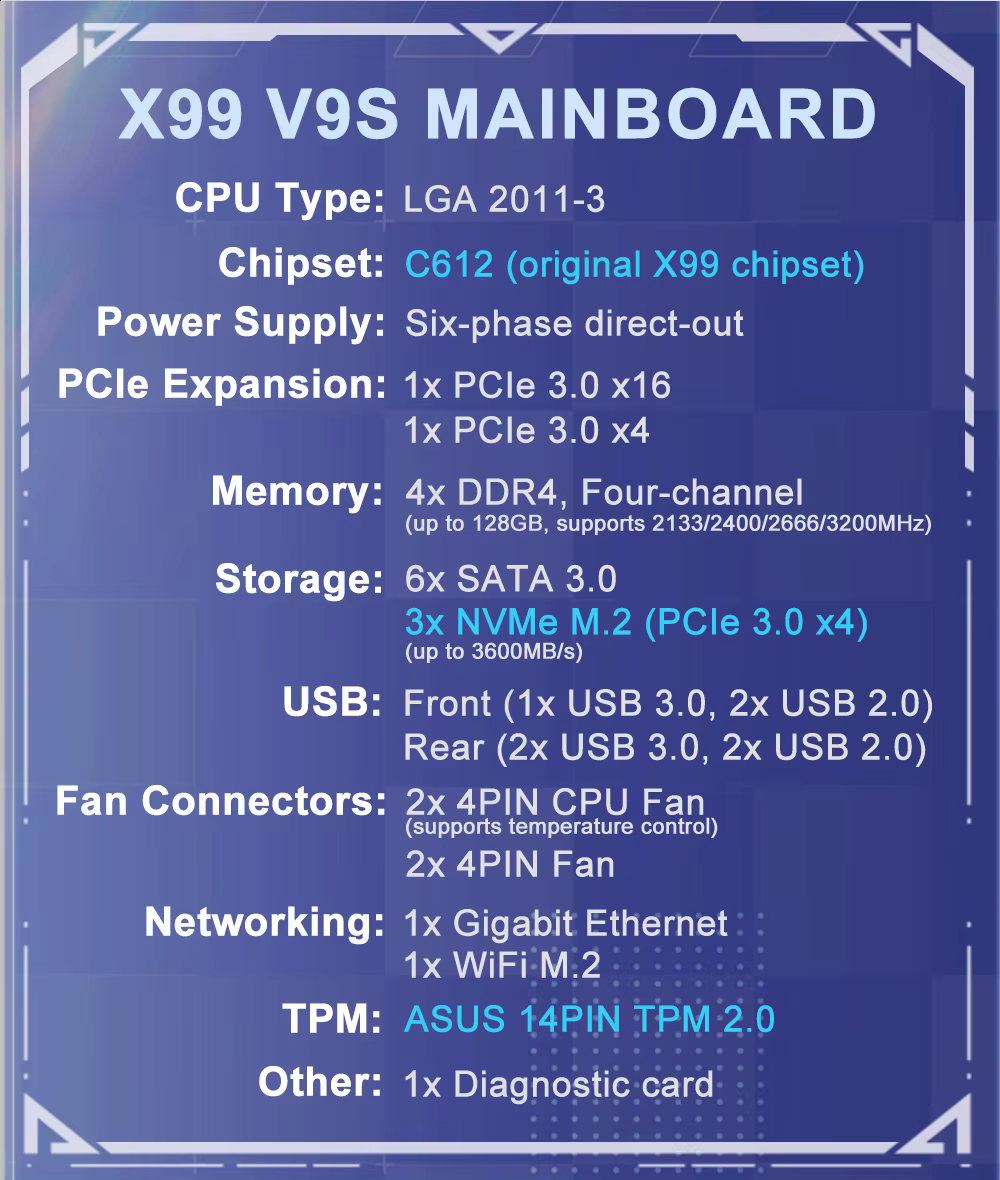

>> Motherboard information:
Brand :MACHINIST.
Motherboard model :X99 V9S .
Processor :Intel LGA 2011-3 pin series processor.
Chipset: X99/C612 Chipset.
> > Memory:
Technology: Four-channel DDR4.
The maximum capacity is 128GB (32G x 4).
Memory slot :4*DDR4.
Supported memory types: Supports DDR4 desktop memory and server memory.
Please use international brands such as Samsung, Kingston, Sandy, Micron and Hynix. Other brands may be incompatible."
>> Others:

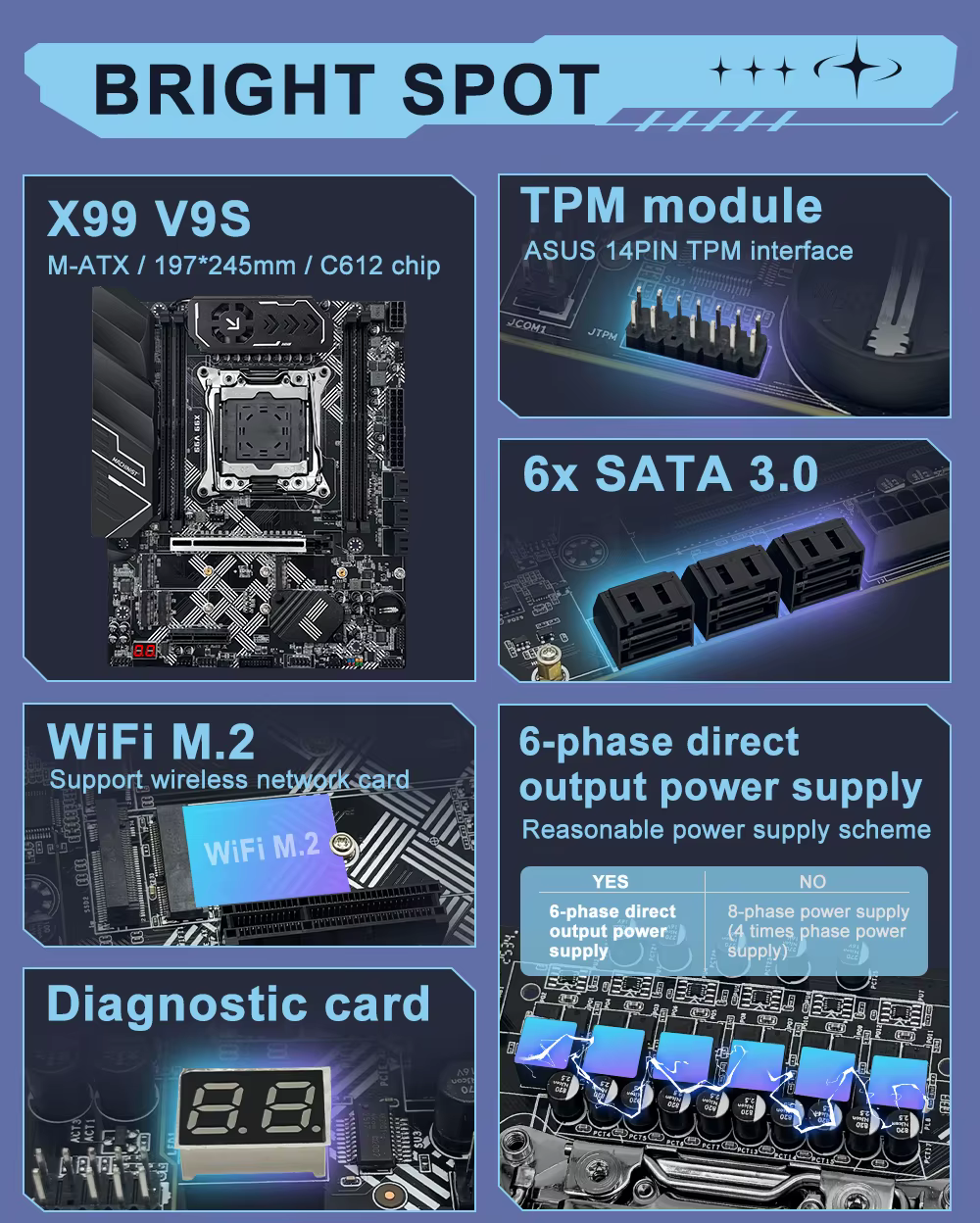

Diagnosis card :1;
TPM interface: Applicable to ASUS 14-pin TPM2.0;

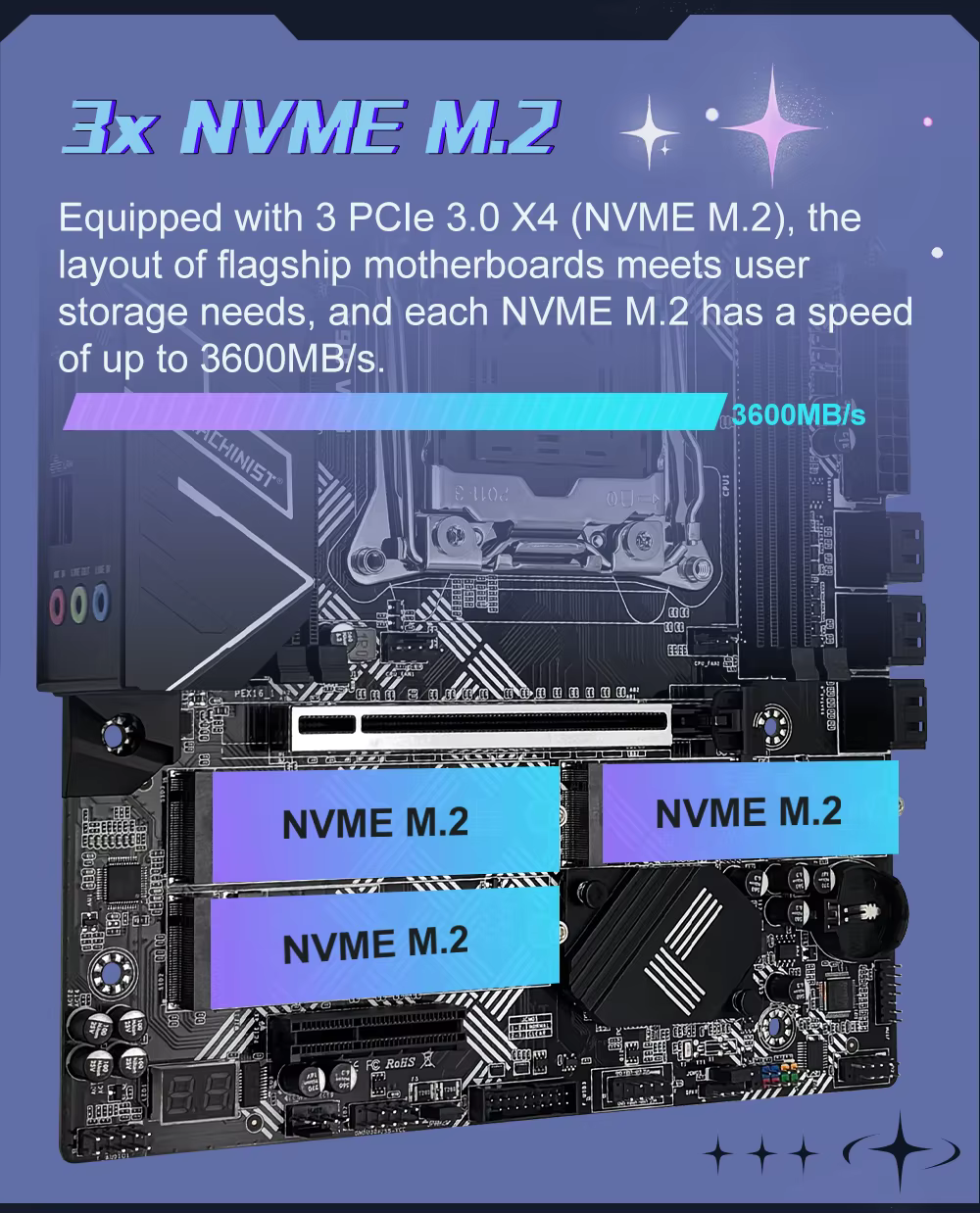

M.2 interface: 3 NVME M.2 interfaces;
WIFI: 1 NGFF M.2;
USB interface :4 USB2.0 ports; Four USB3.0 ports;
Ethernet: Gigabit network card;
PCIe: 1 PCIe 16x, 1 PCIe 4x;
SATA interface :6 (6 SATA3.0);
Overall dimensions :245mm * 197mm.
| Brand Name | MACHINIST |
|---|---|
| Chipset | C612 |
| Onboard LAN | 1x RJ45 |
| Maximum Ram Capacity | 128 GB |
| Material | others |
| Battery Included | no |
| Processor compatibility | Intel Xeon |
| With CPU | No |
| Support Memory Type | DDR4 |
| Number of PCI | 2 |
| Special Features | Support for Overclocking |
| Storage Interface Type | SATA 3 |
| Storage Interface Type | M.2 (NVMe) |
| Package | Yes |
| RAID Supported | Yes |
| Application | Desktop |
| Chipset Manufacturer | Intel |
| Back I/O Ports | 1x RJ45 |
| Back I/O Ports | PS/2 |
| PCI - E standards | PCI-E 3.0 |
| Socket Type | LGA 2011 |
| High-concerned chemical | none |
| Usage Scenario | Gaming |
| Usage Scenario | Audio & Video |
| Usage Scenario | Office |
| Usage Scenario | Video Production |
| Usage Scenario | others |
| Origin | Mainland China |
| Number of PCIe x 8 | 0 |
| Number Of Memory Slots | 4 |
| Ports | M.2 |
| Form Factor | CeB |
| Support USB Type | USB 3.0 |
| Support USB Type | USB 2.0 |
| Number of PCIe x 4 | 0 |
| Number of PCIe x 16 | 1 |
| Onboard Connectors & Header | 24-pin Main Power Connector |
| Onboard Connectors & Header | CPU Fan Connector(s) |
| Onboard Connectors & Header | AAFP Connector |
| Memory channel | Four |
| Number of SATA Ports | 9 |
| SATA RAID | 0 |
| SATA RAID | 1 |
| SATA RAID | 5 |
| Max LAN Speed | 10000Mbps |
| Quality Certification | ce |
| Quality Certification | ROHS |
| Number of PCIe x 1 | 0 |
| Certification | RoHS |
| Certification | CE |
| Form Factor | Micro-ATX |
| Supports M.2 SSD | 2280 |
| Number of M.2 | 4 |
