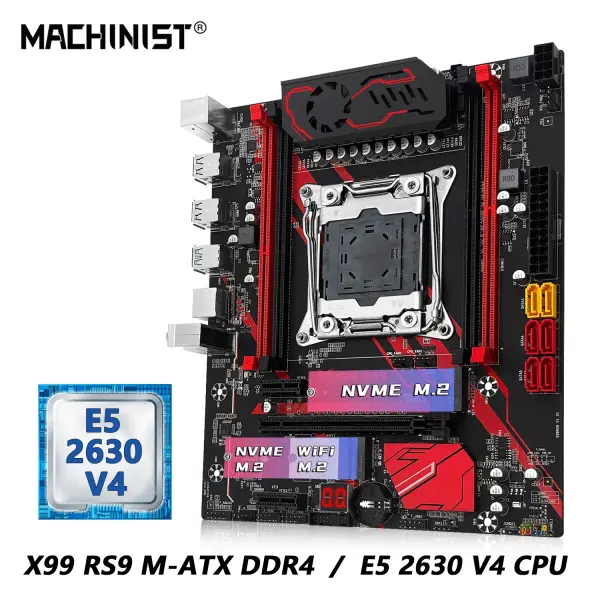

MACHINIST X99 RS9 Motherboard Kit With Xeon E5 2630 V4 / 2650 V4 / 2680 V4 CPU LGA 2011-3 Support DDR4 RAM Four Channels USB3.0

> > There are multiple configuration options available for the link. Before purchasing, please select the desired configuration for purchase. Purchase a single motherboard. We do not ship CPUs and memory. ↓ ↓ ↓
1. Motherboard;

2. Motherboard + CPU;

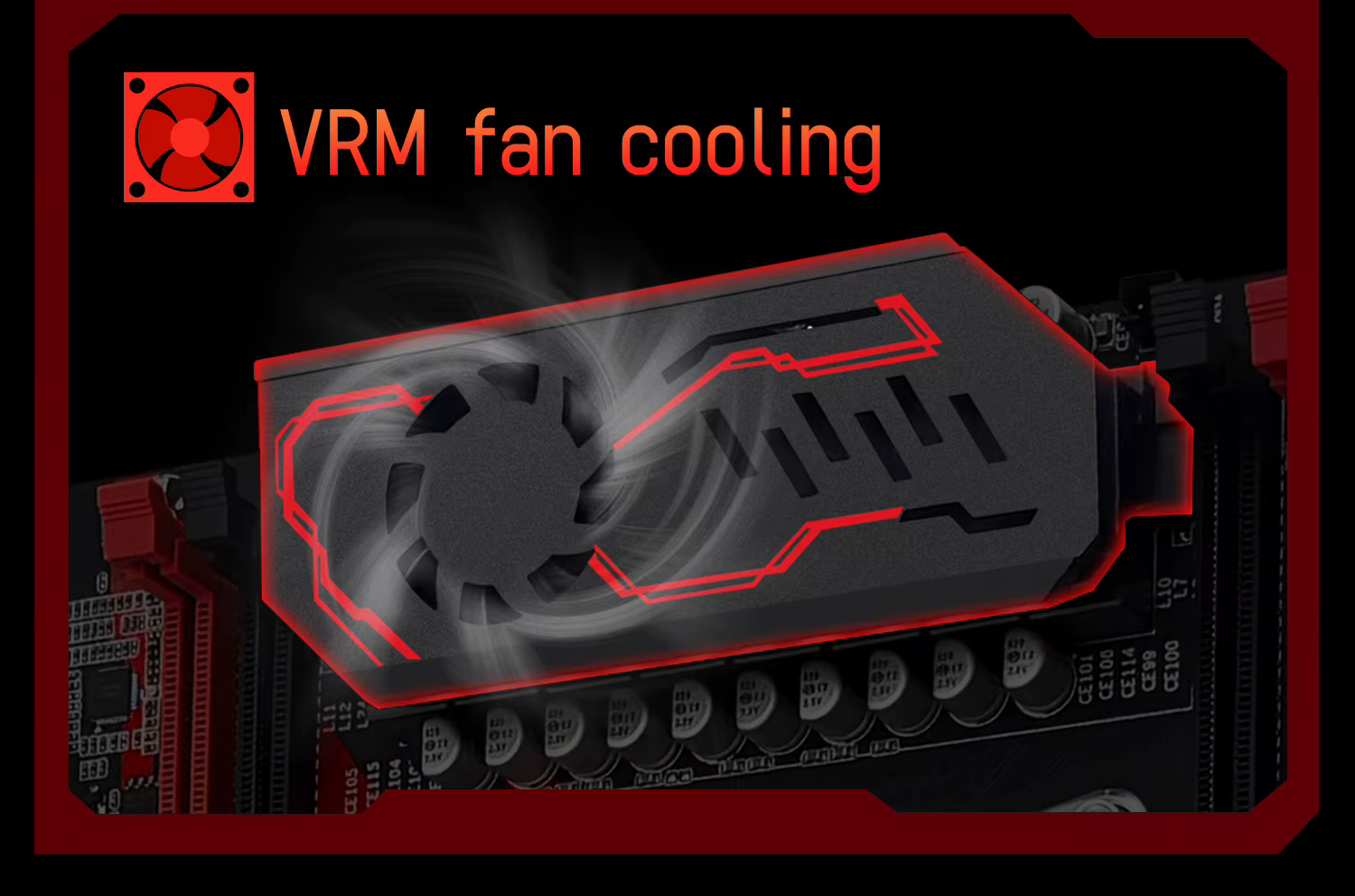

> > The motherboard is currently only upgraded with MOS cooling fans and does not support TPM 2.0.

> > Motherboard Information:
Brand: MACHINIST;
Motherboard Model: X99 RS9;
Processor: Supports Intel LGA 2011-3 pin series processors;
Chipset: B85/Q87/C226 Chipset;

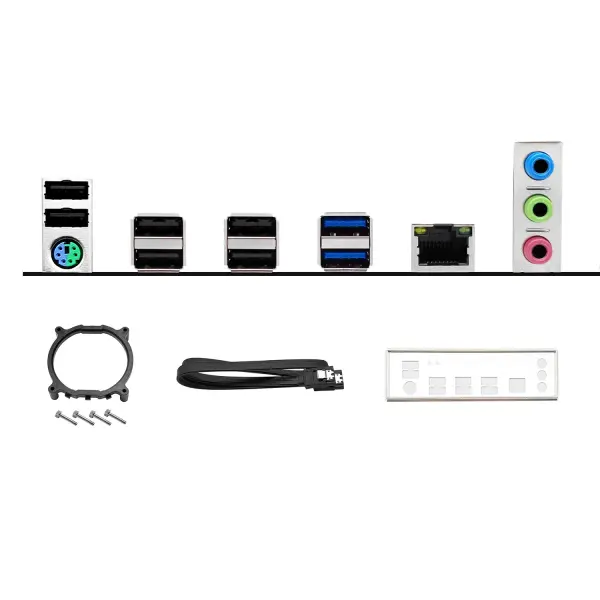

>Giving Away Accessories: I/O Shield *1, SATA Cable *1, LGA 2011 Heat Sink *1.

(All before sending were tested manually and then packaged. If any giveaway items are missing, it cannot be used as a reason for refund. Please understand!)

> > Memory:

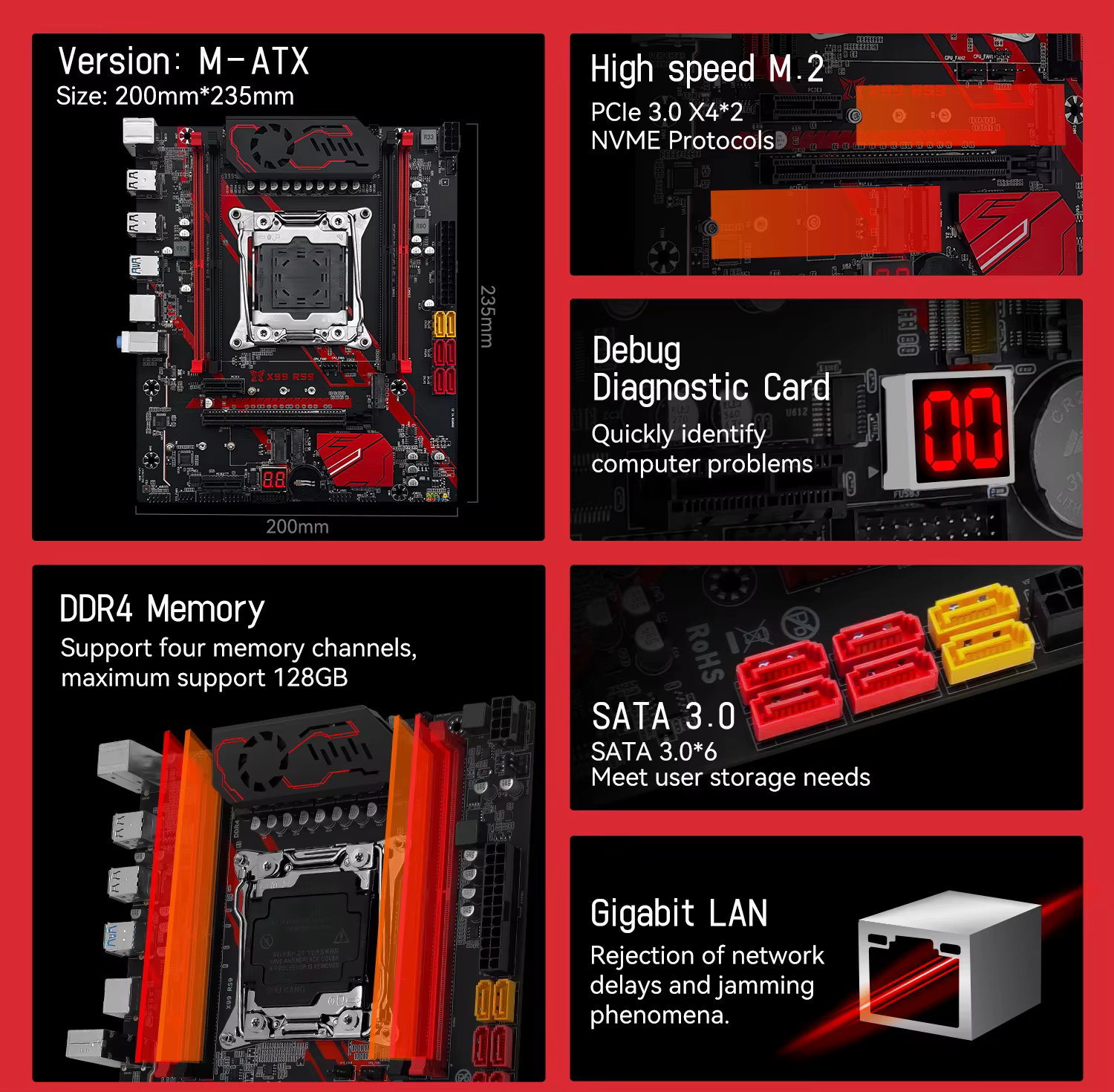

Technology: Quad-channel DDR4. Supports 2133/2400/2666/3000/3200 MHz;
Maximum capacity: 128GB (32G x 4);
Memory slots: 4 * 288 PIN DDR4;

Supported memory types: Supports DDR4 for desktops and servers. (Note: Please use international brands such as Samsung, Kingston, Sandee, Micron, Hynix, etc. Other brands may not be compatible.)

>> Other parameters:

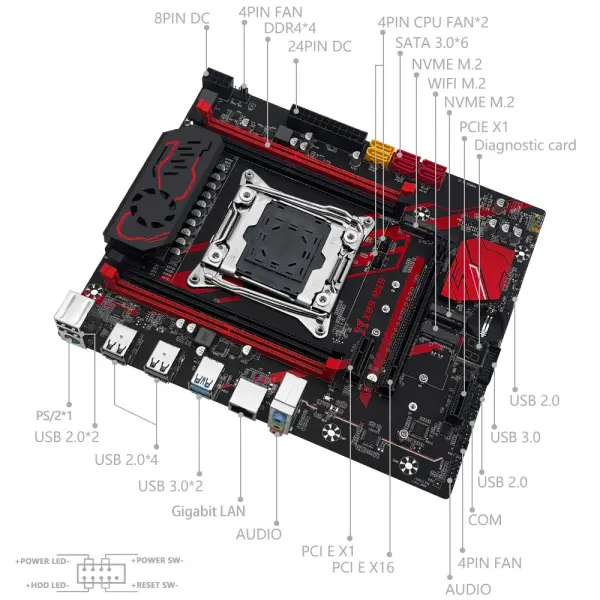

USB interface: 6 USB 2.0 ports, 2 USB 3.0 ports;
Ethernet: 1 Gigabit network card;

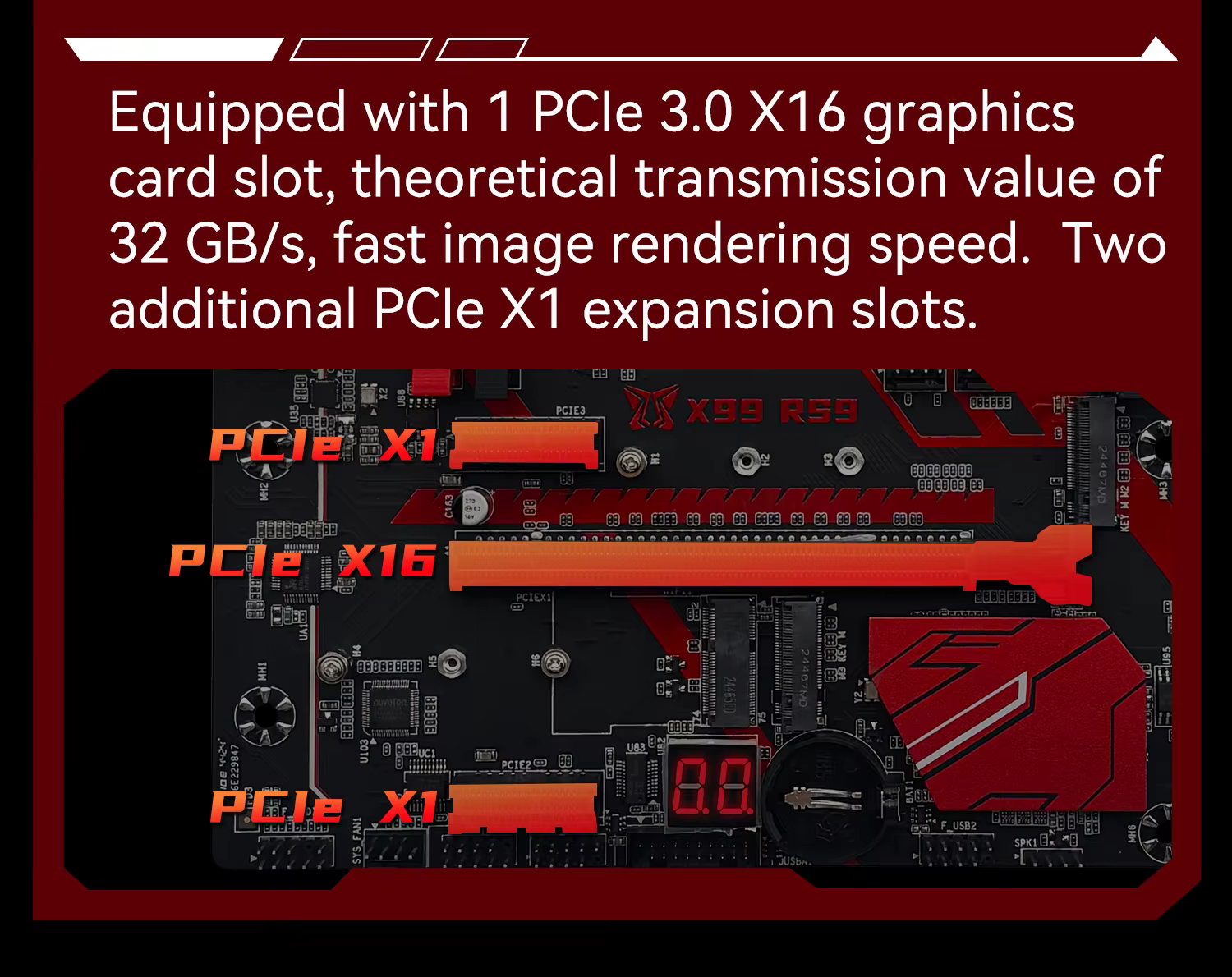

PCIe: 1 PCIe 16x port, 2 PCIe 1x ports;
SATA ports: 6;
Diagnostic card: 1;
M.2 interface: 2 PCIe 3.0 ports, NGFF WIFI.

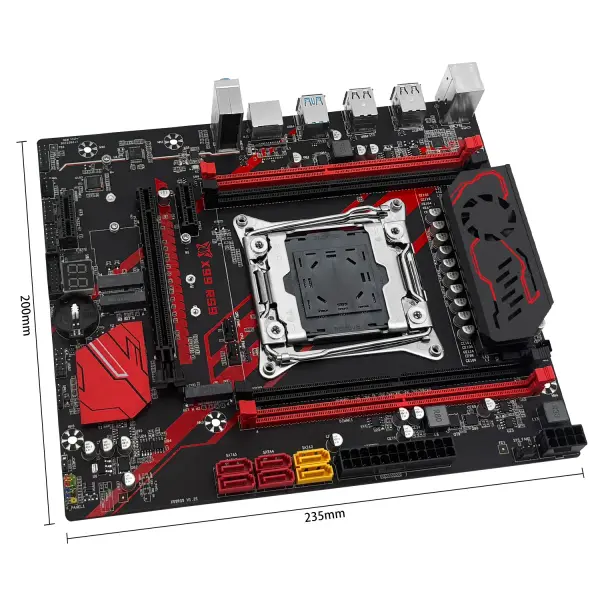

Overall dimensions: 235mm * 200mm.

>> Regarding the tariff issue, please ensure that you can handle the customs clearance by yourself.  If you cannot, we do not recommend that you purchase goods in our store.  We are not responsible for tariffs.  Thank you for your understanding.

>> Note:
(1) The color of the bottom plate of the trough may vary from batch to batch, but it will not affect the use of the product.  The products are constantly being optimized and upgraded.
(2) Due to manual measurement, please allow an error of 1 to 3mm.
(3) Due to different displays and lighting conditions, the picture may not show the actual color of the item.  Thank you for your understanding.
(4) This platform requires a powerful power supply.  Please ensure that your power supply is sufficient to support this platform.  (At least 500w brand power supply
(5) The battery in the motherboard photo is not included.  It will be removed before shipment because the logistics requirements prohibit the use of this battery.
