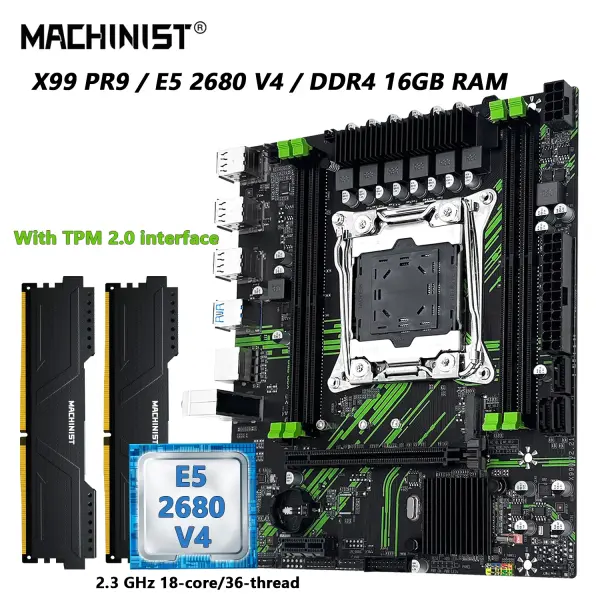

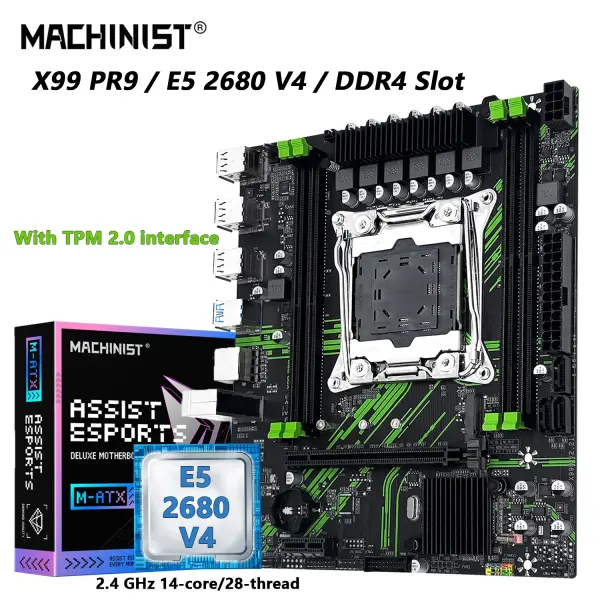

MACHINIST X99 PR9 Motherboard TPM2.0，Optional Kit Set LGA 2011-3 Xeon E5 2680 V4 CPU And DDR4 16GB RAM USB3.0 NVME/SATA M.2
> > There are multiple configurations available for buyers to choose from. Please select the desired combination for purchase. The configurations are as follows:
1. Motherboards.
2. Motherboards + CPU.
3. Motherboards + CPU + RAM.

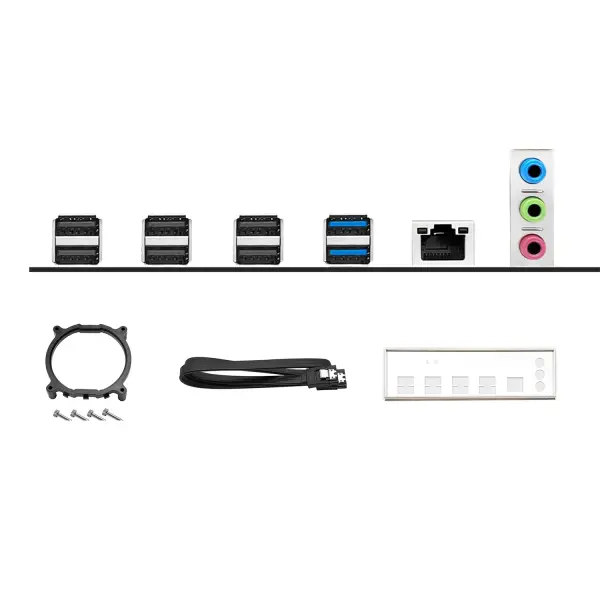

(Additional accessories included: 1 I/O shield, 1 SATA cable, 1 IGA 2011 heat sink. If any of the gifts are lost, it cannot be used as a reason for a refund. Please understand!)

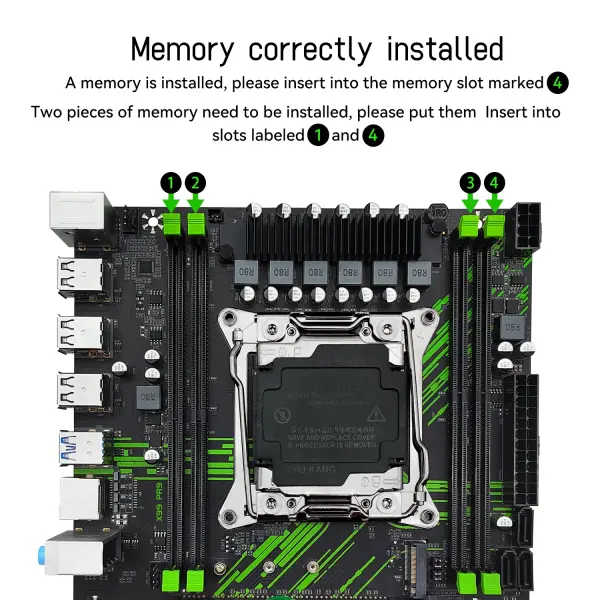

> > When installing the memory modules, please pay attention to the sequence of the memory slot positions, as shown in Figure 2.
> > Motherboard Information:
Brand: MACHINIST ;
Motherboard Model: X99 PR9 ;
Processor: Supports LGA 2011-3 series ;
Chipset: B85/Q87/C226 Chipset ;
Memory: DDR4 Dual Channel, maximum capacity 128GB, supports server and desktop memory.
(***Note: Please use international brands such as Samsung, Kingston, SanDisk, Micron, etc. Other brands may have incompatibility issues.)

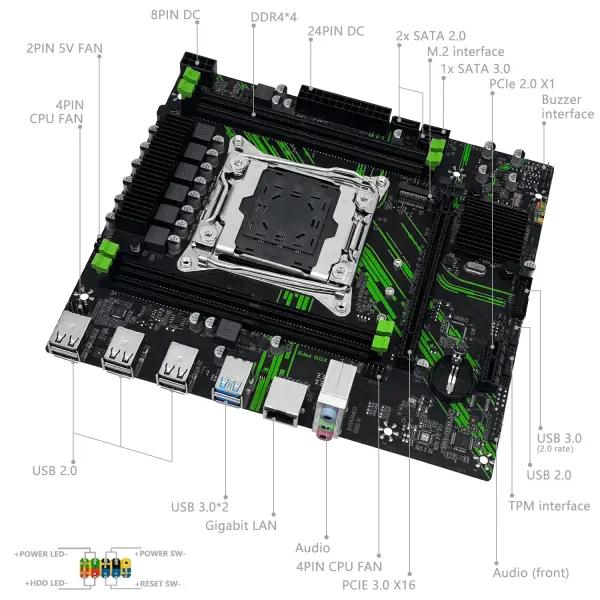

>> Other parameters:
TPM interface: For ASUS LPC-14Pin-2.0 ;
Ethernet: Gigabit network card ;
M.2: Switch between NVME/SATA, default NVME mode ;
USB interfaces: 6 USB 2.0 ports, 2 USB 3.0 ports ;
PCIe: 1 PCIe 16x port, 1 PCIe 1x port ;
SATA interfaces: 1 SATA 3.0 port, 1 SATA 2.0 port ;

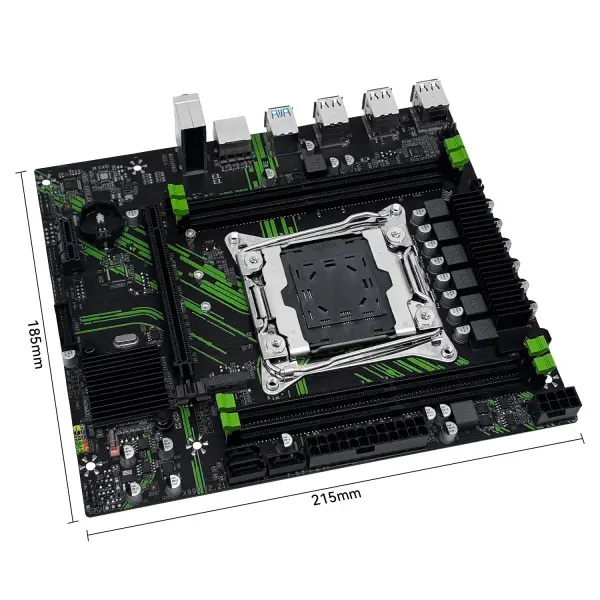

Overall dimensions: 215mm * 185mm.
>> Regarding the tariff issue, please make sure that you can solve the customs clearance problem yourself, if you can't solve it, we do not recommend that you buy products in our store. We are not responsible for tariffs. Thank you for your understanding.
>> Note:
(1) The color of the tank bottom plate may vary from batch to batch, but it will not affect the use of the product. Products are constantly optimized and upgraded.
(2) Due to manual measurement, please allow an error of 1-3mm.
(3) Due to different displays and different lighting, the picture may not show the actual color of the item. Thank you for your understanding.
(4) The platform needs a powerful power supply. Make sure your power supply is sufficient to support this platform. (At least 500w brand power supply)
| Brand Name | MACHINIST |
|---|---|
| MACHINIST Model | X99 PR9 |
| Chipset | Intel B85 |
| Onboard LAN | 1x RJ45 |
| Maximum Ram Capacity | 128 GB |
| Material | others |
| Battery Included | no |
| Processor compatibility | Intel Xeon |
| With CPU | Yes |
| Support Memory Type | DDR4 |
| Number of PCI | 0 |
| Special Features | NONE |
| Storage Interface Type | SATA |
| Package | Yes |
| RAID Supported | no |
| Application | Desktop |
| Chipset Manufacturer | Intel |
| Back I/O Ports | 1x RJ45 |
| PCI - E standards | PCI-E 3.0 |
| Socket Type | LGA 2011-3 |
| High-concerned chemical | none |
| Usage Scenario | Gaming |
| Usage Scenario | Audio & Video |
| Usage Scenario | others |
| Origin | Mainland China |
| Number of PCIe x 8 | 0 |
| Number Of Memory Slots | 4 |
| Ports | M.2 |
| Support USB Type | USB 2.0 |
| Support USB Type | USB 3.0 |
| Number of PCIe x 4 | 0 |
| Number of PCIe x 16 | 1 |
| Onboard Connectors & Header | 24-pin Main Power Connector |
| Onboard Connectors & Header | CPU Fan Connector(s) |
| Onboard Connectors & Header | AAFP Connector |
| Memory channel | Double |
| Audio Channels | 5.1 |
| SATA RAID | 0 |
| Max LAN Speed | 1000Mbps |
| Quality Certification | ce |
| Quality Certification | ROHS |
| Number of PCIe x 1 | 1 |
| Certification | RoHS |
| Certification | CE |
| Form Factor | Micro-ATX |
| Supports M.2 SSD | 2280 |
| Number of M.2 | 1 |
| Choice | yes |
