MACHINIST X99 Motherboard LGA 2011-3 Support Intel Xeon E5 V3 V4 Series CPU DDR4 128GB MAX RAM Memory SATA NVME M.2 ATX MR9A-H

Package Contents:

X99 MR9A-H Motherboard *1

CPU Cooler Fan Bracket *1

SATA Data Cable *1

I/O I/O Socket *1

Specifications:

Brand: Machinsit
Model: X99 MR9A-H
CPU: Intel Core i7 6950X/6900K/6850K/6800K/5960X/5930K/5820K, Intel Xeon E5-XXXX-V3 and Xeon E5-XXXX-V4 (LGA 2011-3 socket)

Motherboard: Intel Chipset: Intel H55

CPU Socket: LGA 2011-3

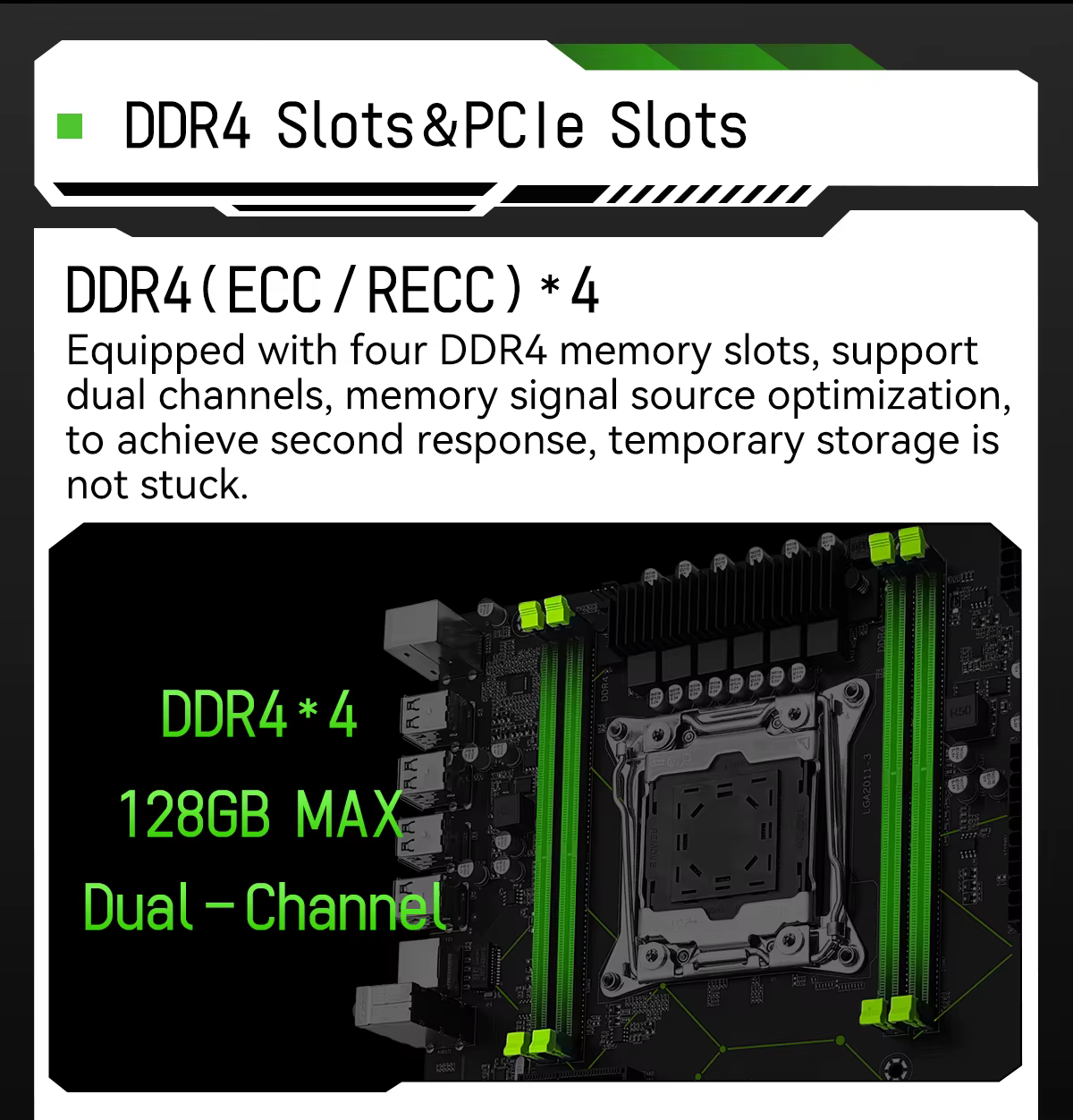

Memory Slots: 4 DDR4 memory slots, maximum support 128 GB

Supported Memory Type: Supports DDR4 2133/2400 MHz,

Dual Channel, Desktop Grade, ECC and RECC Memory.

Compatible devices: PCs, keyboards, mice, printers, projectors, microphones, monitors, graphics cards, etc.

Platform: Windows 8, Windows 10, Windows 11

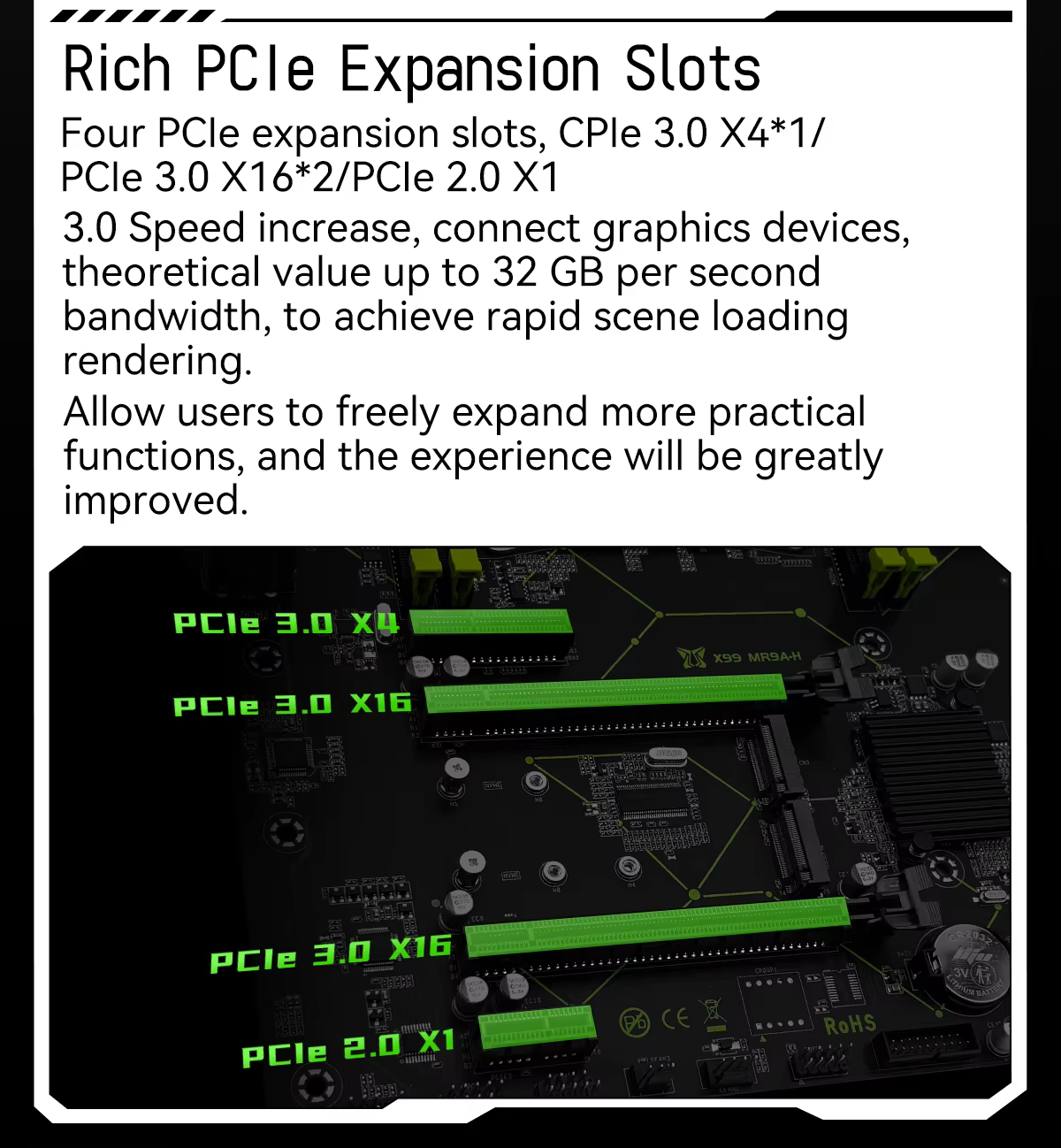

Expansion Slots: 2 PCIe 3.0 x16 slots; 1 PCIe 3.0 x4 slot, 1 PCIe 2.0 x1 slot

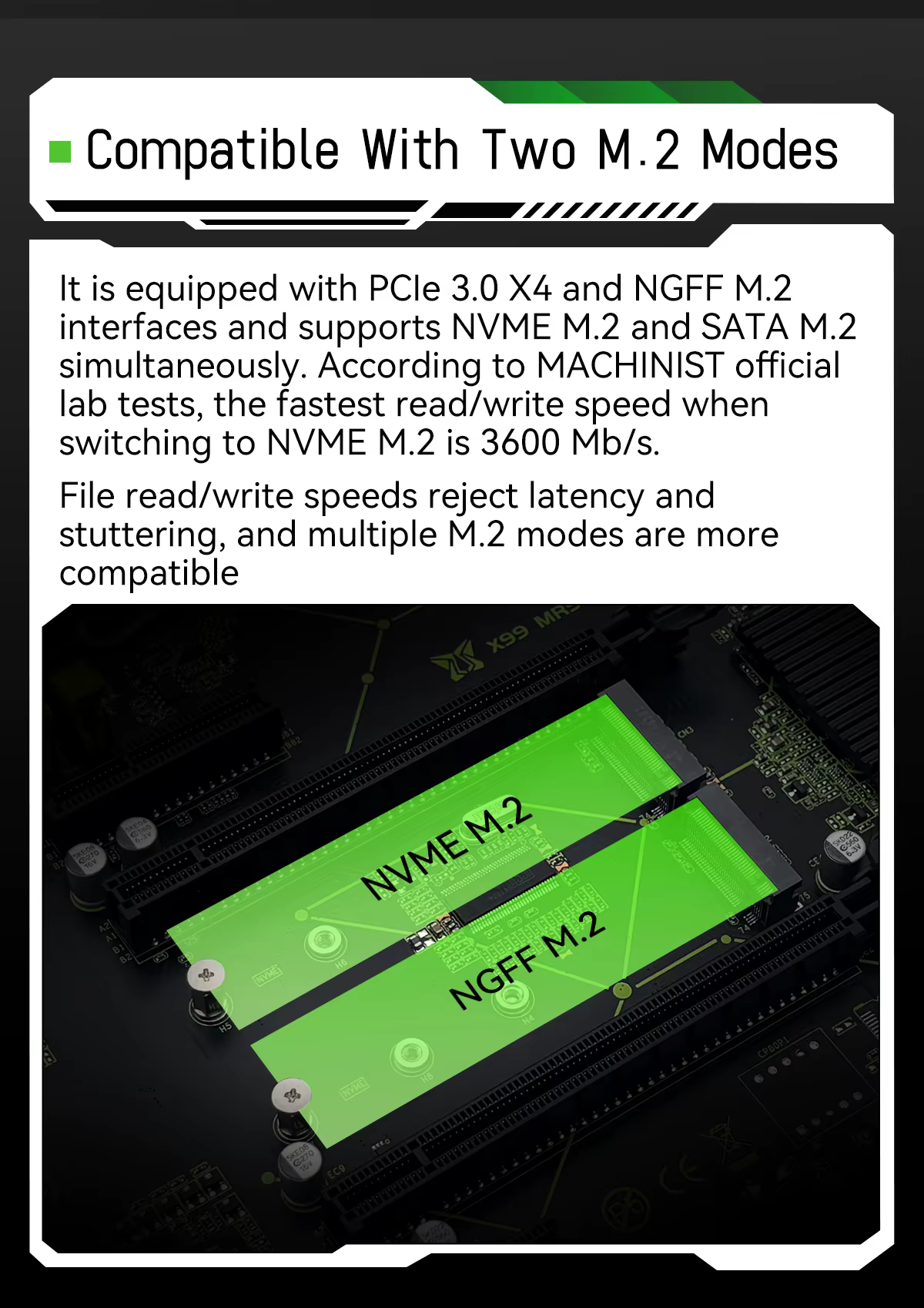

Storage: 4 SATA 3Gbps ports, 2 M.2 interfaces, 1 SATA (NGFF) M.2 slot, 1 NVMe M.2 slot

USB Ports: 10 USB 2.0 ports

Rear I/O Ports: 1 PS/2 keyboard/mouse port, 1 LAN (RJ45) port, 8 USB 2.0 ports, 3 audio jacks

Internal I/O Ports: 2 USB 2.0 ports, 2 M.2 interfaces (SATA M.2 and NVMe M.2), 4 SATA 3Gbps ports

2 CPU fan headers (2 4-pin), 1 One chassis fan header (1 x 3-pin), one front panel audio output header

One 8-pin ATX 12V power header, one EATX 24-pin power header, one front panel I/O header

One CMOS clear jumper (1 x 3-pin), one J_LPC connector, one COM port

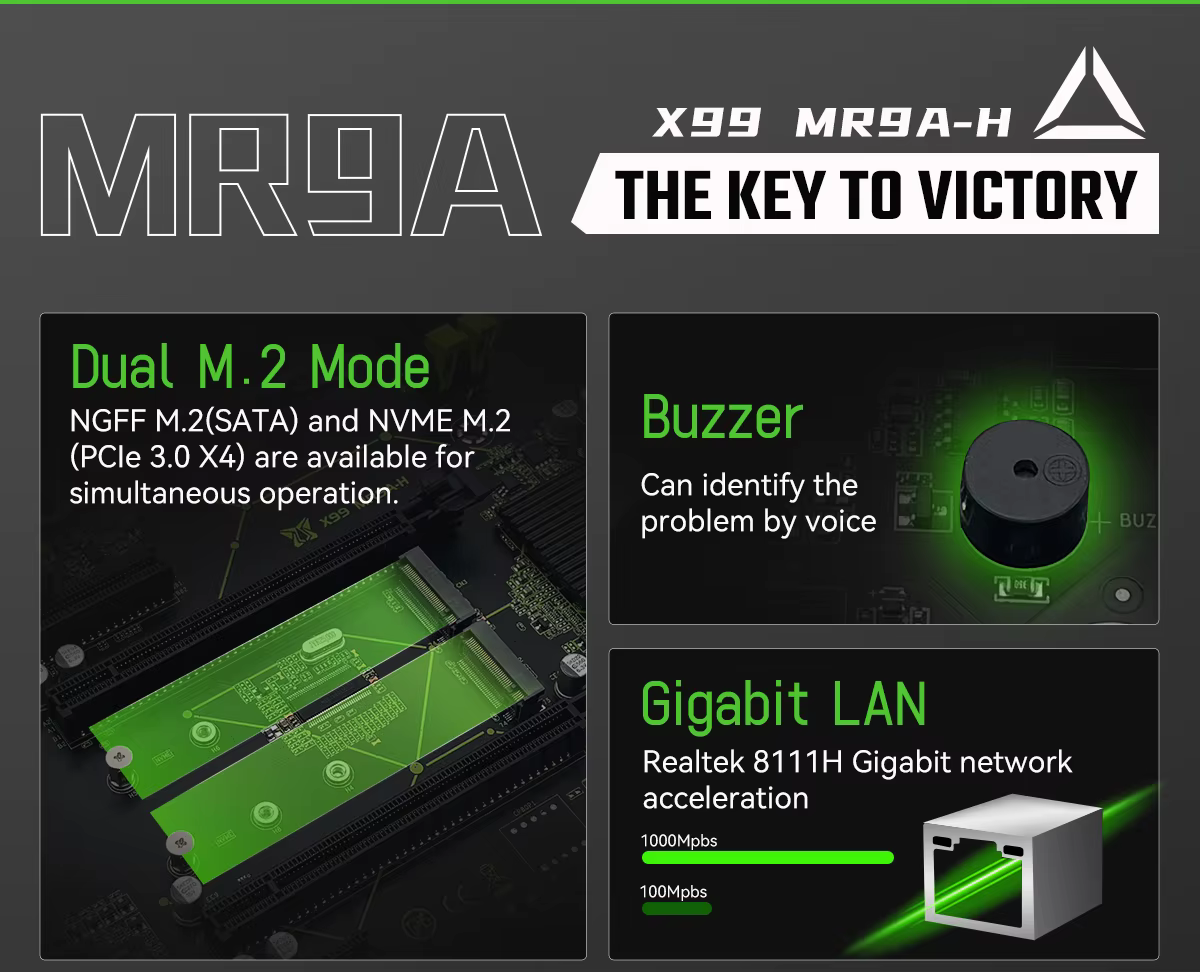

Network card: Realtek 8111H 1000 Mbps RJ45 Ethernet card

Audio: Realtek ALC897 chip, 2.1 channel

Memory timings: Supported

Overclocking: Not supported

Power supply: 6-phase power supply

Supported hard drives: Supports 2.5-inch SATA SSD, 3.5-inch HDD, MVME M.2 SSD, SATA M.2 SSD

BIOS boot key: "DEL"

Quick boot key: F11

Dimensions: 285 mm x 215 mm x 40 mm Millimeters

Form Factor: ATX

Built-in BIOS fully supports Sleep Mode (S3).

If you are using a Core i7 processor, please try different memory kits. We tested five memory kits, and only two worked correctly.
