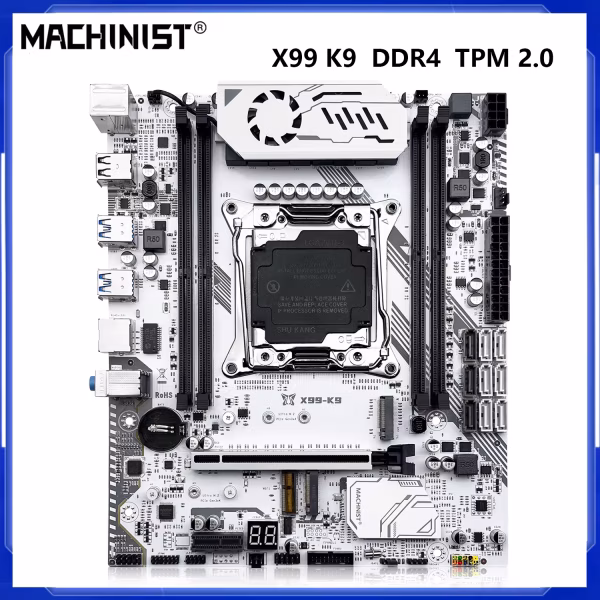

MACHINIST X99 K9 Motherboard C612 Chip Supports TPM2.0 Four channels DDR4 RAM LGA2011-3 Xeon E5 CPU NVME PCIE3.0
>> Regarding the tariff issue, please ensure that you can handle the customs clearance by yourself. If you cannot, we do not recommend that you purchase goods in our store. We are not responsible for tariffs. Thank you for your understanding.
>> Note:
(1) The color of the bottom plate of the trough may vary from batch to batch, but it will not affect the use of the product. The products are constantly being optimized and upgraded.
(2) Due to manual measurement, please allow an error of 1 to 3mm.
(3) Due to different displays and lighting conditions, the picture may not show the actual color of the item. Thank you for your understanding.
(4) This platform requires a powerful power supply. Please ensure that your power supply is sufficient to support this platform. (At least 500w brand power supply
(5) The battery in the motherboard photo is not included. It will be removed before shipment because the logistics requirements prohibit the use of this battery.
| Brand Name | MACHINIST |
|---|---|
| Chipset | Intel X99 |
| Onboard LAN | WIFI (AC) |
| Maximum Ram Capacity | 128 GB |
| Material | others |
| Battery Included | no |
| Processor compatibility | Intel Xeon E Series |
| With CPU | No |
| Support Memory Type | DDR4 |
| Number of PCI | 0 |
| Special Features | NONE |
| Storage Interface Type | SATA 3 |
| Storage Interface Type | M.2 (NVMe) |
| Package | Yes |
| RAID Supported | no |
| Application | Desktop |
| Chipset Manufacturer | Intel |

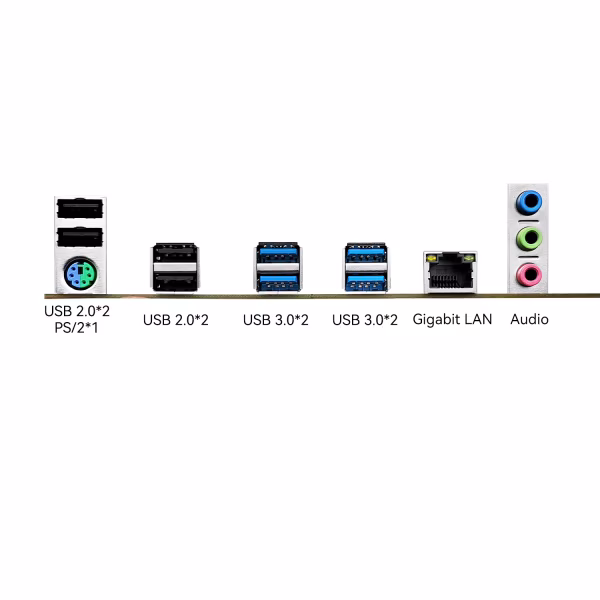

| Back I/O Ports | 1x RJ45 |
| Back I/O Ports | WiFi |
| Back I/O Ports | 3 x Audio Jacks |
| PCI - E standards | PCI-E 3.0 |
| Socket Type | LGA 2011-3 |
| High-concerned chemical | none |
| Usage Scenario | Gaming |
| Usage Scenario | Audio & Video |
| Usage Scenario | Office |
| Usage Scenario | Video Production |
| Usage Scenario | others |
| Origin | Mainland China |
| Number of PCIe x 8 | 0 |
| Number Of Memory Slots | 4 |
| Ports | USB 3.0 |
| Support USB Type | USB 2.0 |
| Support USB Type | USB 3.0 |
| Number of PCIe x 4 | 0 |
| Number of PCIe x 16 | 1 |

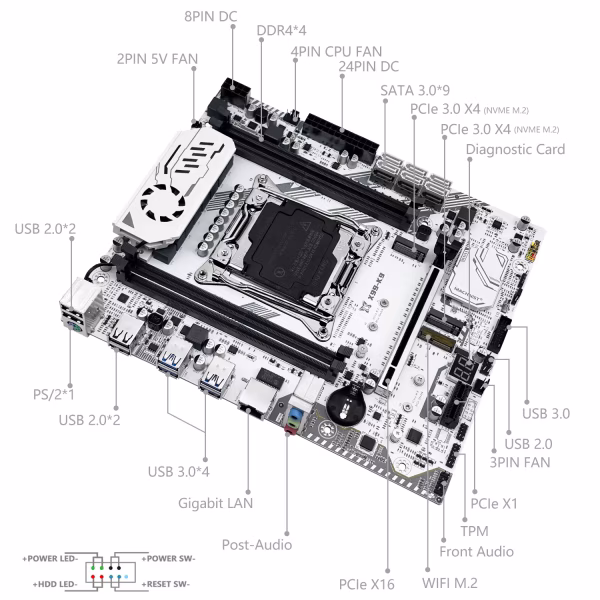

| Onboard Connectors & Header | 24-pin Main Power Connector |
| Onboard Connectors & Header | CPU Fan Connector(s) |
| Onboard Connectors & Header | AAFP Connector |
| Memory channel | Four |
| Number of SATA Ports | 9 |
| Max LAN Speed | 1000Mbps |
| Quality Certification | ce |
| Quality Certification | ROHS |
| Number of PCIe x 1 | 1 |
| Form Factor | Micro-ATX |
| Supports M.2 SSD | 2280 |
| Number of M.2 | 3 |
