MACHINIST X79 Motherboard S7 LGA 2011 Support Intel Xeon E5 V1 V2 CPU Processor DDR3 Memory RAM NVMe SATA M.2 M-ATX

Package Contents:

1 x X79 S7 LGA 2011 Motherboard

1 x SATA Data Cable

1 x I/O shield

1 x Cooler Fan Bracket

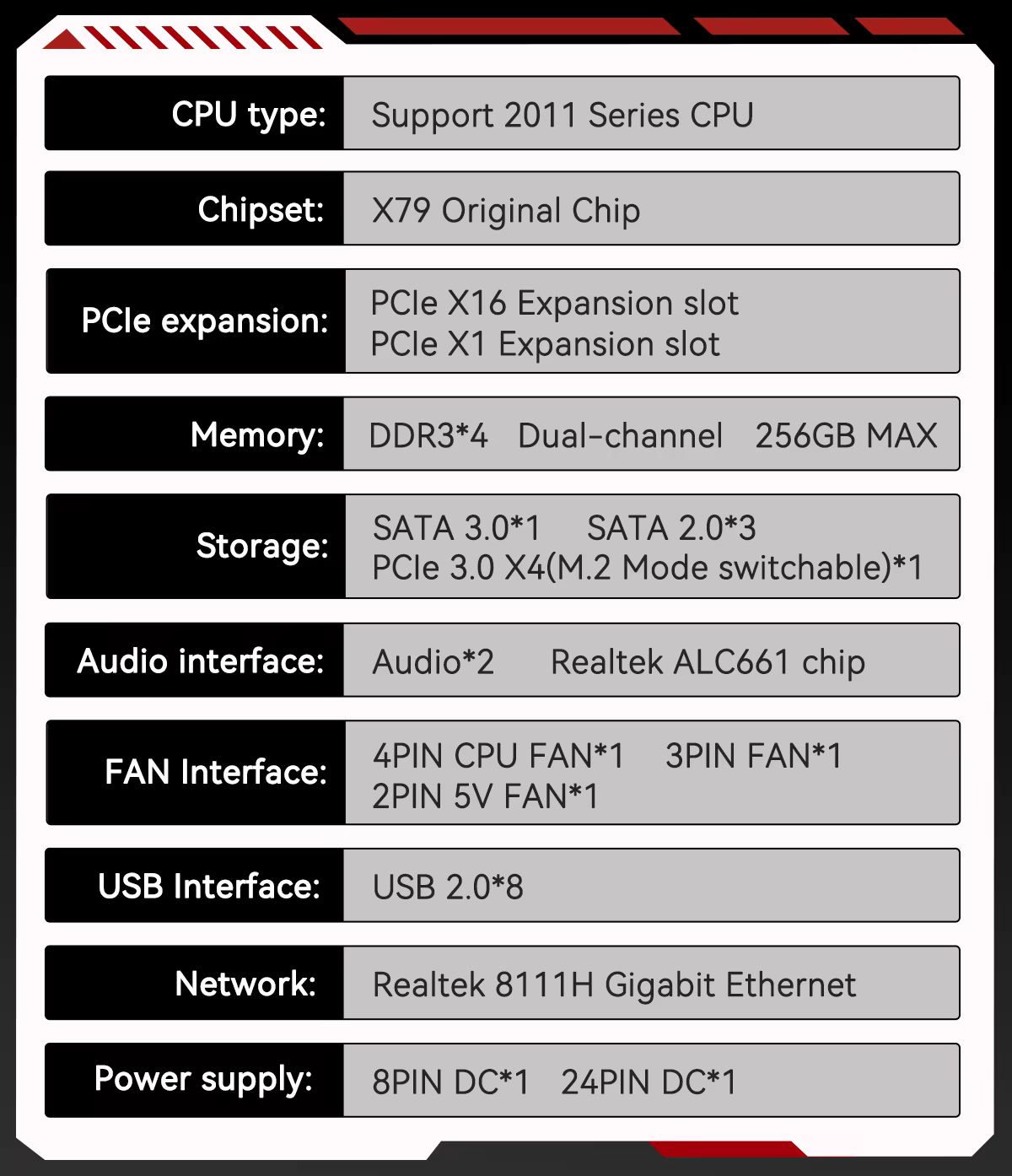

> > Motherboard information:

Brand: MACHINIST.
Motherboard Model: X79 S7.
Processor: Supports Intel LGA2011 socket series processors.
Chipset: Intel X79 chipset.
Included Accessories: I/O shield *1, SATA data cable *1.
(All products are manually tested and packaged before shipment. Please excuse any missing items!)

>> Memory:
Technology: Dual-channel DDR3. Supports 1066/1333/1600/1866MHz. Maximum capacity is 128GB (32GB x 4).
Memory slots: 4 x 240-pin DDR3.
Supported memory types: DDR3 desktop and server memory.
Use international brands such as Samsung, Kingston, and Sandy. Micron and Hynix are recommended. Other brands may not be compatible.

>> Rear I/O:
PS/2: 1 x KB port + 1 x MS port.
USB ports: 6 x USB 2.0 ports.
Ethernet: 1 x Gigabit network card.
Audio: 1 x (mic-in, line-out, line-in).

>> Internal ports:
PCIe: 1 x PCIe 16x port, 1 x PCIe 1x port. SATA ports: 4 (3 SATA 2.0 ports; 1 SATA 3.0 port);
1 standard 1x8-pin power connector; 1 standard 1x24-pin power connector;

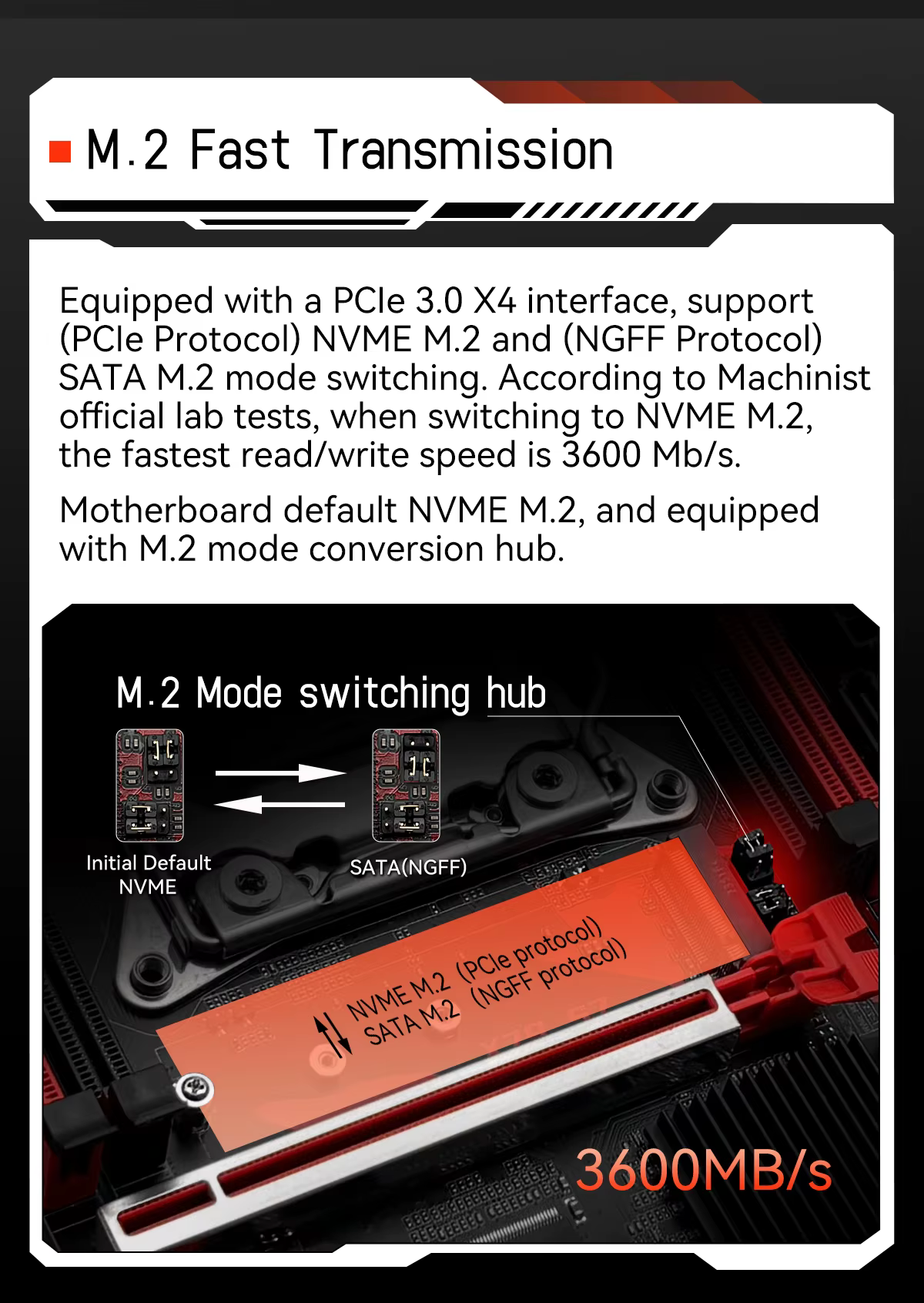

M.2 port: 1 (SATA/NVMe, NVMe default).
Dimensions: 215 mm * 185 mm.
Mainboard weight (including packaging): Approximately 0.9 kg.
