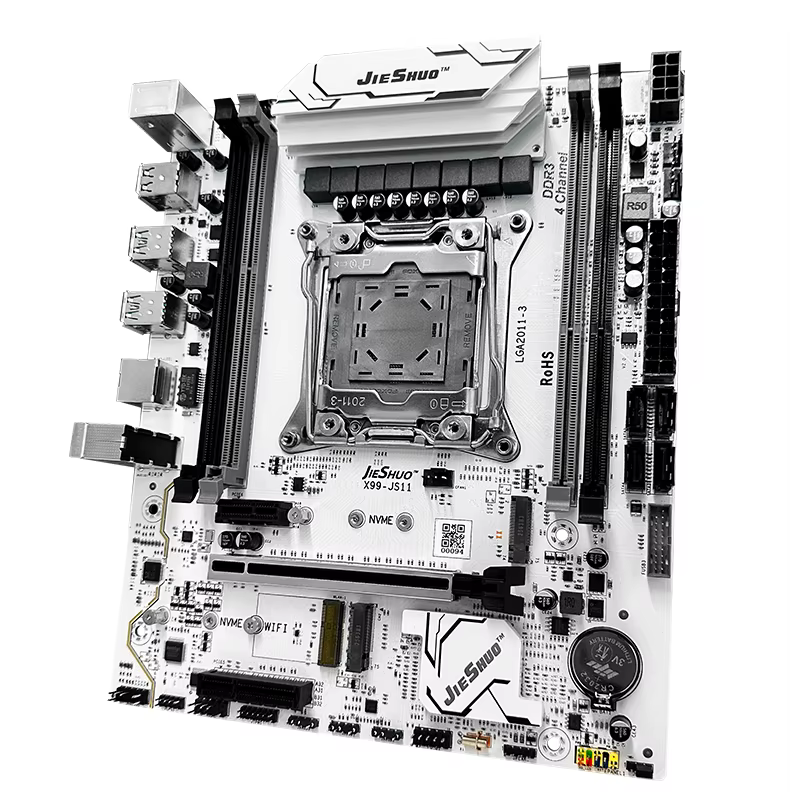

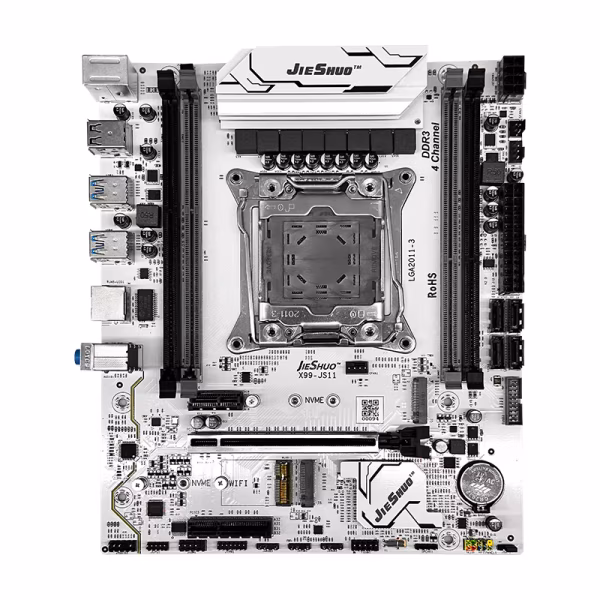

JIESHUO X99-JS11 Xeon Processor E5-2676 V3 16GB RAM Compatible with DDR3 16GB WiFi Module and TPM 2.0

R$ 450,26 R$ 625,36

SKU Code: AE1005012151052457-1
Model: AE1005012151052457-1
Categories: Placas-mãe

Ships From

Brazil

E5 2676 V3 RAM

Add to Wish List

JIESHUO X99-JS11 Xeon Processor E5-2676 V3 16GB RAM Compatible with DDR3 16GB WiFi Module and TPM 2.0

Package 1: 1 × X99-JS11 Motherboard

Package 2: X99-JS11 D3 Motherboard + Processor E5 2676 V3 + 16GB RAM

Important Notice of Compatibility

The X99 motherboard uses old PCIe 3.0 interface, it is not compatible with RTX 5050, RTX 5060 and RTX 5060Ti graphics cards.

When installing these new cards, black screen, flashing image loss, and recognition failure may occur. This is caused by the hardware protocol difference, it is not motherboard defect, we do not accept return for this reason.

We recommend using GTX 16xx/30xx/40xx or RX 6000 series cards for stable operation.

⚠️ This X79/X99 series motherboard is designed for server platforms, so it requires ECC/REG type server memories to ensure perfect compatibility and correct system startup. The use of standard consumption memories (non-ECC) may result in compatibility issues, failure to boot, or absence of video output; such problems are not considered quality defects of the motherboard. Please make sure your memory is a compatible model before placing the order, in order to avoid unnecessary disputes in the after-sales.

Check the differences between the packages before you buy. If you disagree, do not request.

Intel Xeon Processor Specifications

Series: Intel Xeon, Model: E5-2676 V3; Base Frequency: 2.4 GHz, Max Turbo Frequency: 3.1 GHz; Socket: LGA2011-3; Dimensions: 45 × 52.5mm; Supported memory: DDR3 1333/1600/1866 MHz; 12 Cores, 24 Threads; L3 Cache: 30 MB; TDP: 120W. The processor is used, fully tested and double-checked before shipping.

Characteristics of Motherboard

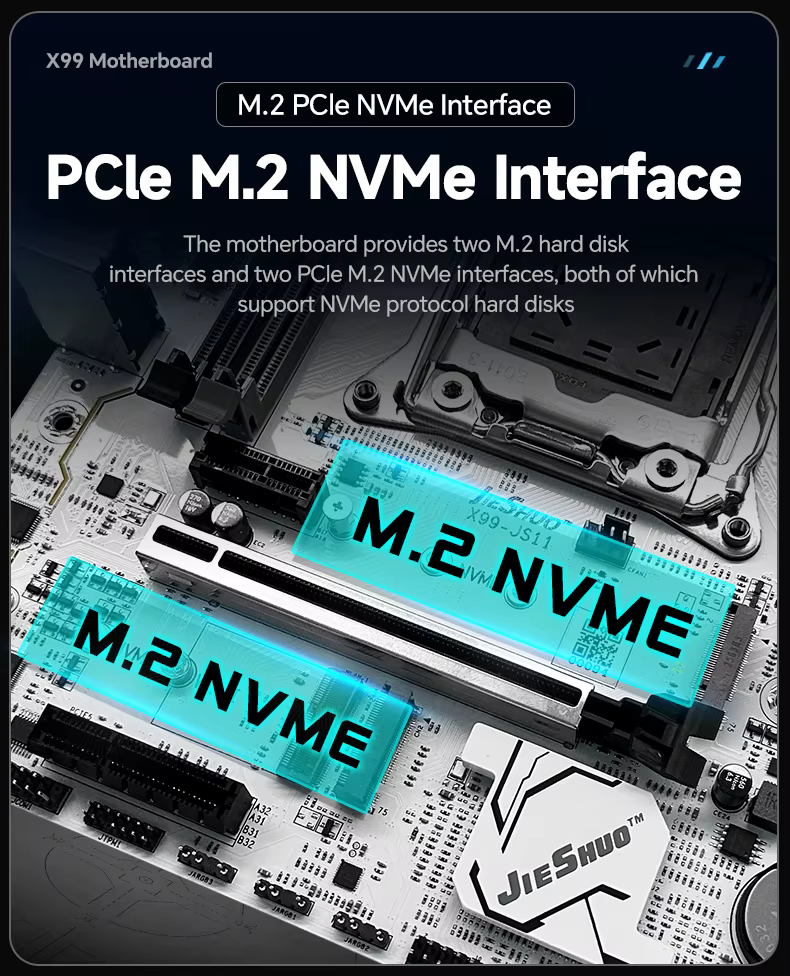

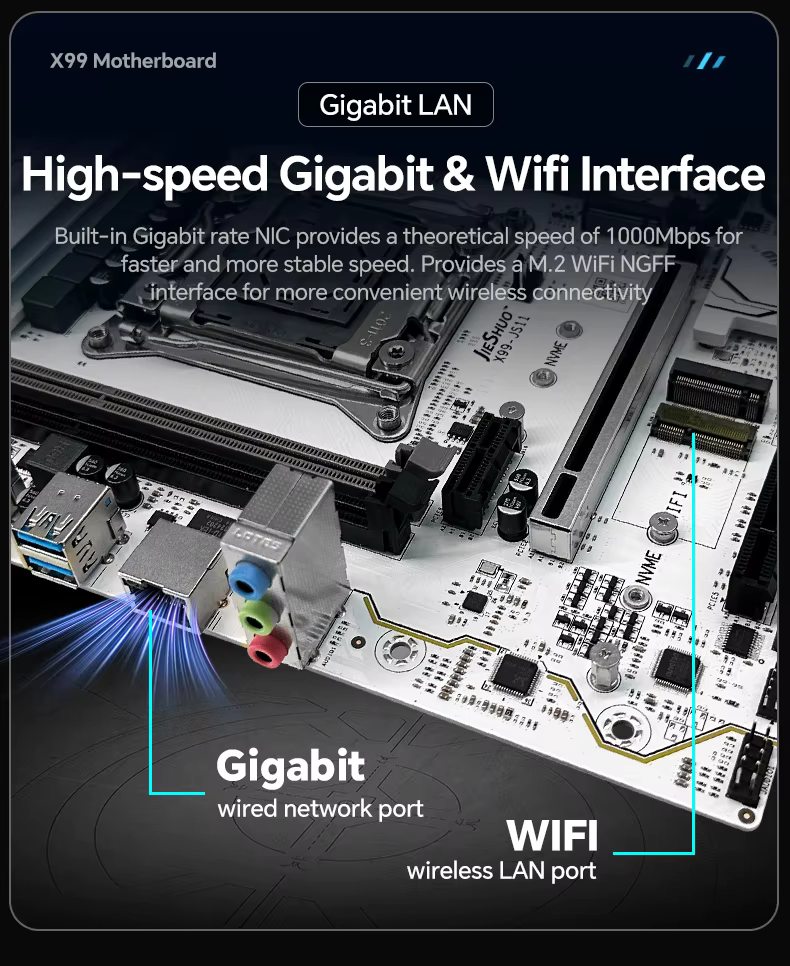

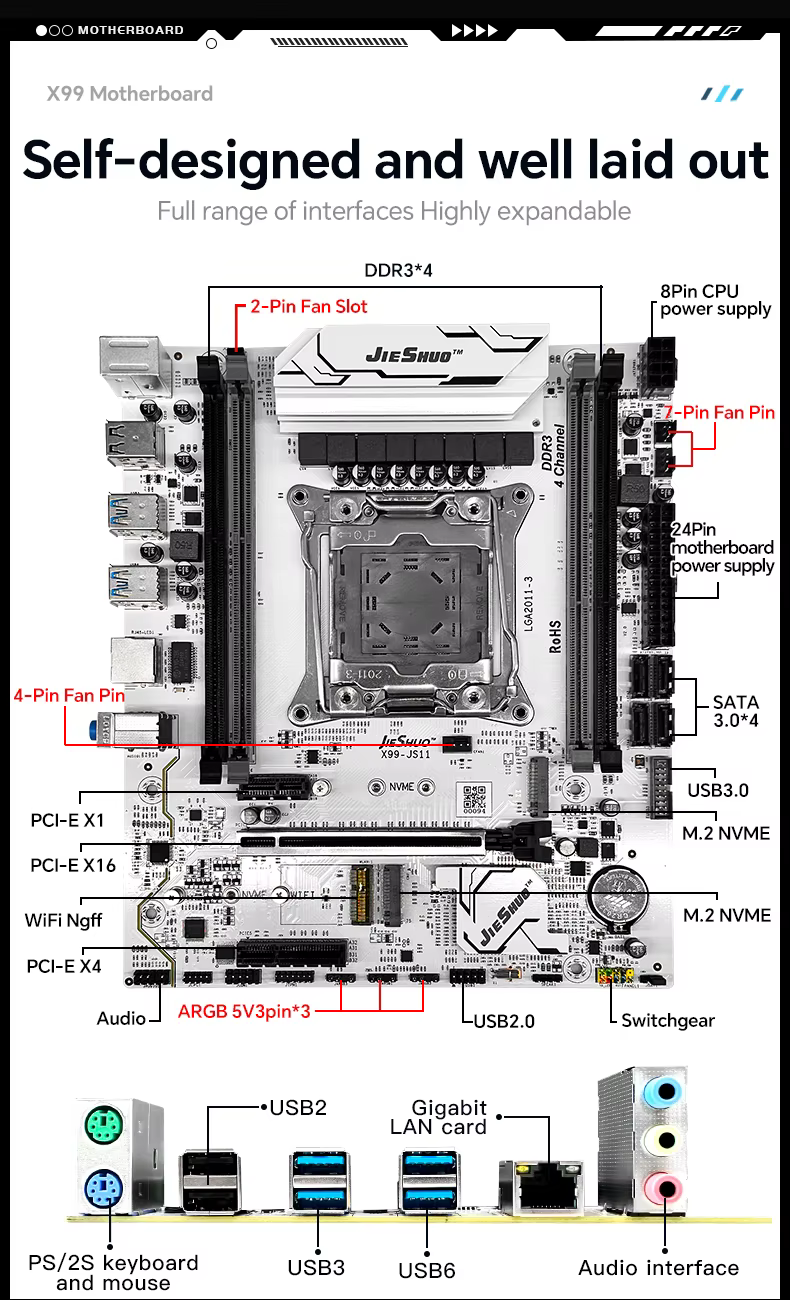

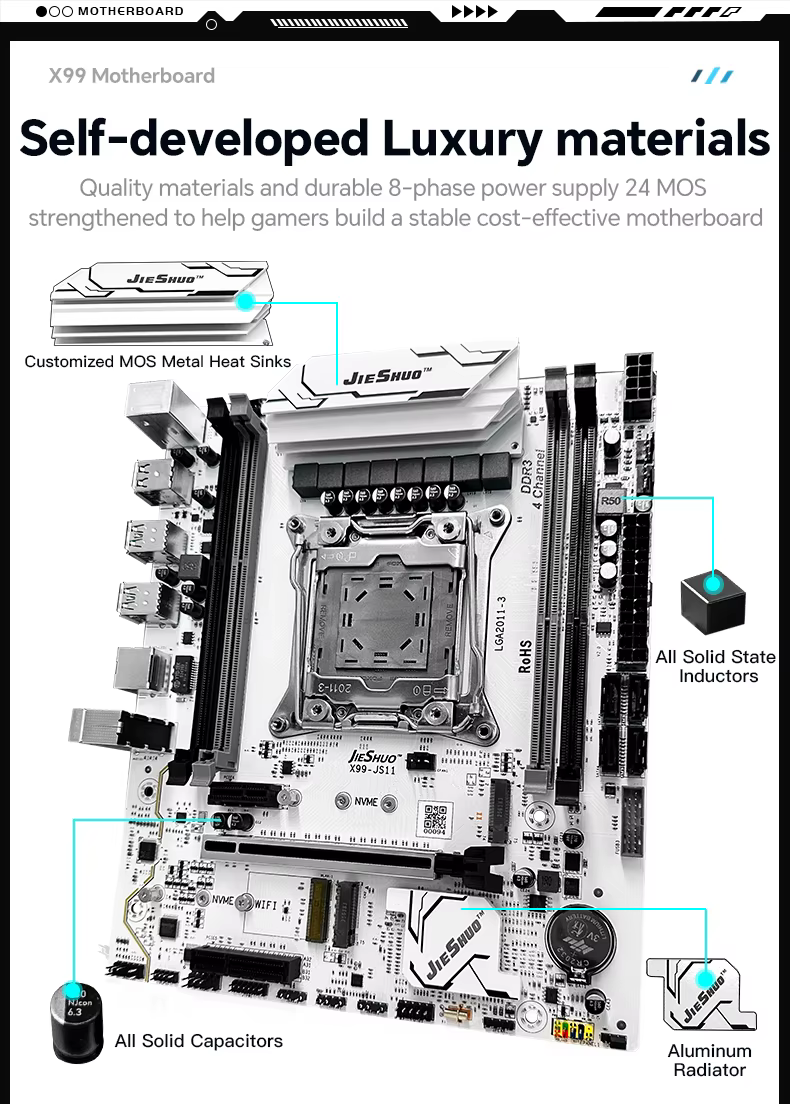

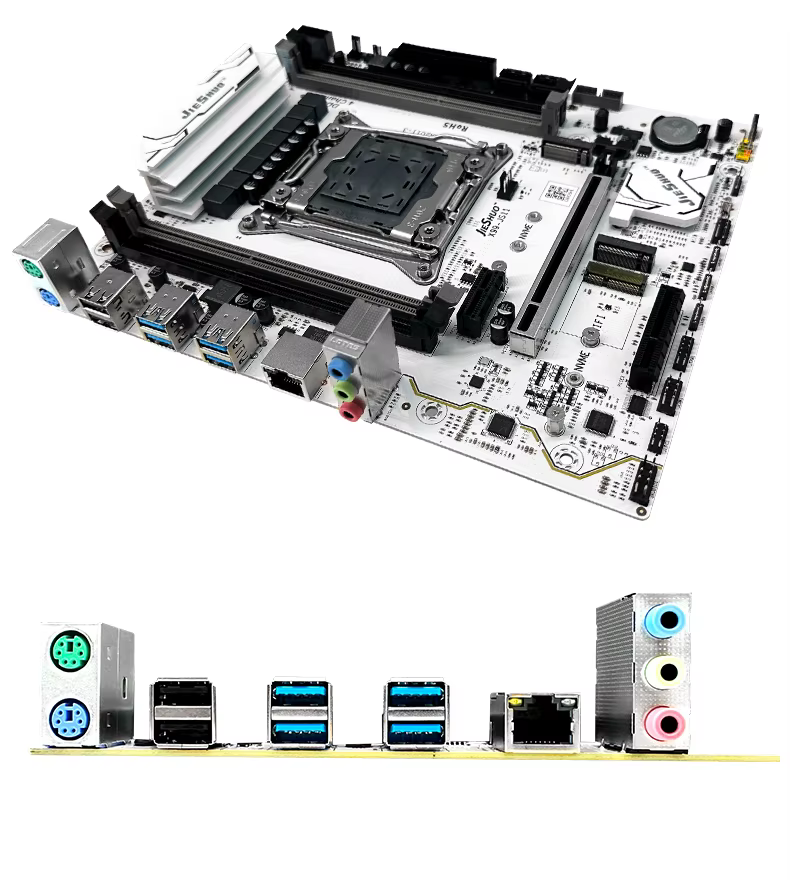

Network: Realtek Gigabit Network Card; Audio: MIC-IN, LINE OUT, LINE IN + integrated audio pins; Rear USB: 4 × USB 2.0 + 4 × USB 3.0; PCIe slots: 1 × PCIe x16 + 1 × PCIe X4; Internal USB: 6 interfaces; SATA: 6 × SATA 3.0 ports; Power: ATX 24-pin + 8-pin CPU; Internal pins: Audio, JLPC, battery connector; M.2 interface: 1 × M.2 (supports PCIe M.2 / SATA M.2); Format: m-ATX 215 × 190mm.

Important Warnings

The color of the plate can vary by batch without impact on operation, the product undergoes constant optimizations. Difference of 1-3mm in manual measurement is normal, and the actual color may vary by lighting and monitor. Recommended power supply: Minimum 500W of reliable brand. CMOS battery not included, removed by logistical requirements.

Notice of Compatibility (Required Read)

Due to the wide variety of accessories on the market, unknown brands, poor quality products or ES/QS versions of CPU, RAM, M.2 SSD and other components may cause incompatibility. Confirm compatibility with our service prior to purchase. Without prior confirmation, we will not accept refunds for incompatibility issues. By making the purchase, you declare that you have read, understood and agree to all terms.

Especificações

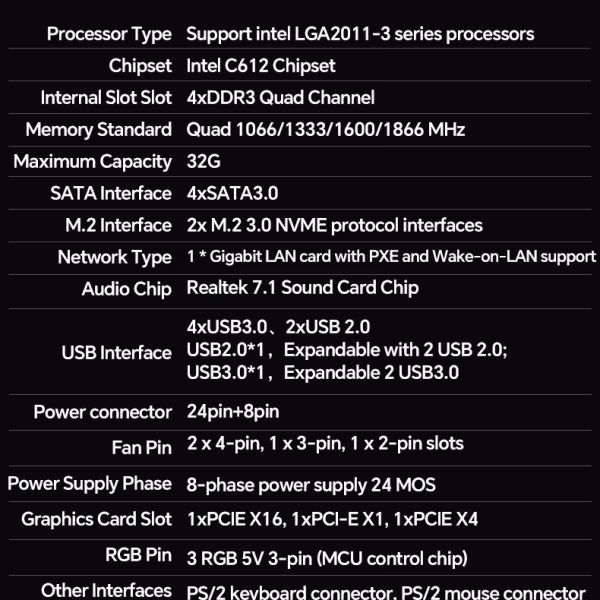

Brand Name	JIESHUO

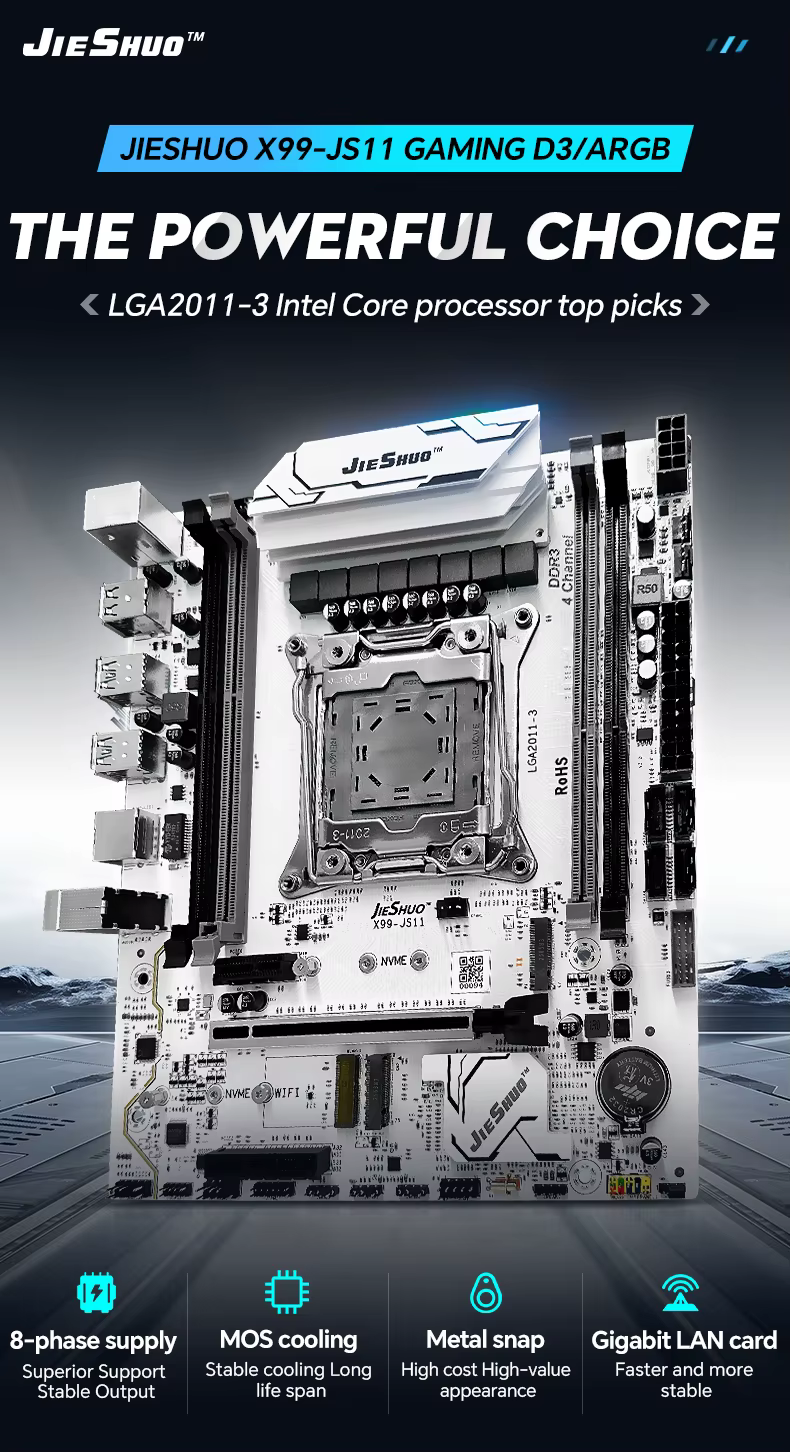

JIESHUO Model	X99 GAMING D3/ARGB
Chipset	C612
Onboard LAN	1x RJ45
Maximum Ram Capacity	32 GB
Material	Plastic
Material	Metal
Battery Included	no
Processor compatibility	Intel Xeon E Series
With CPU	Yes
Support Memory Type	DDR3
Number of PCI	3
Special Features	RGB
Storage Interface Type	SATA 3
Storage Interface Type	M.2 (NVMe)
Package	Yes
RAID Supported	Yes
Application	Desktop
Chipset Manufacturer	Intel
Back I/O Ports	4x USB 3.2/3.1 Gen 1
Back I/O Ports	2x USB 3.2/3.1 Gen 1
PCI - E standards	PCI-E 3.0
Socket Type	LGA 2011-3
High-concerned chemical	none
Usage Scenario	Gaming
Usage Scenario	Office
Usage Scenario	Video Rendering
Usage Scenario	Workstation
Origin	Mainland China
Number of PCIe x 8	0
Number Of Memory Slots	4
Ports	USB 3.0
Support USB Type	USB 3.0
Support USB Type	USB 2.0
Number of PCIe x 4	1
Number of PCIe x 16	1
Onboard Connectors & Header	24-pin Main Power Connector
Onboard Connectors & Header	8-pin +12V Power Connector
Onboard Connectors & Header	CPU Fan Connector(s)
Onboard Connectors & Header	Chassis(SYS) Fan Connector(s)
Onboard Connectors & Header	AAFP Connector
Onboard Connectors & Header	System Panel(s) (Chassis intrusion header is inbuilt)
Onboard Connectors & Header	USB 3.0 Connector

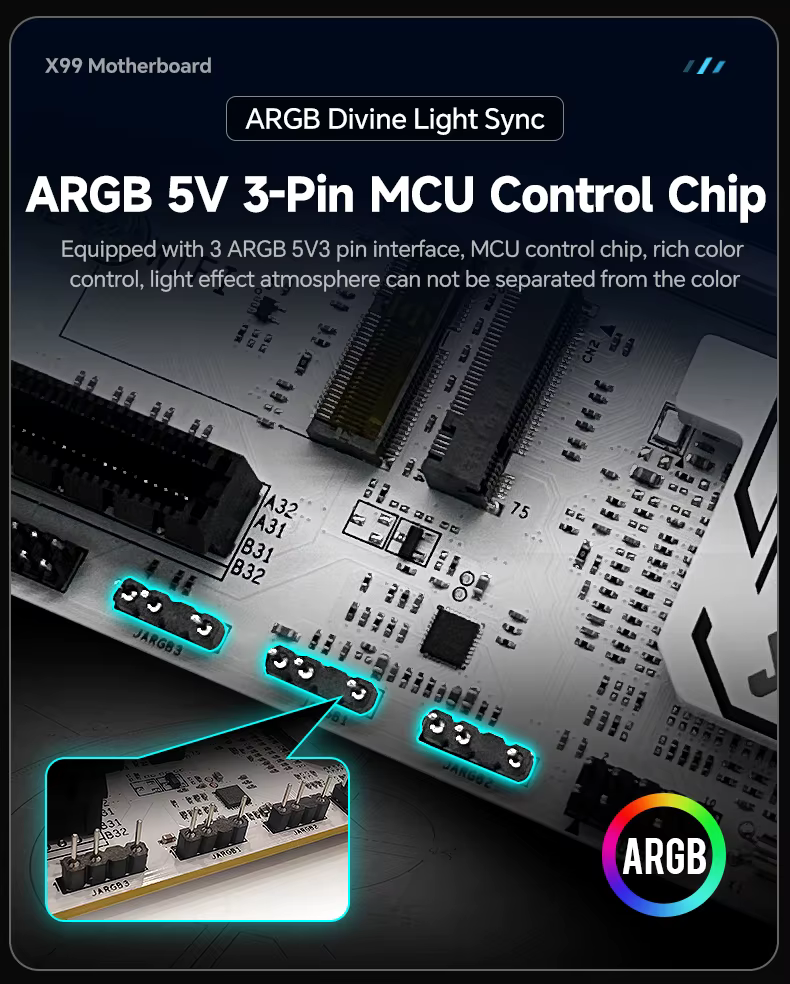

Onboard Connectors & Header	RGB Header

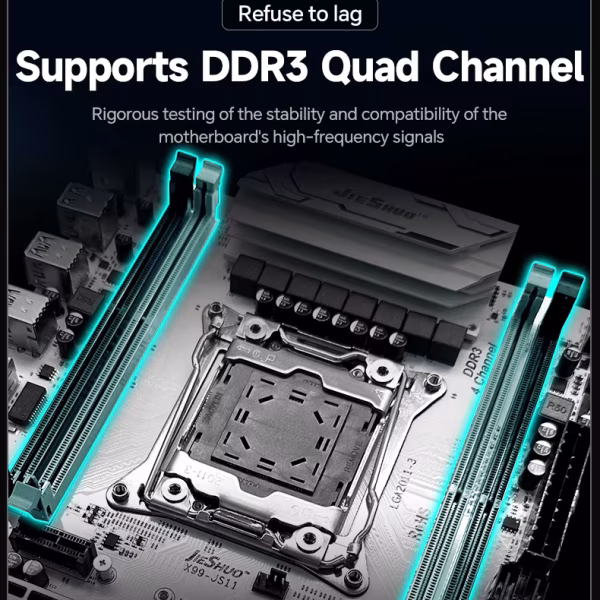

Memory channel	Four
Number of SATA Ports	4
Audio Channels	7.1
SATA RAID	0
Number of PCIe x 1	1
