High-Performance CPU and RAM Combo

Includes an Intel i3 4160 CPU and 8G RAM, offering a powerful setup for gaming and multitasking.

SOYO Brand Name

Renowned SOYO brand guarantees quality and durability, trusted by professionals and enthusiasts alike.

Versatile Display Connections

Supports HDMI, VGA, and DVI outputs, allowing for flexible display configurations in various setups.

Multiple Storage Options

Features 1*M.2 3.0 and 3*SATA 3.0 slots, providing ample storage for your data and applications.

Intel Chipset Manufacturer

Equipped with Intel chipset, ensuring reliable performance and compatibility with latest technologies.

Differences between packages

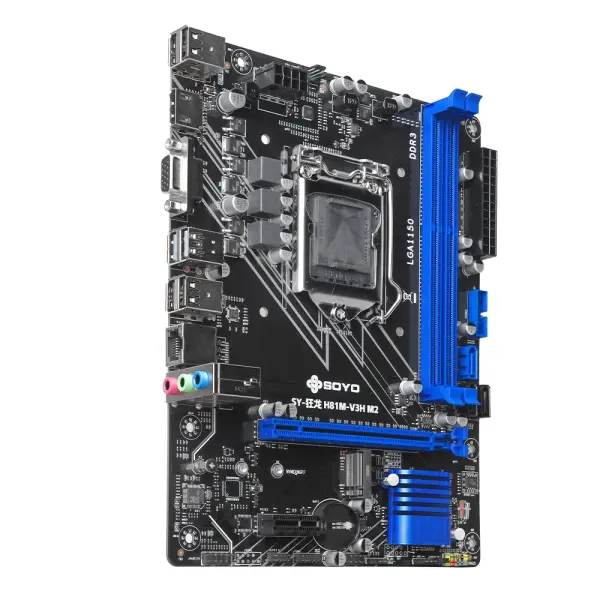

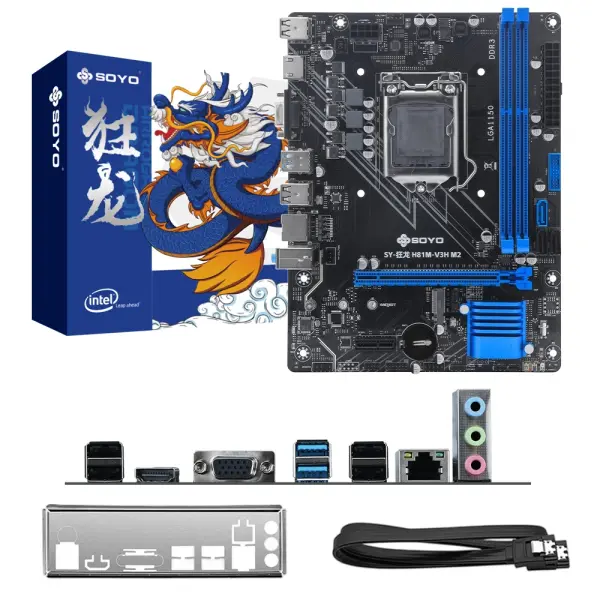

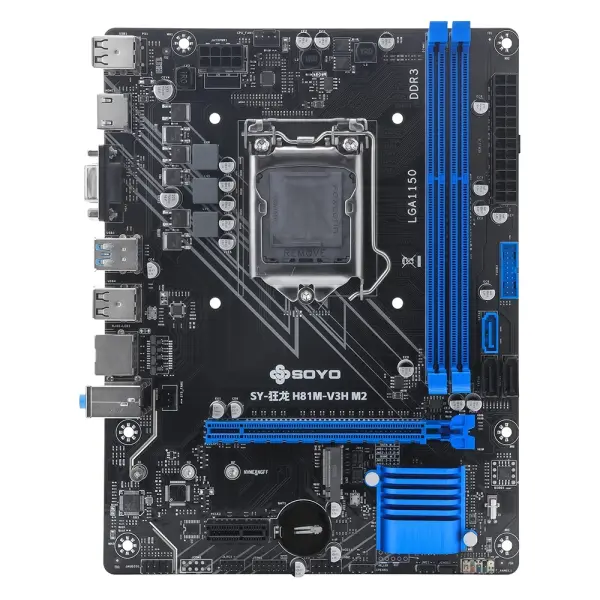

Motherboards: 1*SY-狂龙 H81M-V3H M2 motherboard

Motherboards+CPU: 1*SY-狂龙 H81M-V3H M2+i3 4160 CPU

Motherboards+CPU+RAM: 1*SY-狂龙 H81M-V3H M2+i3 4160 CPU+8GB

Please confirm the differences between the packages before purchasing. If you mind, please do not place an order

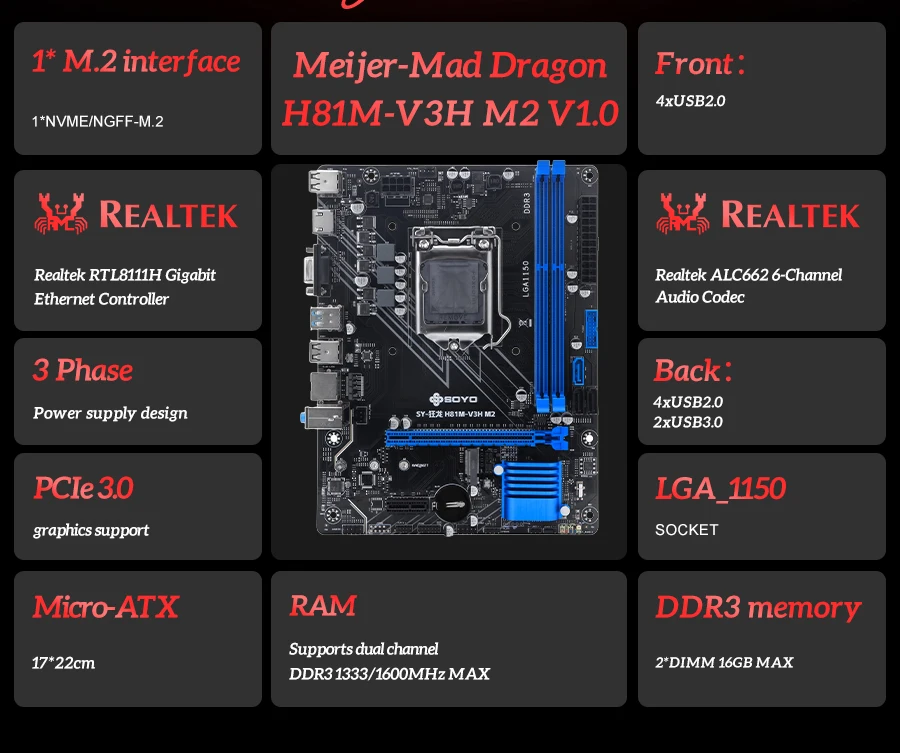

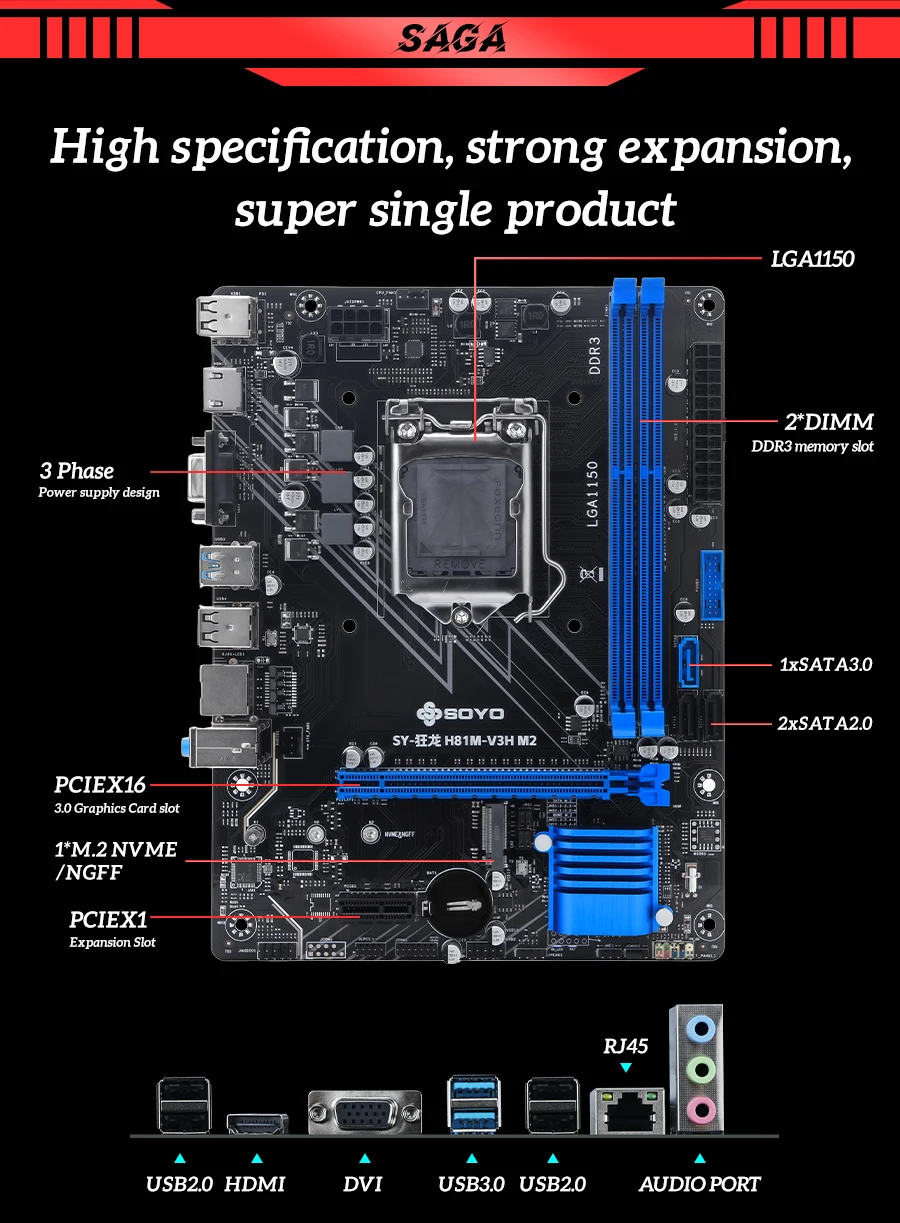

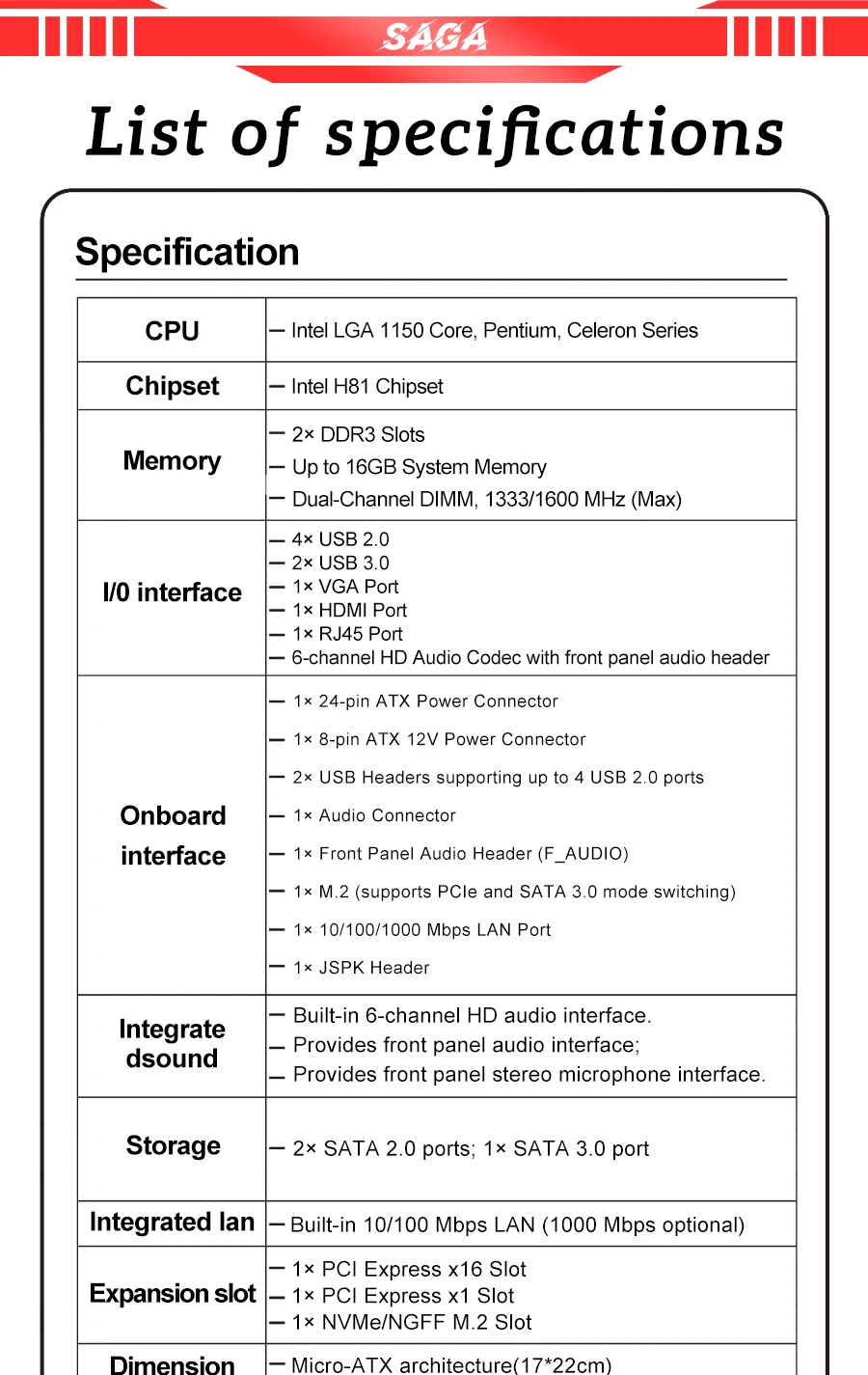

Motherboard Chipset: H81CPU:

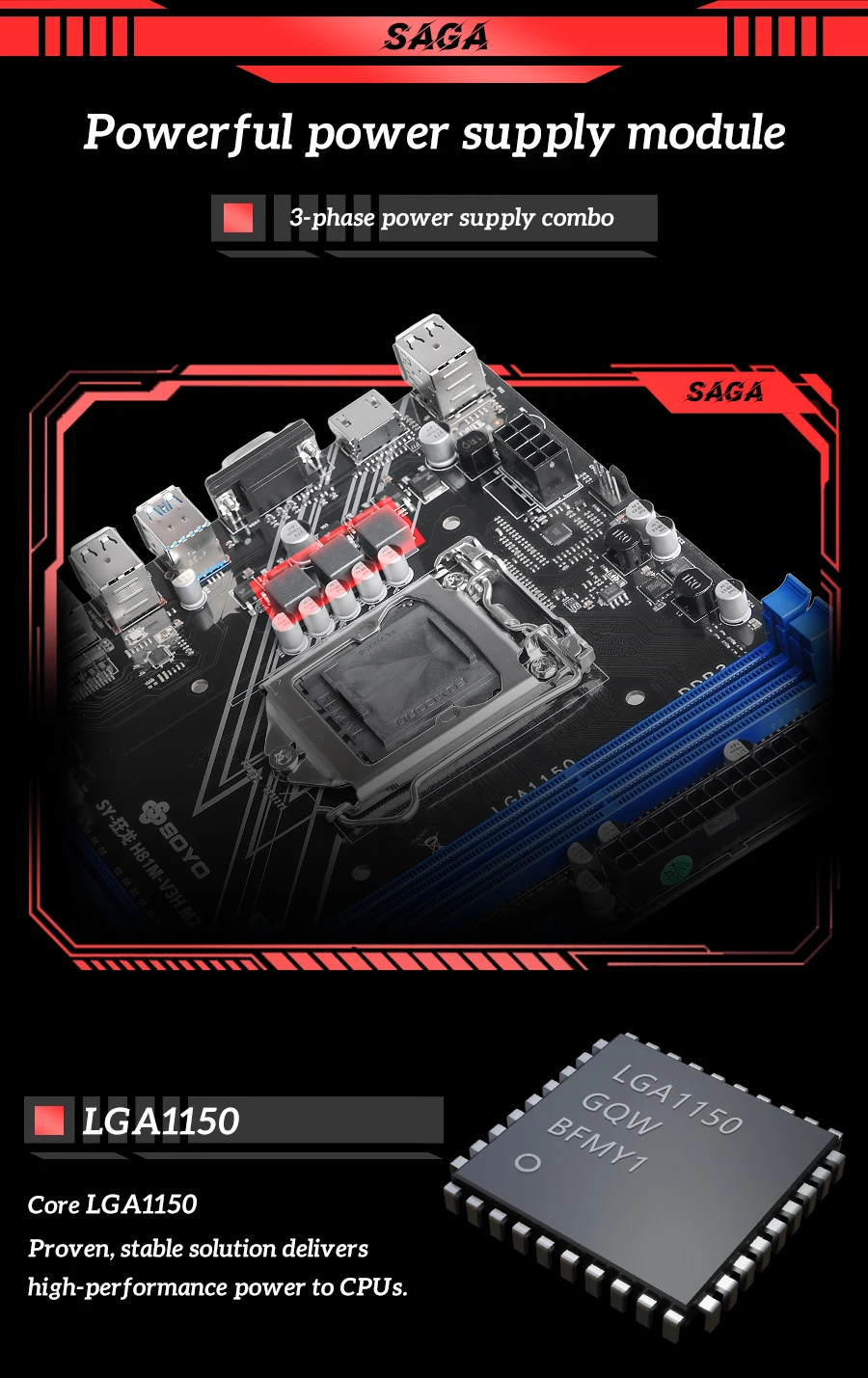

• Supported CPUs: Intel Core i7/i5/i3, Celeron/Pentium/EXON LGA1150 socket CPUs

• Examples: G1820 / E3-1230V3 / i7-4770 / i5-4590, etc.

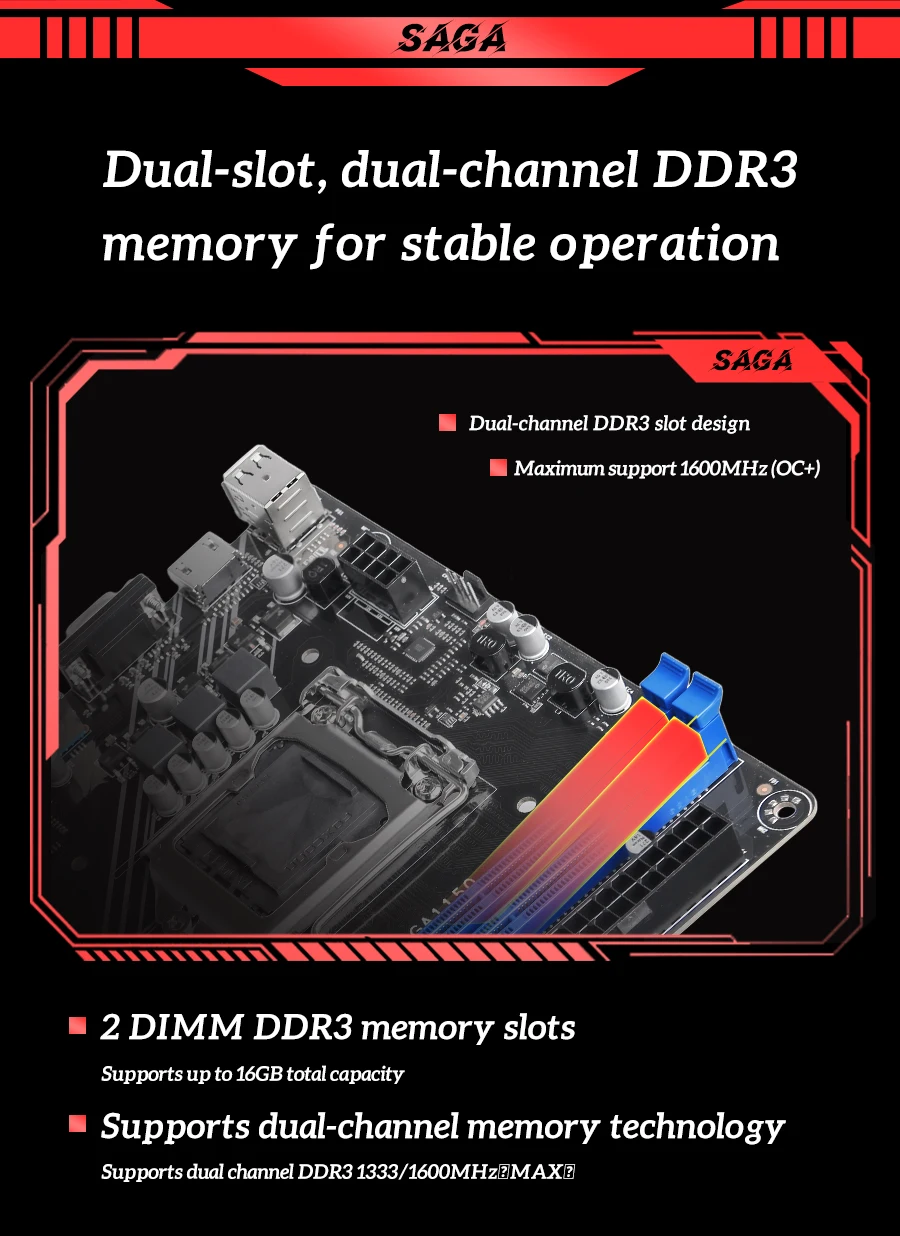

Memory: 2 * DDR3 Dual Channel DIMM, 1333/1600MHz (MAX), Max. support 16GB (8GB*2)

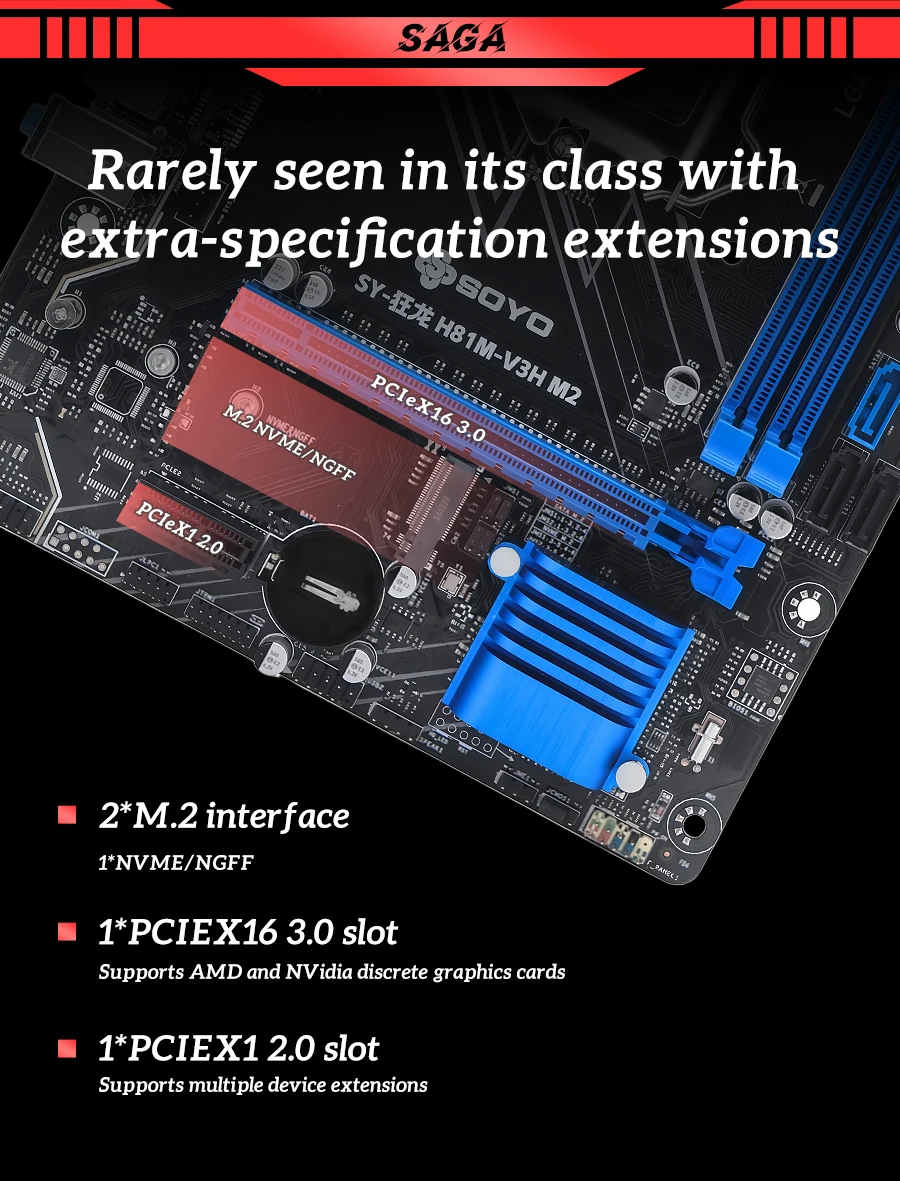

• 1 * M.2 slot (supports NVME/NGFF protocol, PCIE2.0 x4 / SATA3.0 protocol, jumper switchable)

• 2 * SATA2.0 interfaces; 1 * SATA3.0 interface

Video Output: 1 * HDMI 1.4 + 1 * VGA

Network: 1 * RJ45 interface

LAN Chipset: Realtek Gigabit Ethernet chip

TPM: 1 * 14-Pin TPM header (compatible with MSI 14-Pin TPM modules)

Audio Interfaces: 1 * Line out, 1 * MIC In, 1 * Line in; 1 * F_Audio onboard header

Audio Chipset: Realtek High Definition Audio chip

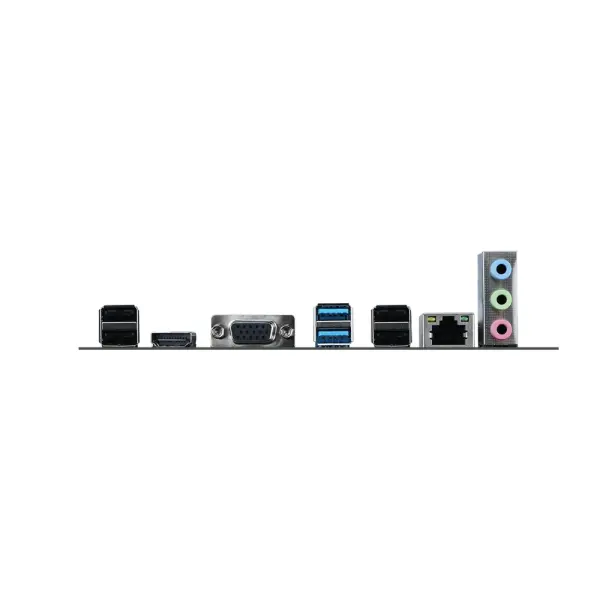

• Rear I/O: 2 * USB3.0, 4 * USB2.0

• Onboard headers: 2 sets of USB2.0 headers (expandable to 4 additional USB2.0 ports)

• 1 * PCIEX16 3.0 slot (from CPU)

• 1 * PCIEX1 2.0 slot (from PCH)

Function Headers: 1 * FPANEL front panel header; 1 * 4-Pin CPU fan header; 1 * JCMOS header; 1 * SPEAK header; 1 * JLPC header

Power Input: 24Pin + 8Pin ATX power connector

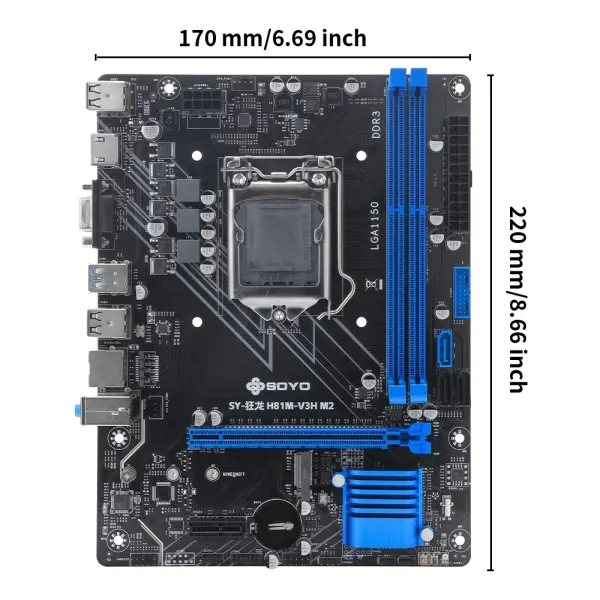

Product Dimensions: 170 x 221mm x 4L

Operating Temperature: -10℃ ~ 60℃

Operating Humidity: 10%~90% non-condensing

Storage Temperature: -25℃ ~ 70℃

• Standby: 30~40W

• Full load: 80~110W (for reference only, excluding discrete graphics card power consumption)

Others: 1 * JME header

Intel Core i3-4160 Desktop Processor

✅ 2 Cores / 4 Threads with 3.6 GHz base frequency for smooth daily use

✅ 3MB L3 cache boosts system responsiveness

✅ 54W low TDP, energy-efficient for office & home builds

✅ LGA1150 socket, compatible with H81/B85/Z87 motherboards

✅ Integrated Intel HD 4400 graphics for basic display needs

✅ Supports DDR3 RAM, ideal for budget office & gaming PCs

Note:

(1) This planform needs powerful power supply. Please make sure your power supply can enough to supports this planform.(at least 500w brand power supply).

(2) The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.

(3) All motherboard memory processors are strictly tested before shipment.

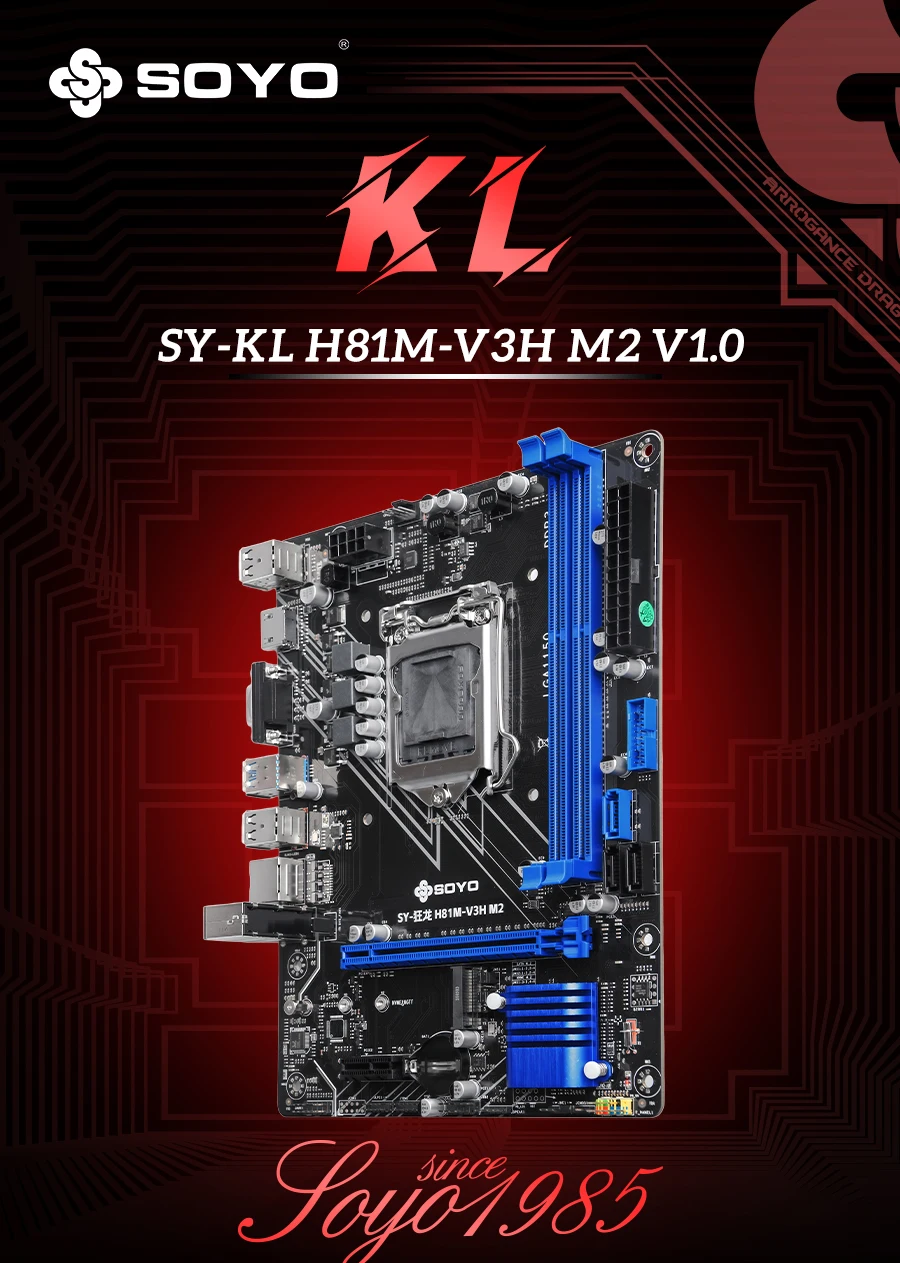

SY-KL H81M-V3H M2 V1.0

Buyer Questions & Answers

1.Does it have TPM 2.0?

Answers：YES,SUPPORT TPM2.0,You should buy14-Pin TPM header (compatible with MSI 14-Pin TPM modules)

2.Does this board work with the E3 Xeon 1270 v3?

Answers：Supports Xeon E3 V3 series (including E3-1270 v3)

Supports: G1820 / E3-1230V3 / i7-4770 / i5-4590, etc.
